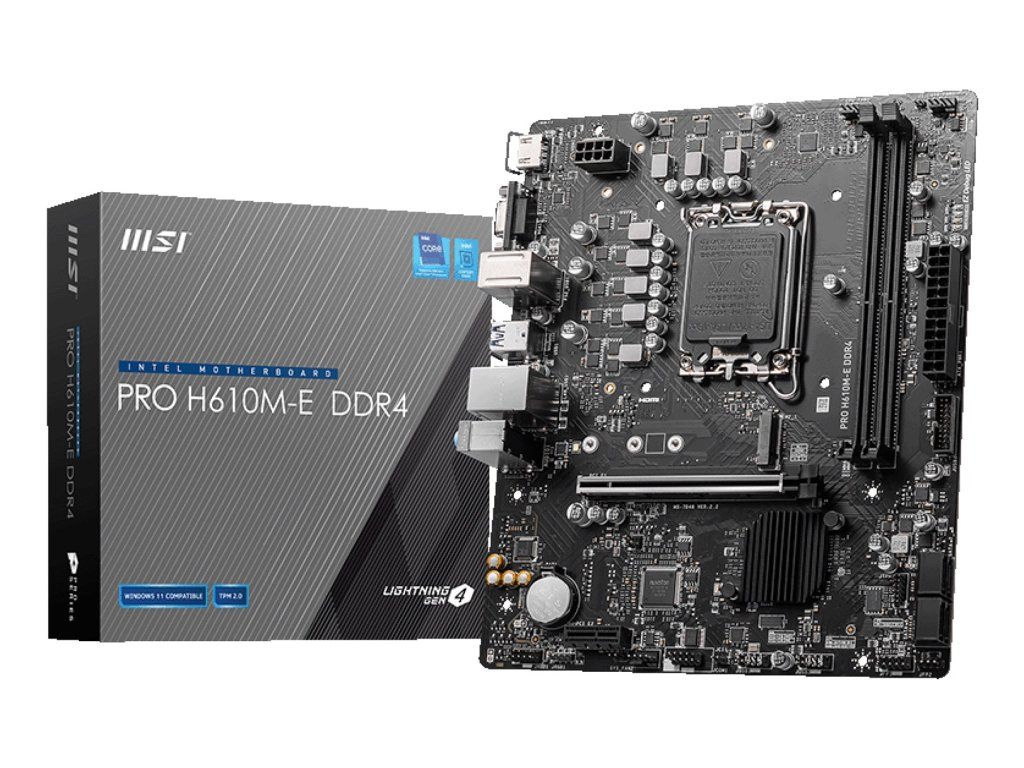

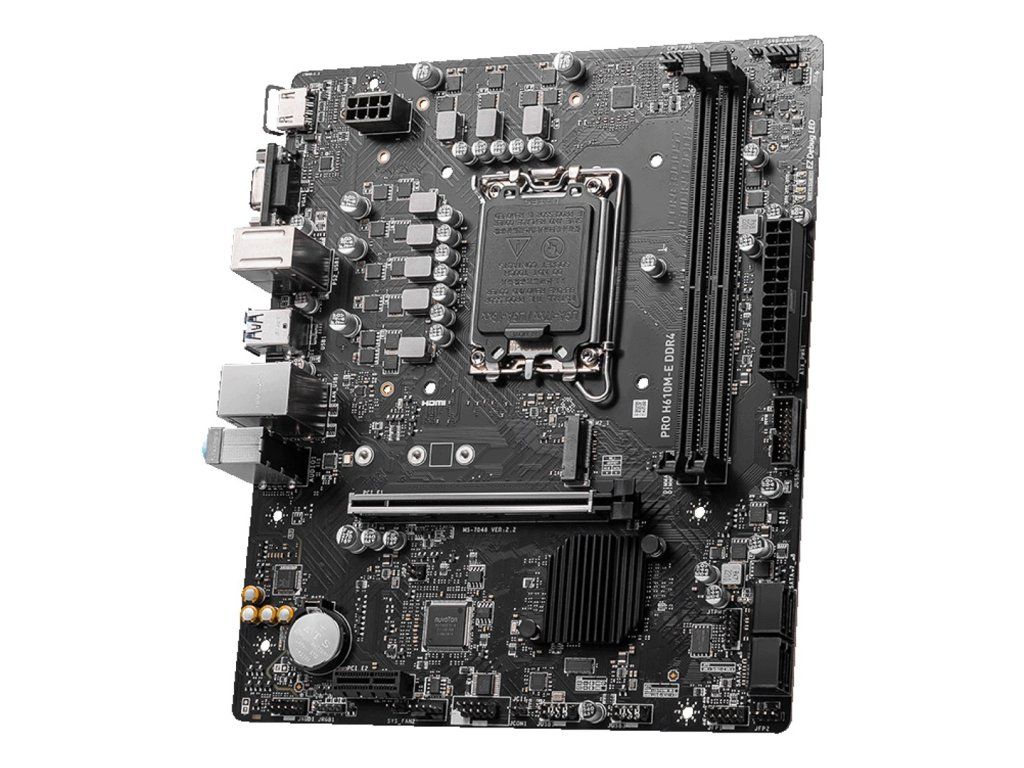

MSI PRO H610M-E DDR4 motherboard Intel H610 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.675 kg |
| EAN: | 4711377002660 |
| Supported processor sockets: | LGA 1700 |
| Compatible processor series: | Intel® Core™ i9 |
| Processor manufacturer: | Intel |
| Maximum number of SMP processors: | 1 |
| Processor socket: | LGA 1700 |
| Parallel processing technology support: | Not supported |
| Motherboard form factor: | micro ATX |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Motherboard chipset: | Intel H610 |
| Audio output channels: | 7.1 channels |
| Supported memory clock speeds: | 2933, 3000, 2133, 3200, 2666 |
| Maximum internal memory: | 64 GB |
| Memory channels: | Dual-channel |
| Number of memory slots: | 2 |
| Supported memory types: | DDR4-SDRAM |
| Memory slots type: | DIMM |
| Supported memory clock speed (max): | 3200 MHz |
| Height: | 65 mm |
| Wi-Fi: | No |
| Top Wi-Fi standard: | Not available |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Number of chassis fan connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 4 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| USB 2.0 connectors: | 4 |
| TPM connector: | Yes |
| Front panel audio connector: | Yes |
| 12V power connector: | Yes |
| Clear CMOS jumper: | Yes |
| BIOS type: | UEFI AMI |
| Drivers included: | Yes |
| Cables included: | SATA |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Number of storage drives supported: | 5 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 4 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Weight: | 760 g |
| Warnings: | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply. |
