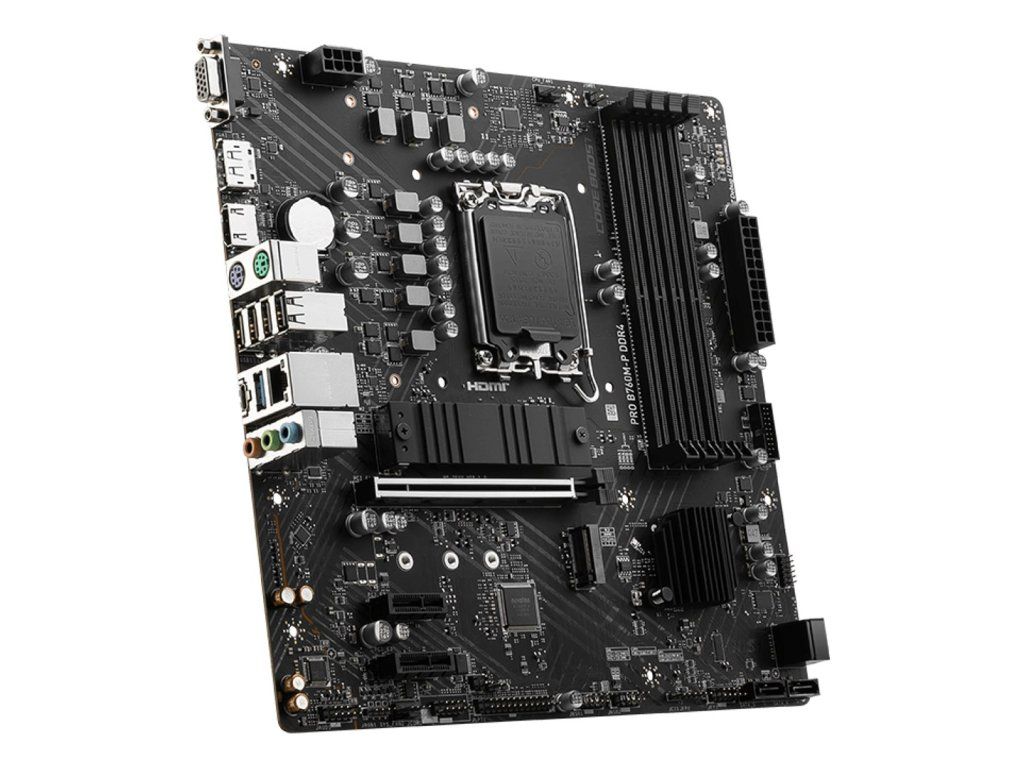

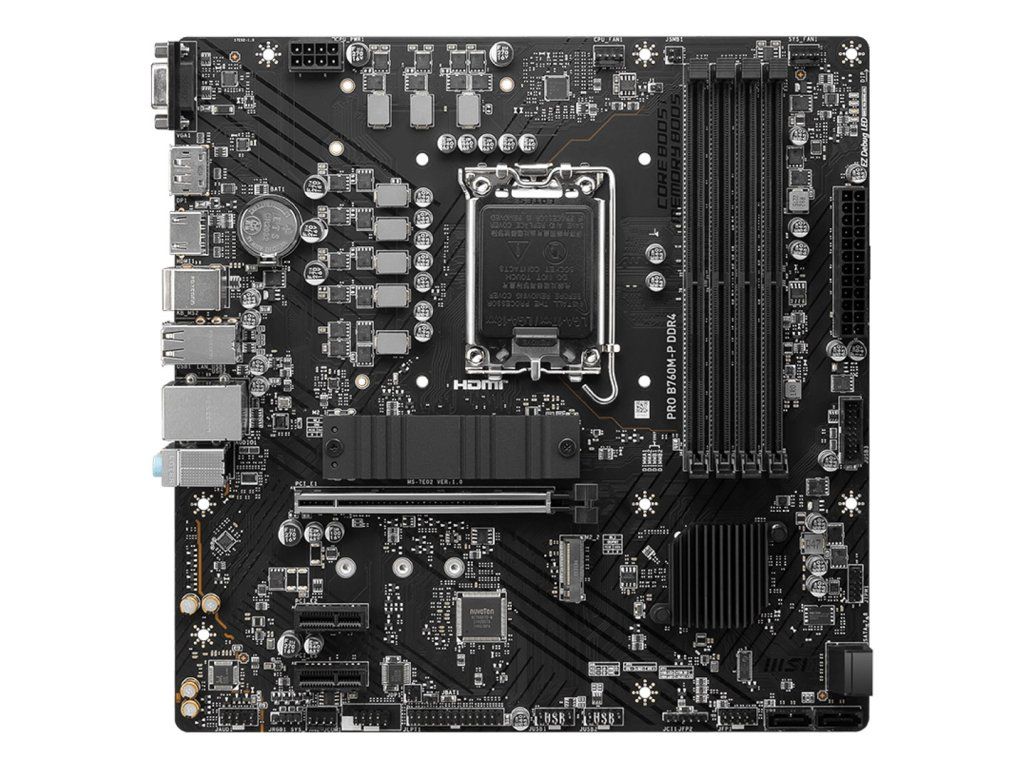

MSI PRO B760M-P DDR4 motherboard Intel B760 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.88 kg |
| EAN: | 4711377030991 |
| Compatible processor series: | Intel® Pentium® Gold, Intel® Celeron® |
| Processor manufacturer: | Intel |
| Maximum number of SMP processors: | 1 |
| Processor socket: | LGA 1700 |
| Supported processor sockets: | LGA 1700 |
| On-board graphics card: | No |
| Motherboard chipset: | Intel B760 |
| Product colour: | Black |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Audio output channels: | 7.1 channels |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 11, Windows 10 |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speeds: | 2933, 3600, 4600, 3733, 4400, 4000, 4800, 3200, 2666, 4266, 3400, 2133, 4200, 3800, 3333, 3466, 2400 |
| Number of memory slots: | 4 |
| Supported memory types: | DDR4-SDRAM |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Supported memory clock speed (max): | 4800 MHz |
| Maximum internal memory: | 128 GB |
| Width: | 243.8 mm |
| Depth: | 243.8 mm |
| Wi-Fi: | No |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard: | Not available |
| Ethernet LAN: | Yes |
| RGB LED pin header: | Yes |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| Number of SATA III connectors: | 4 |
| Front panel connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| USB 2.0 connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| Front panel audio connector: | Yes |
| BIOS type: | UEFI AMI |
| Number of storage drives supported: | 6 |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID levels: | 1, 5, 0, 10 |
| RAID support: | Yes |

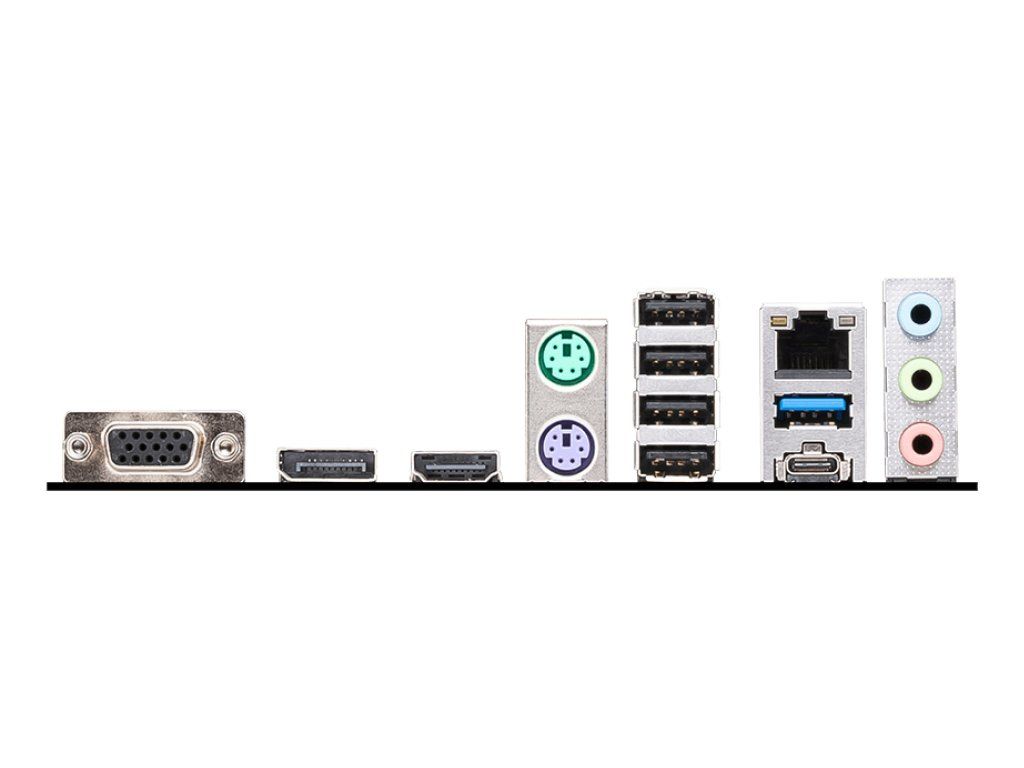

| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI version: | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPort version: | 1.4 |
| USB 2.0 ports quantity: | 4 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 slots: | 2 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Number of M.2 (M) slots: | 2 |
| Warnings: | Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply. |
