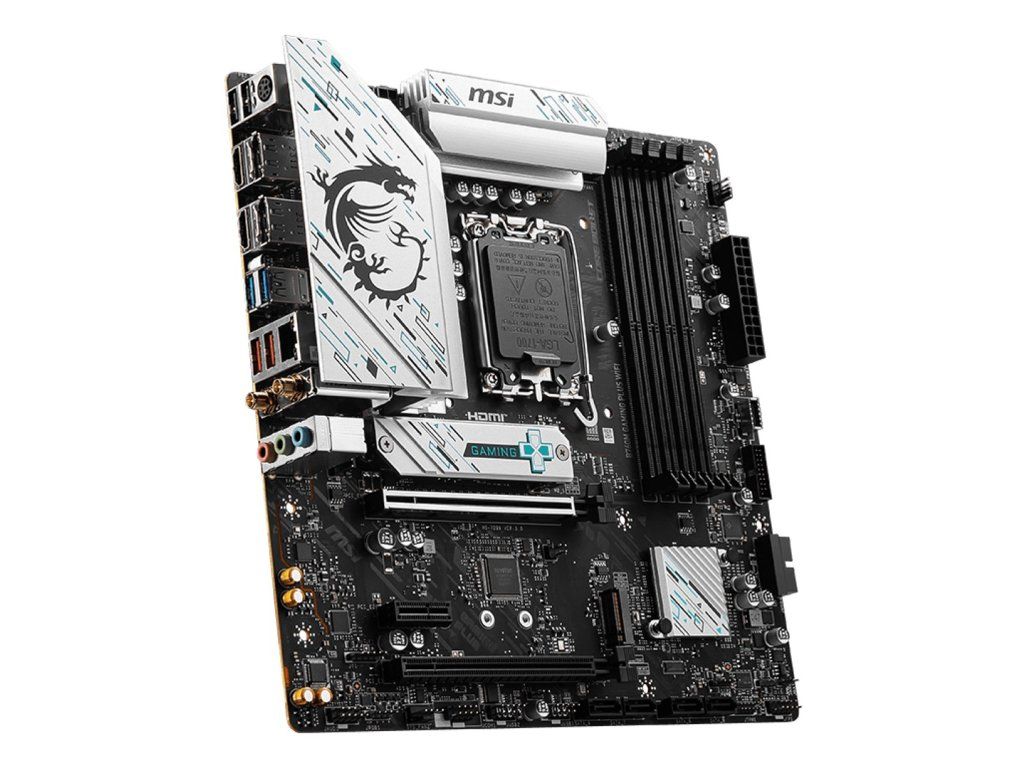

MSI B760M GAMING PLUS WIFI motherboard Intel B760 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.265 kg |
| EAN: | 4711377154017 |
| Processor socket: | LGA 1700 |
| Supported processor sockets: | LGA 1700 |
| Compatible processor series: | Intel® Celeron®, Intel® Pentium® Gold |
| Processor manufacturer: | Intel |
| Maximum number of SMP processors: | 1 |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | Intel B760 |
| Windows operating systems supported: | Windows 11, Windows 10 |
| Power source type: | ATX |
| Supported memory clock speeds: | 6800, 5200, 6200, 5600, 6000, 4800, 5800, 5400, 6400, 5000, 6600 |
| Maximum internal memory: | 192 GB |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speed (max): | 6800 MHz |
| Depth: | 243.8 mm |
| Width: | 243.8 mm |
| Bluetooth: | Yes |
| Wi-Fi standards: | Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11ad, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.3 |
| Ethernet LAN: | Yes |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi: | Yes |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 4 |
| USB 2.0 connectors: | 4 |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Clear CMOS jumper: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID levels: | 10, 0, 1, 5 |
| Number of storage drives supported: | 6 |
| RAID support: | Yes |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 2 |
| HDMI version: | 2.1 |
| HDMI ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| USB 2.0 ports quantity: | 2 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 2 |
| Warnings: | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
