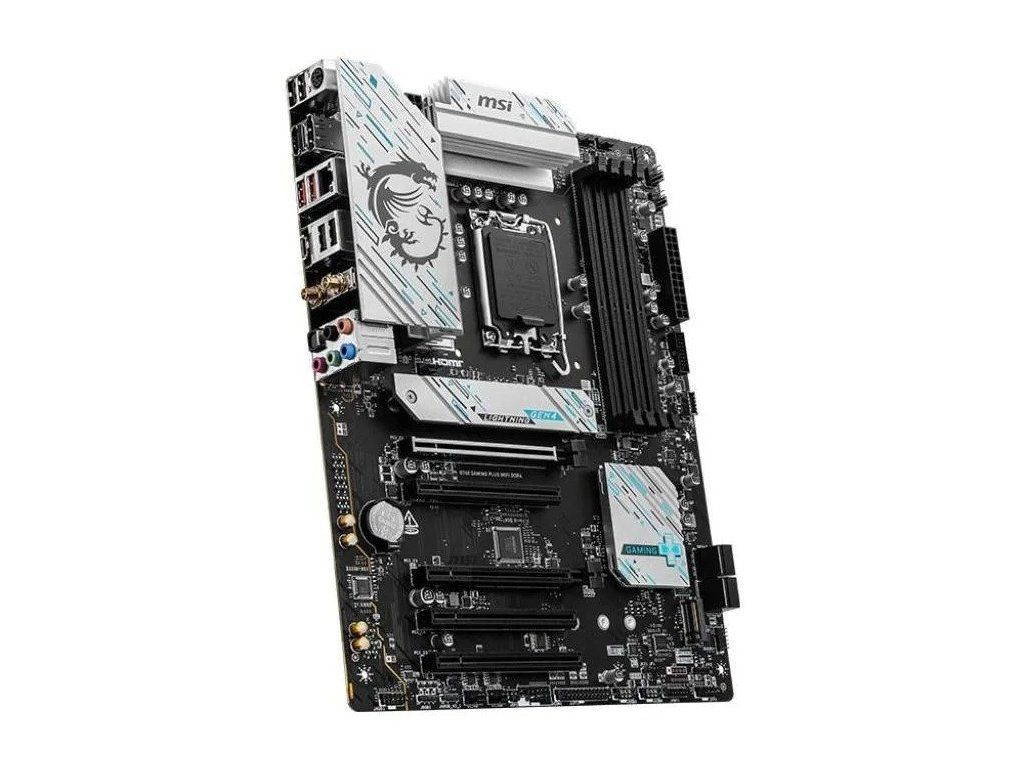

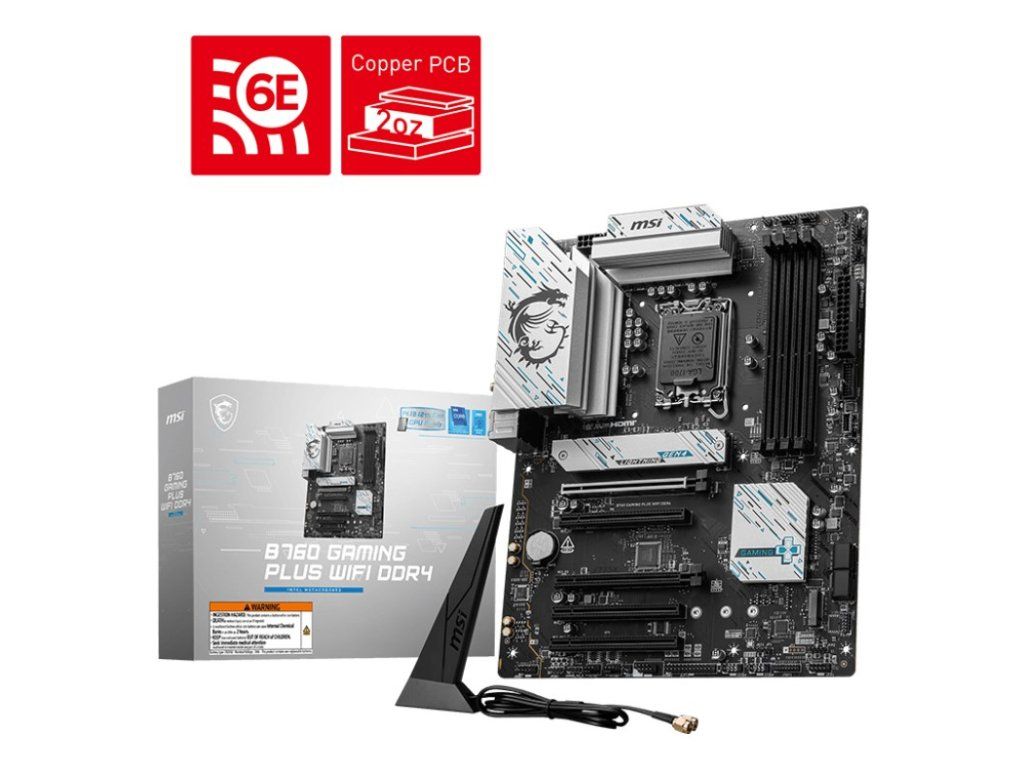

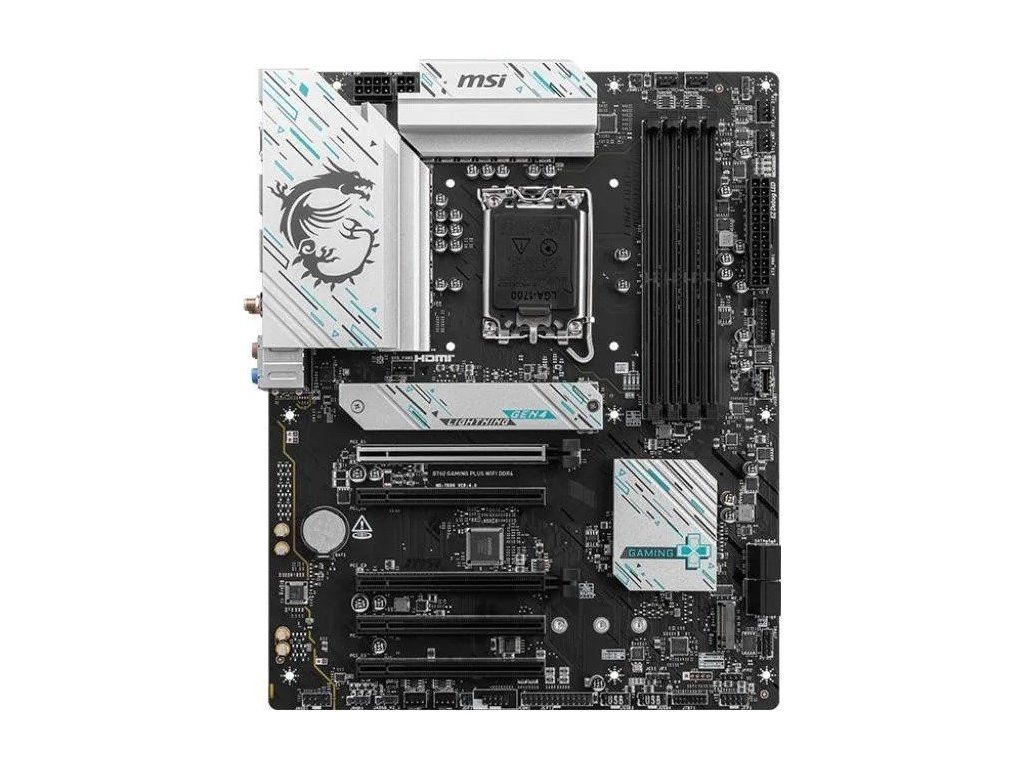

MSI B760 GAMING PLUS WIFI DDR4 motherboard Intel B760 LGA 1700 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.52 kg |
| EAN: | 4711377247900 |
| Maximum internal memory supported by processor: | 128 GB |
| Supported processor sockets: | LGA 1700 |
| Compatible processor series: | Intel® Pentium® Gold, Intel® Celeron® |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Audio chip: | Realtek ALC897 |
| Motherboard form factor: | ATX |
| Motherboard chipset family: | Intel |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | Intel B760 |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Supported memory types: | DDR4-SDRAM |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speeds: | 2400, 5066, 3466, 5200, 5333 MHz, 3400, 3733, 4400 MHz, 5000, 3200 MHz, 2666, 4266, 2133, 4200, 4600, 2933, 3600, 4000, 4800 MHz, 3800, 3333 |
| Maximum internal memory: | 128 GB |
| Depth: | 304.8 mm |
| Width: | 243.8 mm |
| Top Wi-Fi standard: | Wi-Fi 6 (802.11ax) |
| Ethernet LAN: | Yes |
| Bluetooth version: | 5.3 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi standards: | 802.11g, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax) |
| Wi-Fi: | Yes |
| Bluetooth: | Yes |
| LAN controller: | Dragon RTL8125BG |
| TPM connector: | Yes |
| RGB LED pin header: | Yes |
| Total number of SATA connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 3 |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 4 |
| S/PDIF out connector: | Yes |
| BIOS type: | UEFI AMI |
| RAID levels: | 5, 0, 1, 10 |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 6 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA |

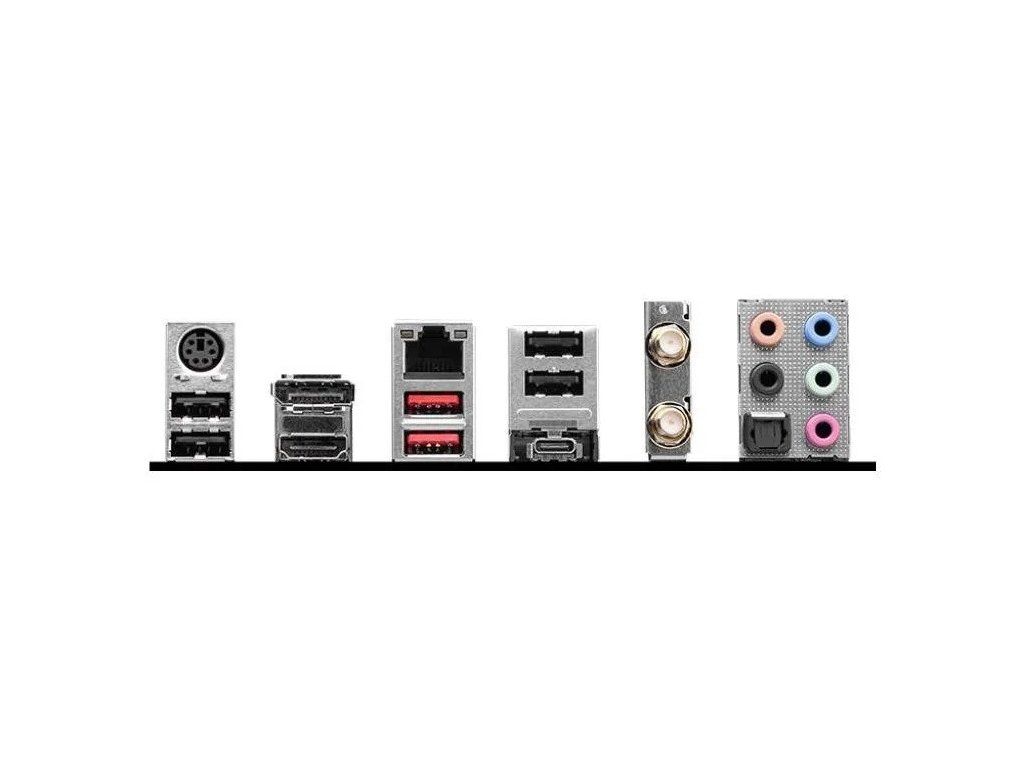

| HDMI version: | 2.1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| S/PDIF out port: | Yes |
| Number of M.2 (M) slots: | 2 |
| PCI Express x1 (Gen 3.x) slots: | 3 |
| PCI Express x1 slots: | 3 |
| PCI Express x16 (Gen 4.x) slots: | 2 |
| PCI Express x16 slots: | 2 |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage. |
