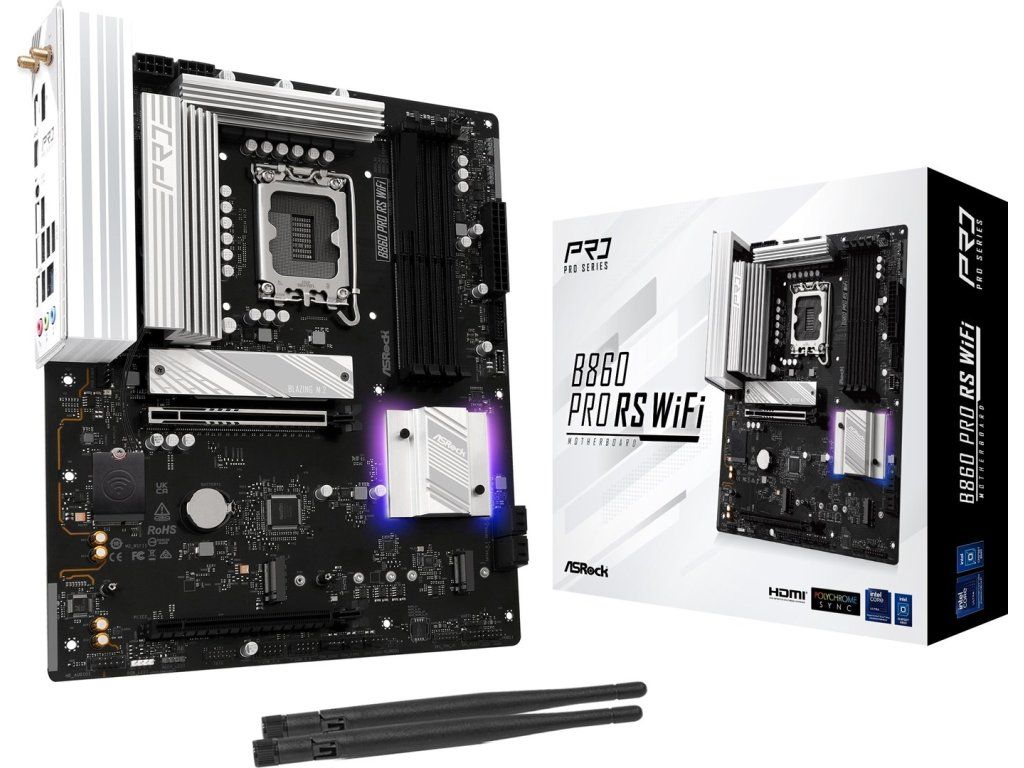

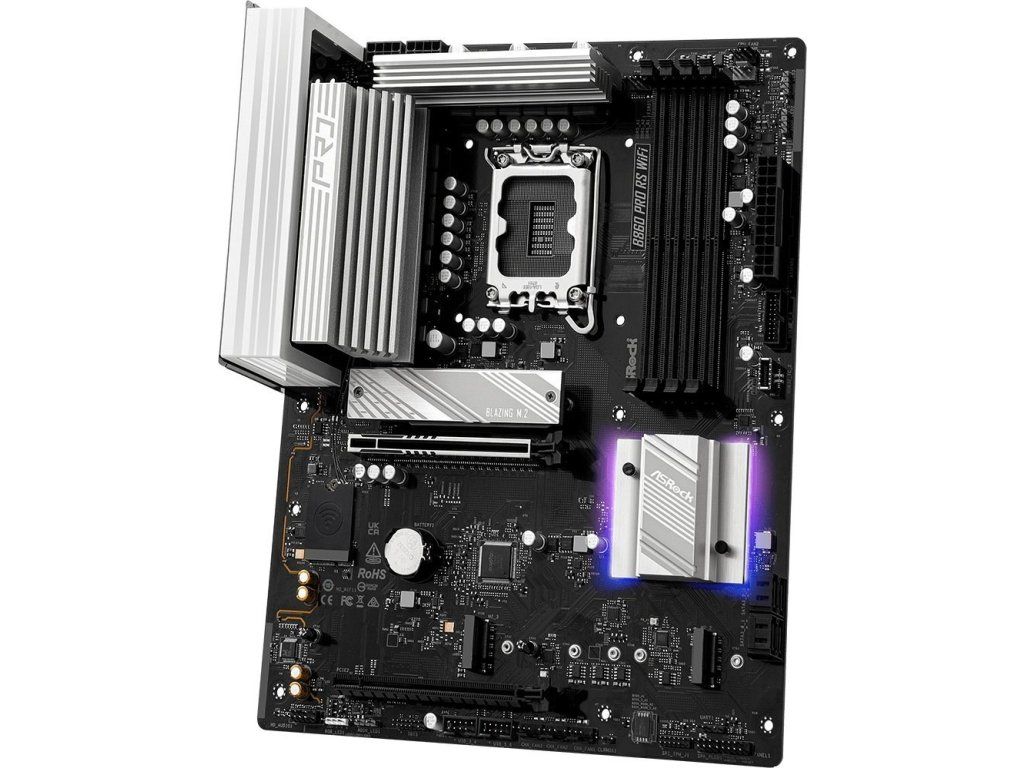

Motherboard - ASRock B860 Pro RS WiFi
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1851 |
|---|---|
| Greutate: | 1.73 kg |
| EAN: | 4711581490239 |
| Maximum number of SMP processors: | 1 |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Processor manufacturer: | Intel |
| Processor socket: | LGA1851 |
| Motherboard chipset family: | Intel |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset: | Intel B860 |
| Motherboard form factor: | ATX |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 11 |
| Operating system architecture: | 64-bit |
| Number of memory slots: | 4 |
| Maximum internal memory: | 256 GB |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Unbuffered memory: | Yes |
| Supported memory clock speed (max): | 8666 MHz |
| Depth: | 244 mm |
| Width: | 305 mm |
| Ethernet LAN: | Yes |
| Bluetooth: | Yes |
| LAN controller: | Dragon RTL8125BG |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11axe) |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | Yes |
| MU-MIMO: | Yes |
| Bluetooth version: | 5.3 |
| Number of chassis fan connectors: | 4 |
| CPU fan connector: | Yes |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Front panel audio connector: | Yes |
| USB 2.0 connectors: | 2 |
| USB Type-C ports quantity: | 1 |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Supported RAID configuration: | 0,1,5,10 |
| RAID rebuild: | Yes |

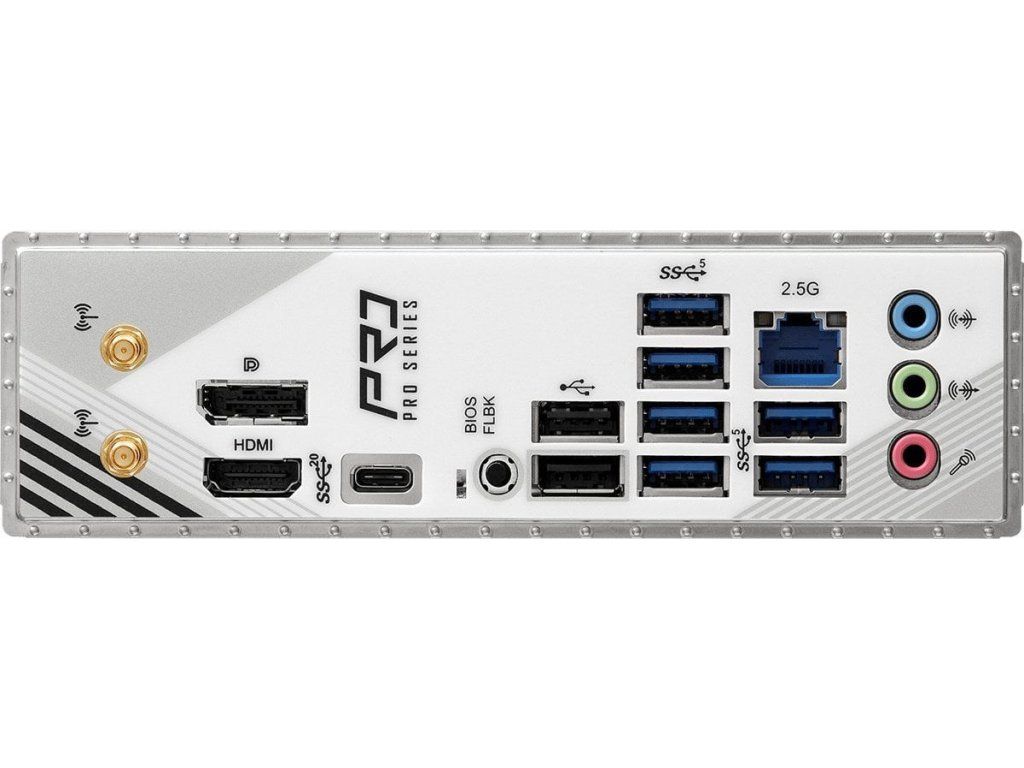

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 6 |
| HDMI ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| Line-in: | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| Number of Wi-Fi antenna ports: | 2 |
| Number of USB 2.0 Type-A ports: | 2 |
| MIC input: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Warnings: | Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty. |
