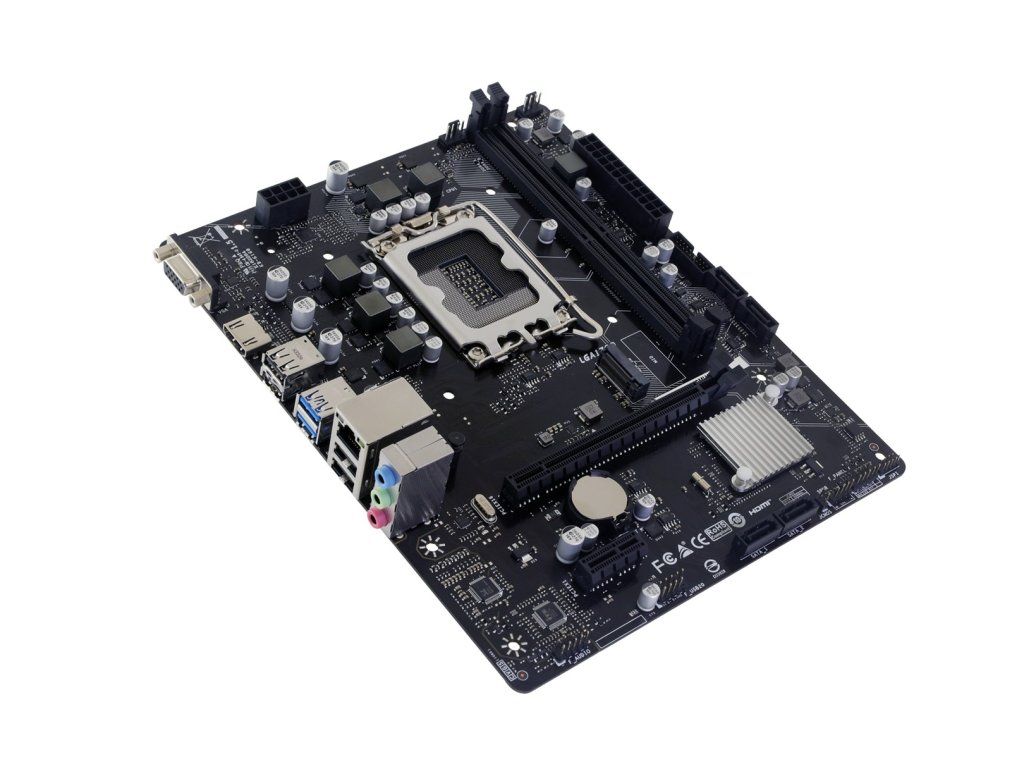

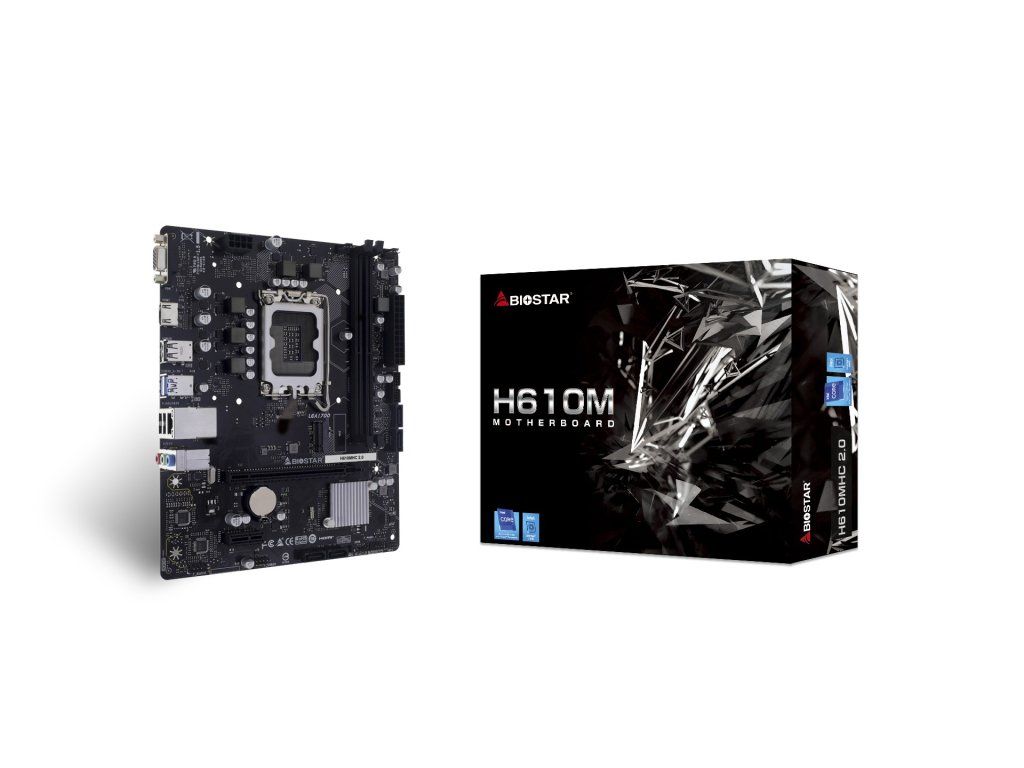

Biostar H610MHC 2.0 motherboard Intel H610 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.7 kg |
| EAN: | 4712960688278 |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i3 12th Gen, Intel® Celeron®, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i7 13th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen |
| Processor manufacturer: | Intel |
| DirectX version: | 12.0 |
| HDCP: | Yes |
| On-board graphics card: | Yes |
| Product colour: | Black |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset: | Intel H610 |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| PC health monitoring: | Fan, Voltage, Temperature |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Supported memory clock speeds: | 1866, 2400, 2133, 3200 MHz, 2666, 2933 |
| Maximum internal memory: | 64 GB |
| Memory channels: | Dual-channel |
| Number of memory slots: | 2 |
| Supported memory types: | DDR4-SDRAM |
| Memory slots type: | DIMM |
| ECC сompatibility: | Non-ECC |
| Depth: | 226 mm |
| Width: | 185 mm |
| LAN controller: | Realtek RTL8111H |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| Ethernet interface type: | Gigabit Ethernet |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Front panel connector: | Yes |
| CPU fan connector: | Yes |
| Number of chassis fan connectors: | 1 |
| Number of EPS power connectors (8-pin): | 1 |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| Drivers included: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| HDMI version: | 1.4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| Microphone in: | Yes |
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| VGA (D-Sub) ports quantity: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
