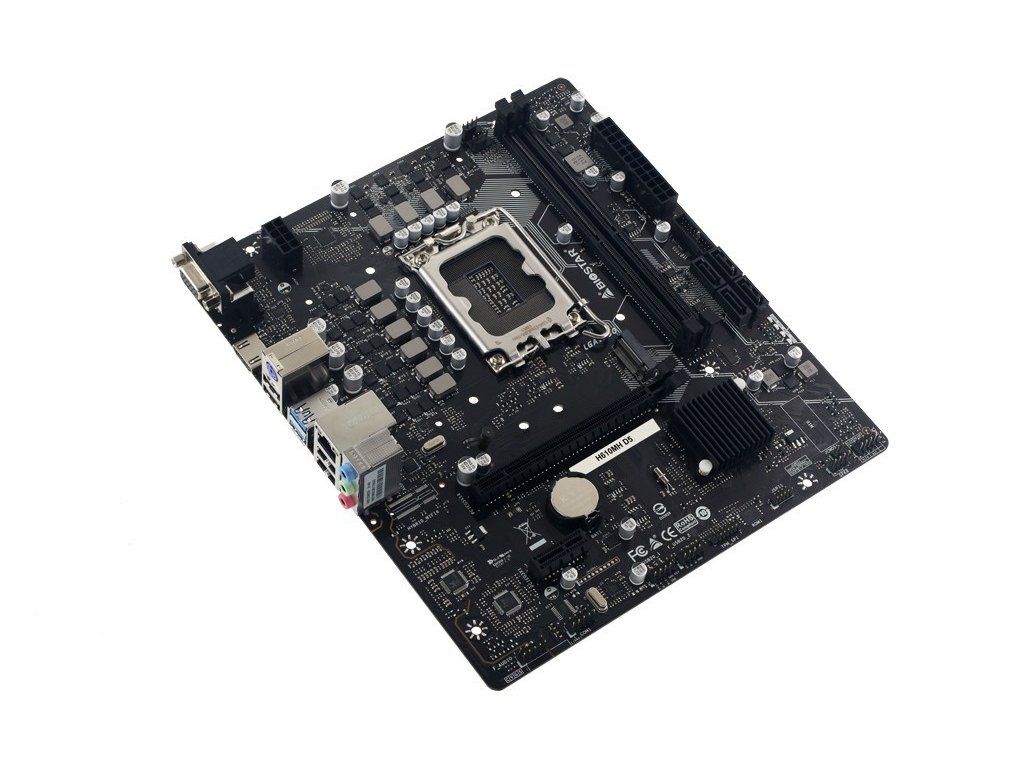

BIOSTAR H610MH D5 motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.71 kg |
| EAN: | 4712960686922 |
| Compatible processor series: | Intel® Core™ i3, Intel® Pentium®, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5, Intel® Celeron® |
| Processor manufacturer: | Intel |
| Maximum number of SMP processors: | 1 |
| Processor socket: | LGA 1700 |
| HDCP: | Yes |
| DirectX version: | 12.0 |
| Audio output channels: | 7.1 channels |
| PC health monitoring: | Fan, CPU, Voltage, Temperature |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset: | Intel H610 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Memory channels: | Dual-channel |
| Supported memory module capacities: | 24GB, 8GB, 48GB, 16GB, 32GB |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Supported memory clock speeds: | 4800 MHz |
| Number of memory slots: | 2 |
| Maximum internal memory: | 96 GB |
| Depth: | 236 mm |
| Width: | 208 mm |
| Ethernet LAN: | Yes |
| LAN controller: | Intel® I219-V |
| Ethernet interface type: | Gigabit Ethernet |
| EPS power connector (8-pin): | Yes |
| TPM connector: | Yes |
| Front panel connector: | Yes |
| Number of SATA III connectors: | 4 |
| Power fan connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Front panel audio connector: | Yes |
| Number of COM connectors: | 1 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 2.0 connectors: | 2 |
| BIOS type: | UEFI |
| Supported storage drive interfaces: | M.2, SATA III |
| PS/2 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 4 |
| VGA (D-Sub) ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Harmonized System (HS) code: | 84733020 |
