Asrock Phantom Gaming B850 Riptide WiFi AMD B850 Socket AM5 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.8 kg |
| EAN: | 4711581490079 |
| Processor socket: | Socket AM5 |
| Processor manufacturer: | AMD |
| Supported processor sockets: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Maximum resolution: | 3840 x 2160 pixels |
| HDCP: | Yes |
| Parallel processing technology support: | Not supported |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD B850 |
| Audio chip: | Realtek ALC4082 |
| Product colour: | Black |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Certification: | FCC, CE, ErP/EuP |
| ECC сompatibility: | ECC & Non-ECC |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 256 GB |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Width: | 305 mm |
| Depth: | 244 mm |
| LAN controller: | Killer E3100G |
| Bluetooth: | Yes |
| Wi-Fi standards: | 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g, Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi: | Yes |
| Bluetooth version: | 5.4 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 2x2 connectors: | 1 |
| CPU fan connector: | Yes |
| Number of EPS power connectors (8-pin): | 2 |
| Number of CPU fan connectors: | 2 |
| Number of RGB LED pin headers: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of SATA III connectors: | 4 |
| Number of water pump connectors: | 1 |
| USB 2.0 connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| Number of chassis fan connectors: | 3 |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| EPS power connector (8-pin): | Yes |
| TPM connector: | Yes |
| BIOS type: | UEFI AMI |
| Antenna included: | Yes |
| Cables included: | SATA |
| Supported storage drive interfaces: | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels: | 1, 0, 10 |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Number of storage drives supported: | 8 |
| USB connector type: | USB Type-C, USB Type-A |

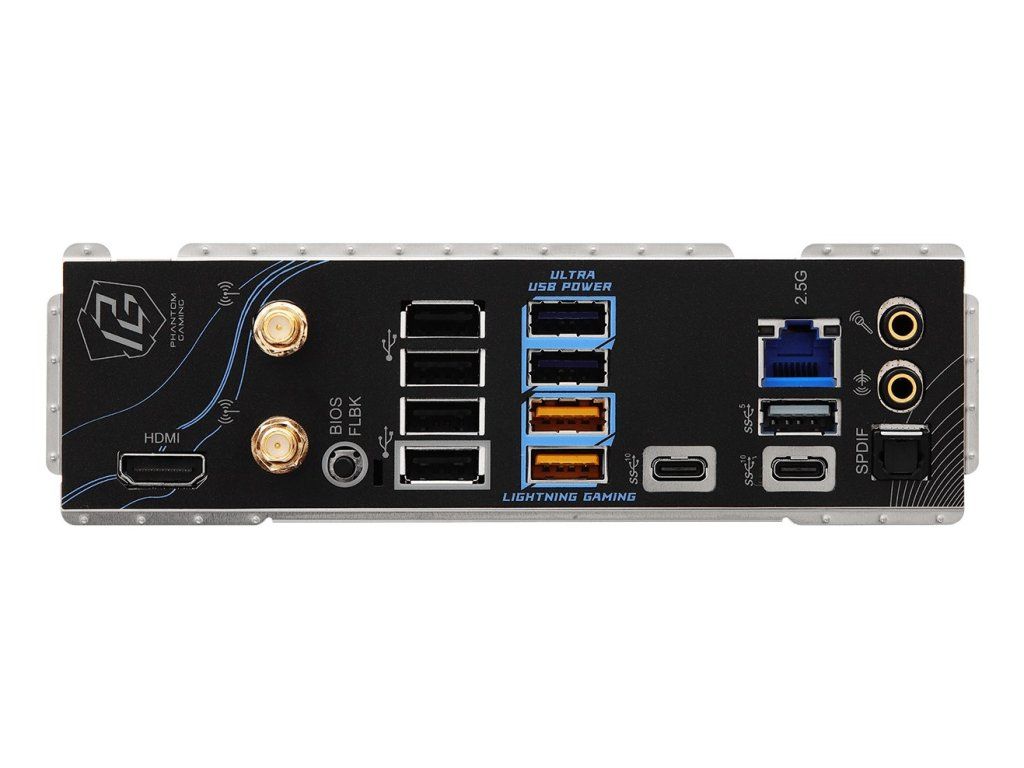

| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 4 |
| S/PDIF out port: | Yes |
| WiFi-AP antenna jack: | 2 |
| Microphone in: | Yes |
| Headphone outputs: | 2 |
| Line-in: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| 4th M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 largest key size: | 2280 |
| 1st M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| Number of M.2 (M) slots: | 4 |
| 2nd M.2 largest key size: | 2280 |
| 4th M.2 largest key size: | 2280 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty. |
