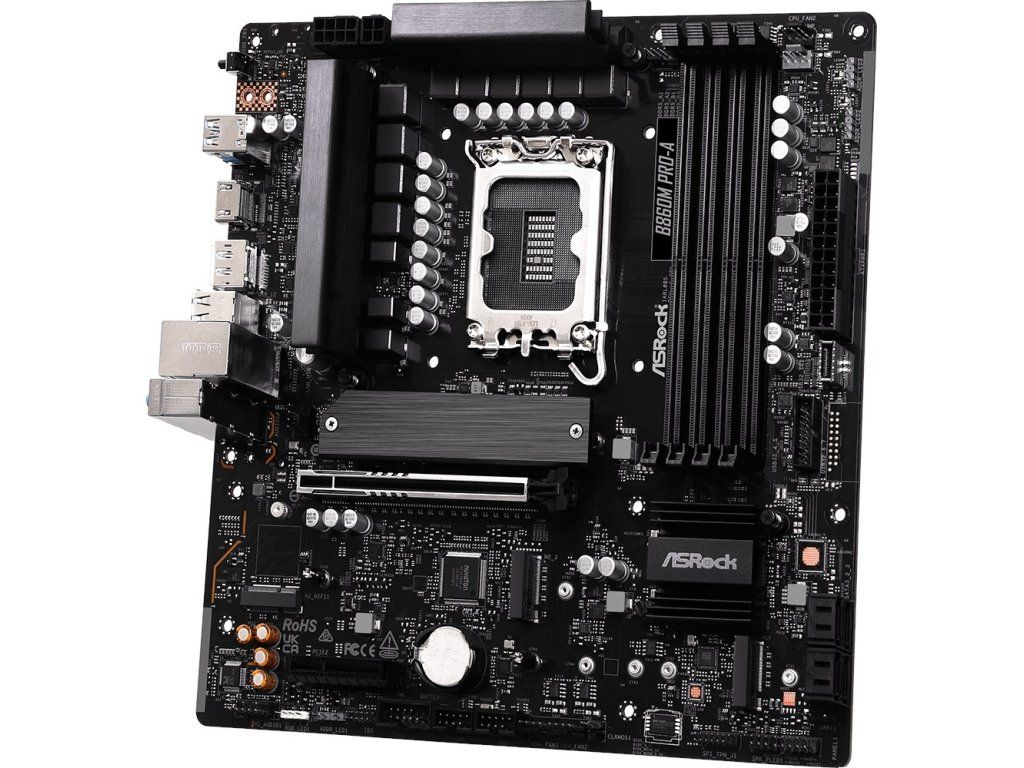

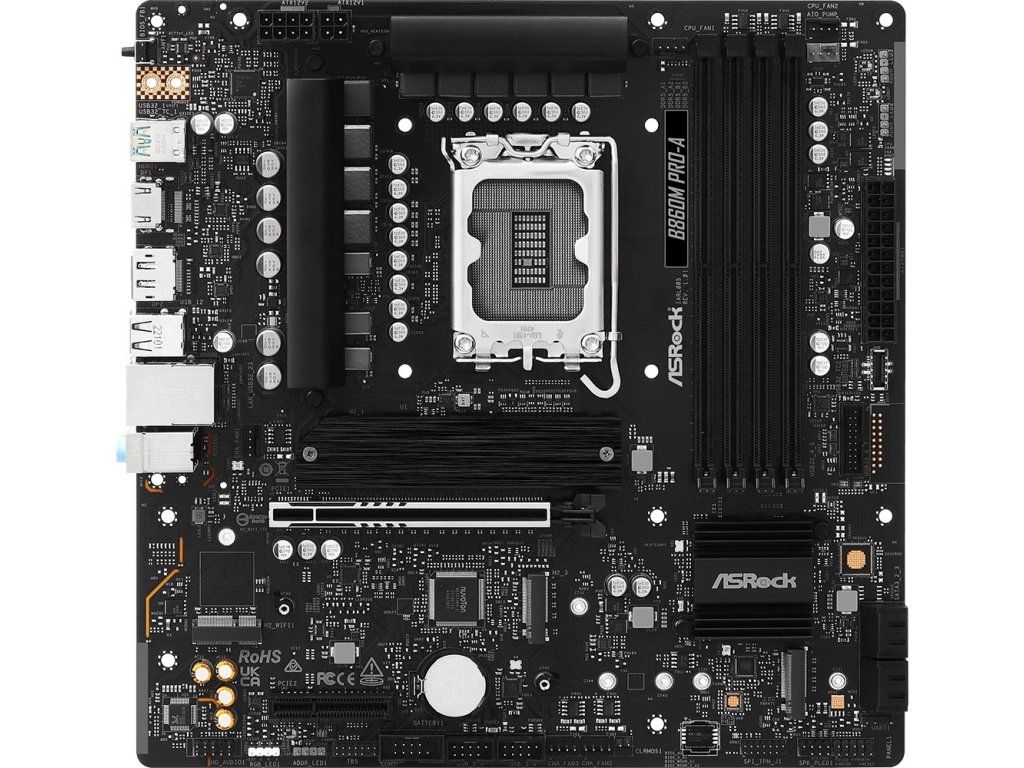

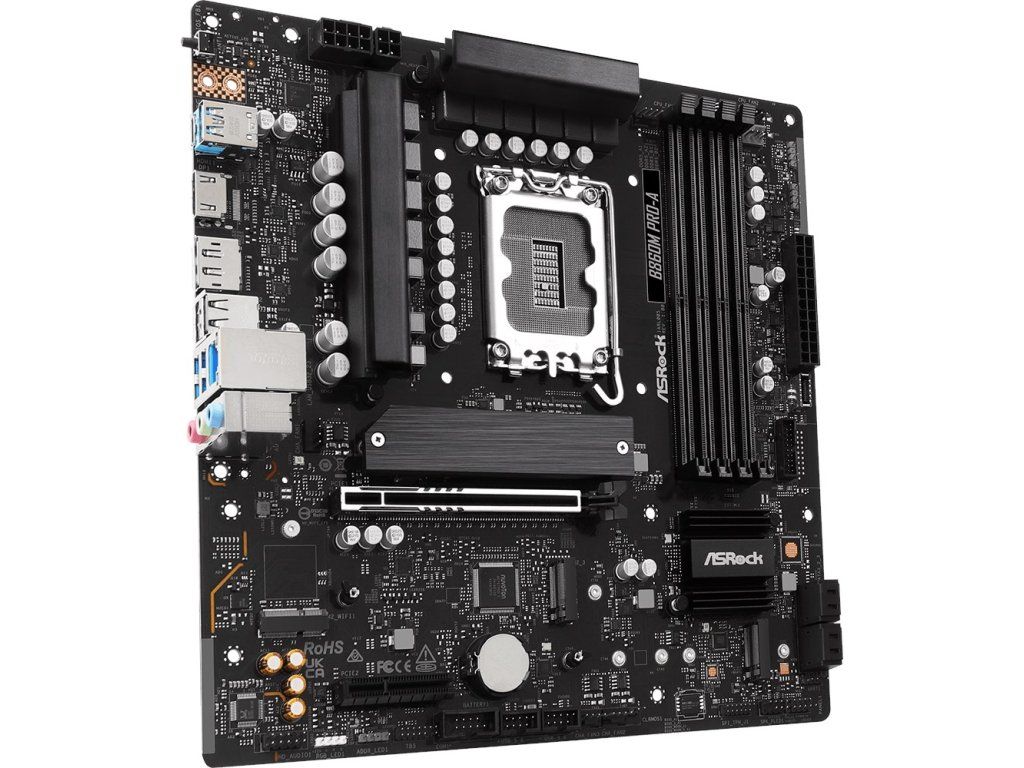

ASRock B860M Pro-A motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1851 |
|---|---|
| Greutate: | 1.2 kg |
| EAN: | 4711581490291 |
| Supported processor sockets: | LGA 1851 |
| Processor socket: | LGA 1851 (Socket V1) |
| Processor manufacturer: | Intel |
| Audio output channels: | 7.1 channels |
| Motherboard form factor: | micro ATX |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Motherboard chipset: | Intel B860 |
| Windows operating systems supported: | Windows 11 x64 |
| Certification: | FCC, CE, ErP/EuP |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| ECC сompatibility: | Non-ECC |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Memory channels: | Dual-channel |
| Width: | 244 mm |
| Depth: | 244 mm |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth: | No |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| LAN controller: | Dragon RTL8125BG |
| Ethernet LAN data rates: | 10,100,1000,2500 Mbit/s |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| Number of CPU fan connectors: | 2 |
| Number of RGB LED pin headers: | 1 |
| Number of water pump connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Number of chassis fan connectors: | 3 |
| USB 2.0 connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| BIOS type: | UEFI AMI |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, SATA III |
| RAID levels: | 5, 0, 1, 10 |
| RAID support: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| Number of USB 3.2 Gen 1 ports: | 3 |
| Flashback BIOS button: | Yes |
| DisplayPorts quantity: | 1 |
| Antennas quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 2 |
| USB connector type: | USB Type-C, USB Type-A |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| 1st M.2 largest key size: | 2280 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 3 |
| Warnings: | In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage. |
