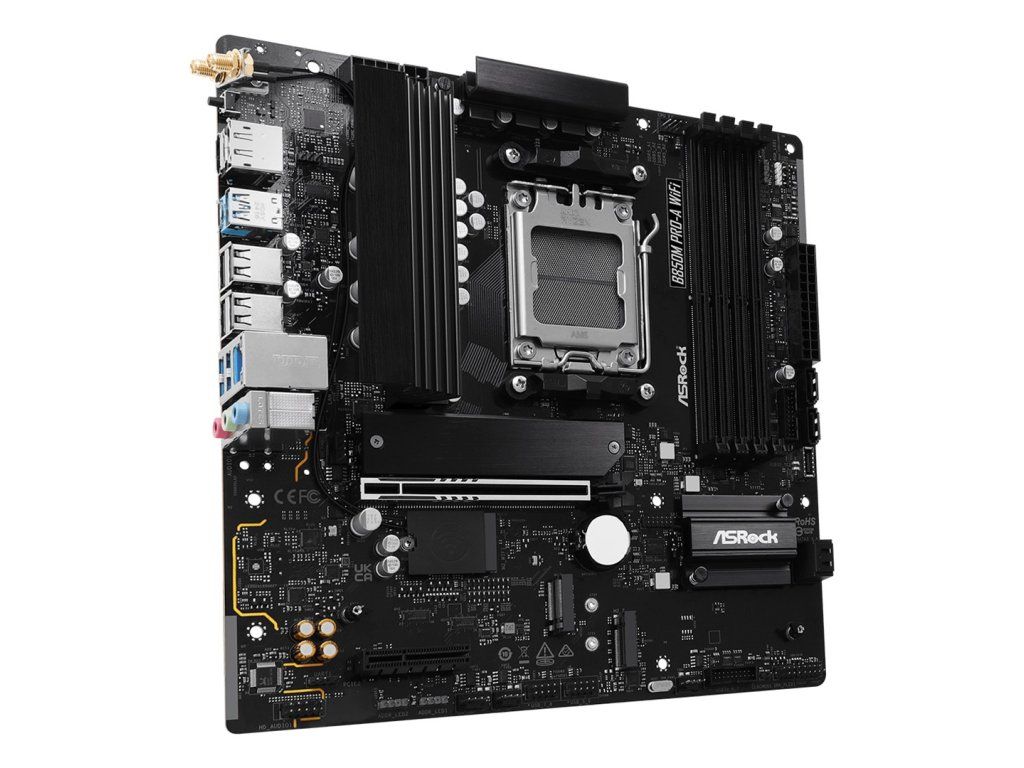

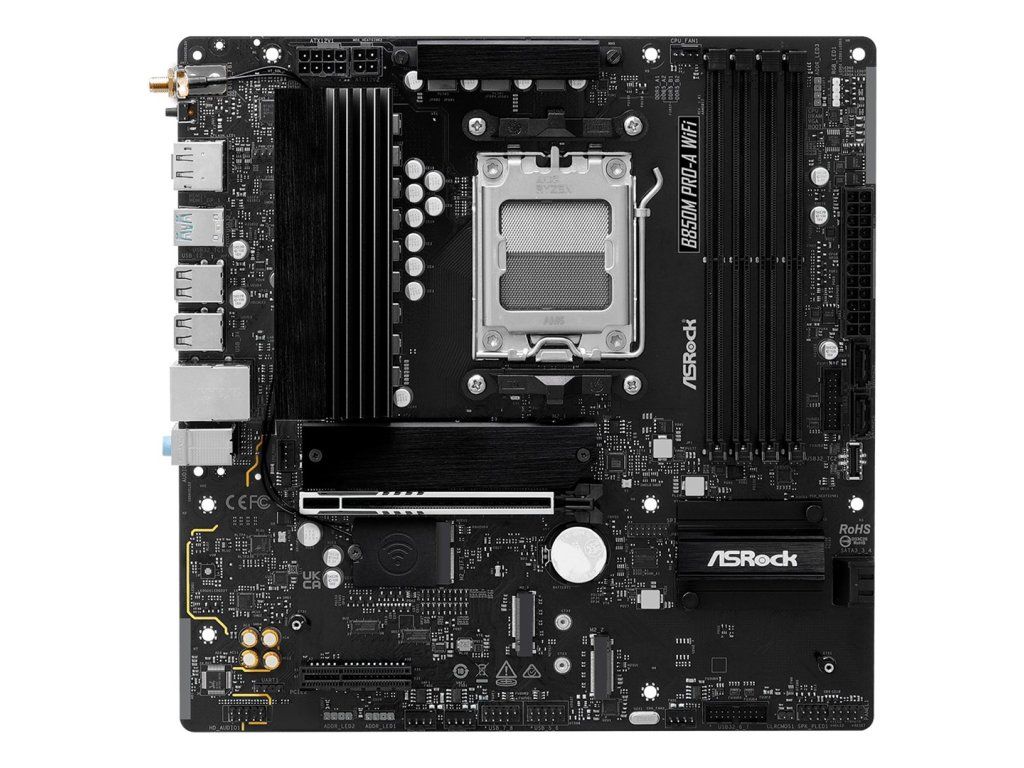

Asrock B850M Pro-A WiFi AMD B850 Socket AM5 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.245 kg |
| EAN: | 4711581490376 |
| Supported processor sockets: | Socket AM5 |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer: | AMD |
| Parallel processing technology support: | Not supported |
| HDCP: | Yes |
| Maximum resolution: | 3840 x 2160 pixels |
| Product colour: | Black |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset: | AMD B850 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Audio output channels: | 7.1 channels |
| Certification: | FCC, CE, ErP/EuP |
| Maximum internal memory: | 256 GB |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Unbuffered memory: | Yes |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC & Non-ECC |
| Number of memory slots: | 4 |
| Depth: | 244 mm |
| Width: | 244 mm |
| Bluetooth: | Yes |
| LAN controller: | Dragon RTL8125BG |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11g, 802.11b |
| Ethernet LAN: | Yes |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.2 |
| Number of SATA III connectors: | 4 |
| Number of EPS power connectors (8-pin): | 1 |
| USB 2.0 connectors: | 2 |
| EPS power connector (8-pin): | Yes |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| RGB LED pin header: | Yes |
| 12V power connector: | Yes |
| Number of chassis fan connectors: | 3 |
| ATX Power connector (24-pin): | Yes |
| Number of CPU fan connectors: | 2 |
| Number of RGB LED pin headers: | 1 |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 3 |
| BIOS type: | UEFI AMI |
| Antenna included: | Yes |
| Cables included: | SATA |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID support: | Yes |
| RAID levels: | 1, 0, 10 |
| Number of storage drives supported: | 7 |
| WiFi-AP antenna jack: | 2 |
| Microphone in: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB connector type: | USB Type-C, USB Type-A |
| HDMI ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| DisplayPort version: | 1.4 |
| HDMI version: | 2.1 |
| Headphone outputs: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Line-in: | Yes |
| USB 2.0 ports quantity: | 4 |
| PCI Express x4 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| 1st M.2 largest key size: | 2280 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| Number of M.2 (M) slots: | 3 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 largest key size: | 2280 |
| 2nd M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
