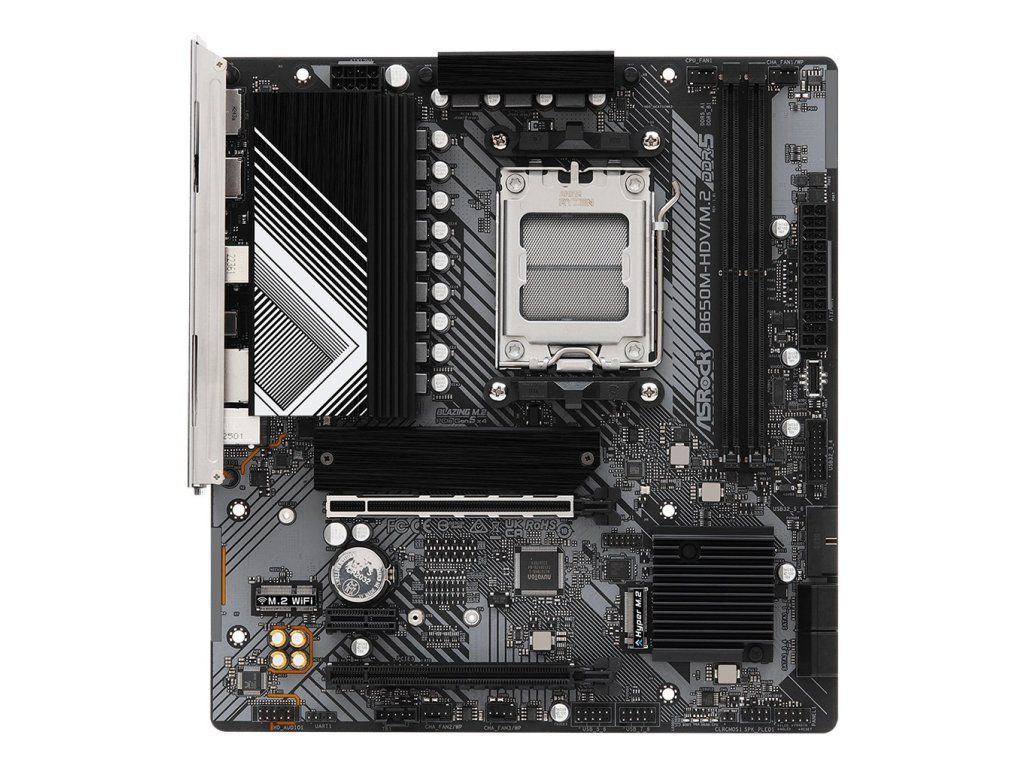

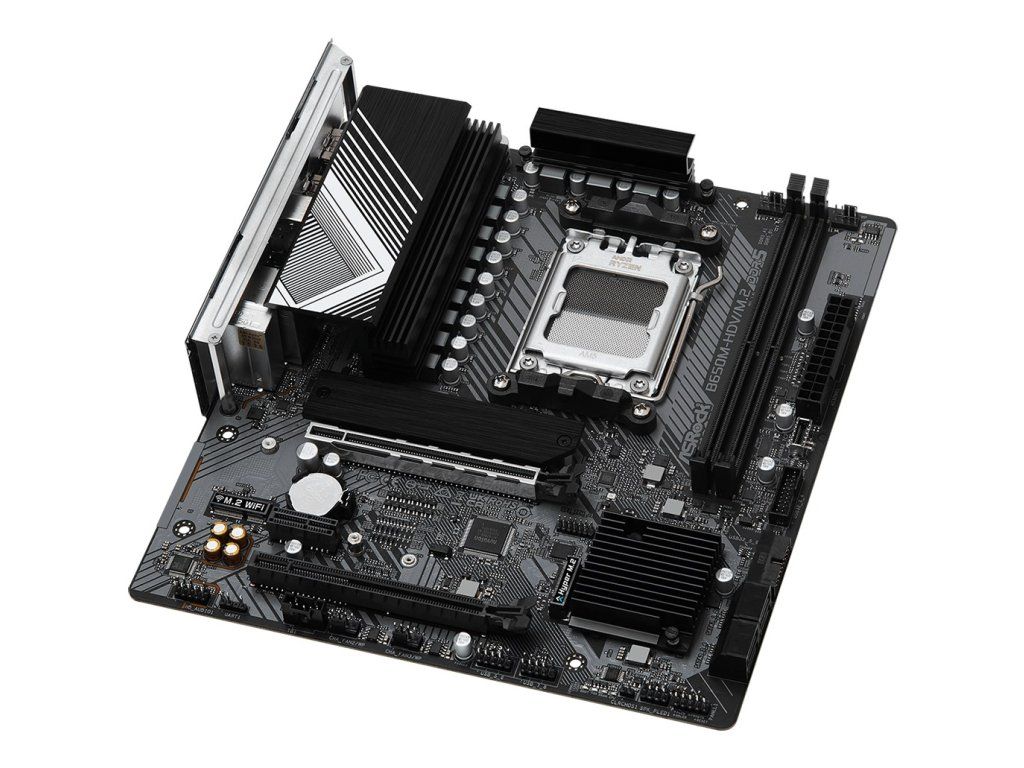

Asrock B650M-HDV/M.2 AMD B650 Socket AM5 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.21 kg |
| EAN: | 4710483942693 |
| Compatible processor series: | AMD Ryzen™ 7 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD B650 |
| Audio chip: | Realtek ALC897 |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Maximum internal memory: | 64 GB |
| Unbuffered memory: | Yes |
| Number of memory slots: | 2 |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| ECC сompatibility: | Non-ECC |
| Width: | 244 mm |
| Depth: | 226 mm |
| LAN controller: | Realtek RTL8125-BG |
| Wi-Fi: | No |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Thunderbolt headers: | 1 |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Front panel audio connector: | Yes |
| EPS power connector (8-pin): | Yes |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| Number of SATA III connectors: | 4 |
| BIOS type: | EFI AMI |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 1, 0, 10 |
| Number of storage drives supported: | 6 |
| RAID support: | Yes |
| DisplayPorts quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| DisplayPort version: | 1.4 |
| USB 2.0 ports quantity: | 4 |
| Microphone in: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| Line-in: | Yes |
| Number of M.2 (M) slots: | 2 |
| PCI Express x1 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
