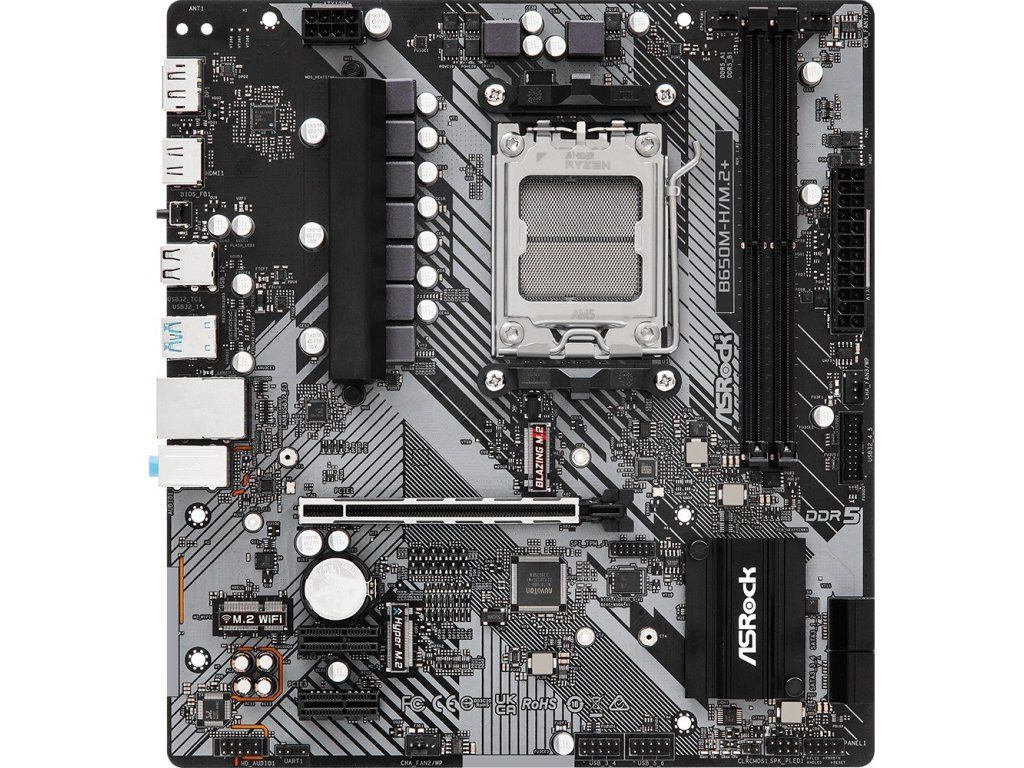

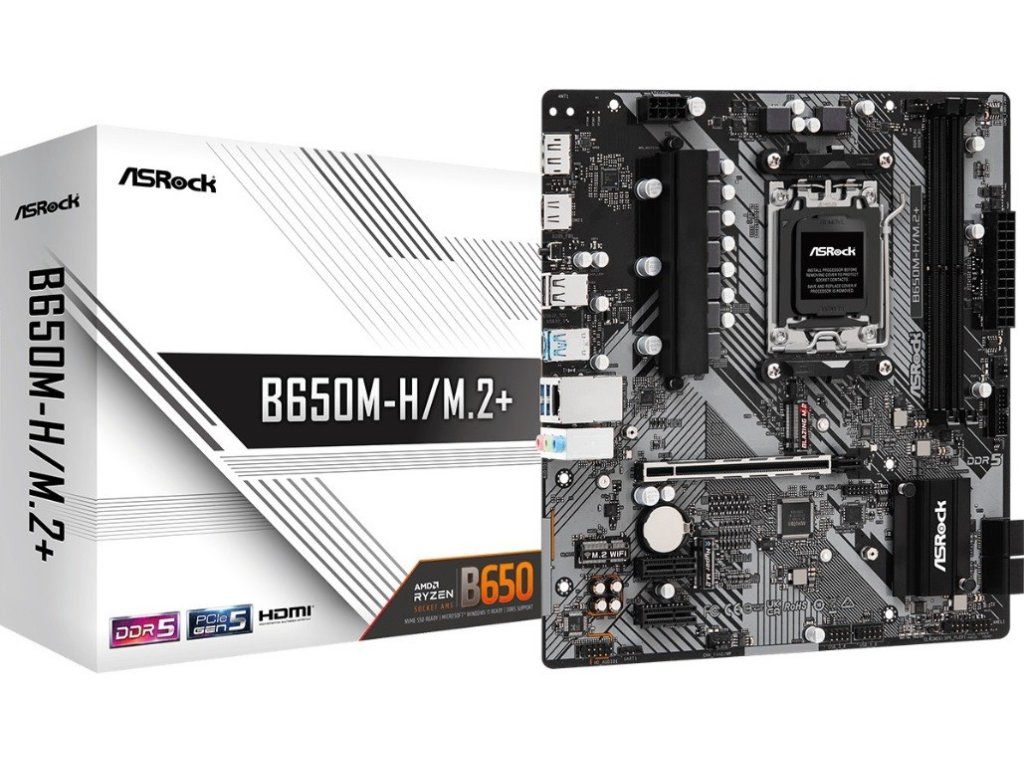

ASRock B650M-H/M.2+ motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 0.985 kg |
| EAN: | 4710483943768 |
| Compatible processor series: | AMD Ryzen™ 7 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | AMD |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD B650 |
| Motherboard form factor: | micro ATX |
| Number of memory slots: | 2 |
| Maximum internal memory: | 96 GB |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Unbuffered memory: | Yes |
| Width: | 244 mm |
| Depth: | 226 mm |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| LAN controller: | Realtek 8111H |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| USB 2.0 connectors: | 2 |
| BIOS type: | UEFI AMI |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 0, 10, 1 |

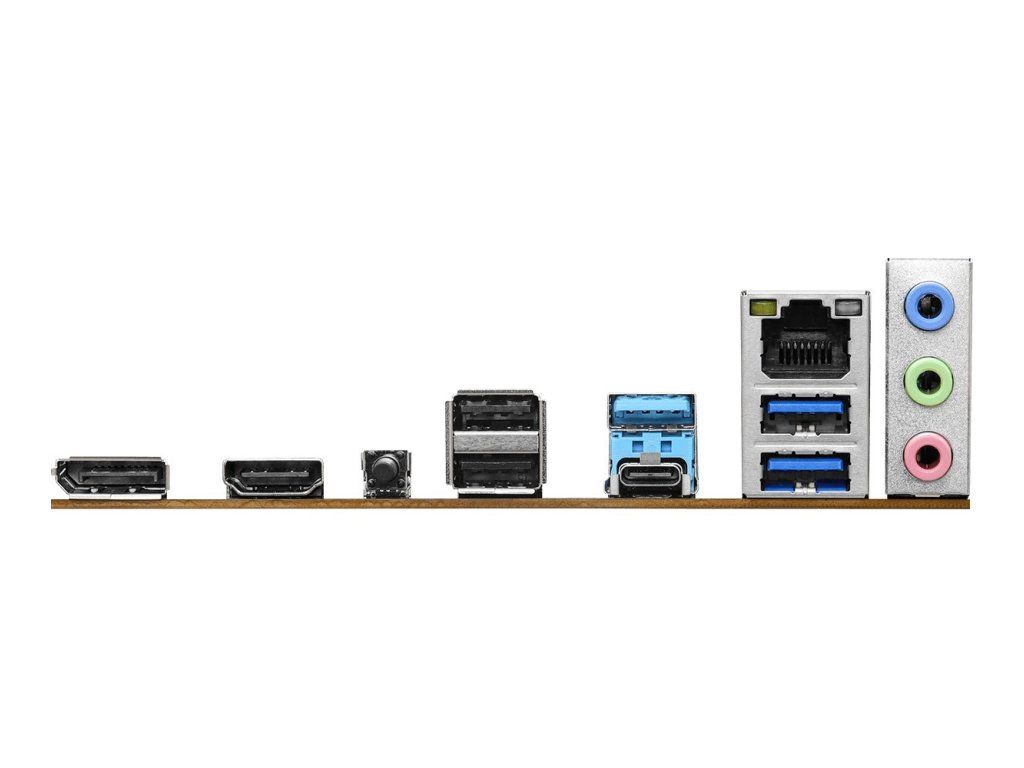

| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| Line-in: | Yes |
| Microphone in: | Yes |
| HDMI ports quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| Back-to-BIOS button: | Yes |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 4.x) slots: | 1 |
