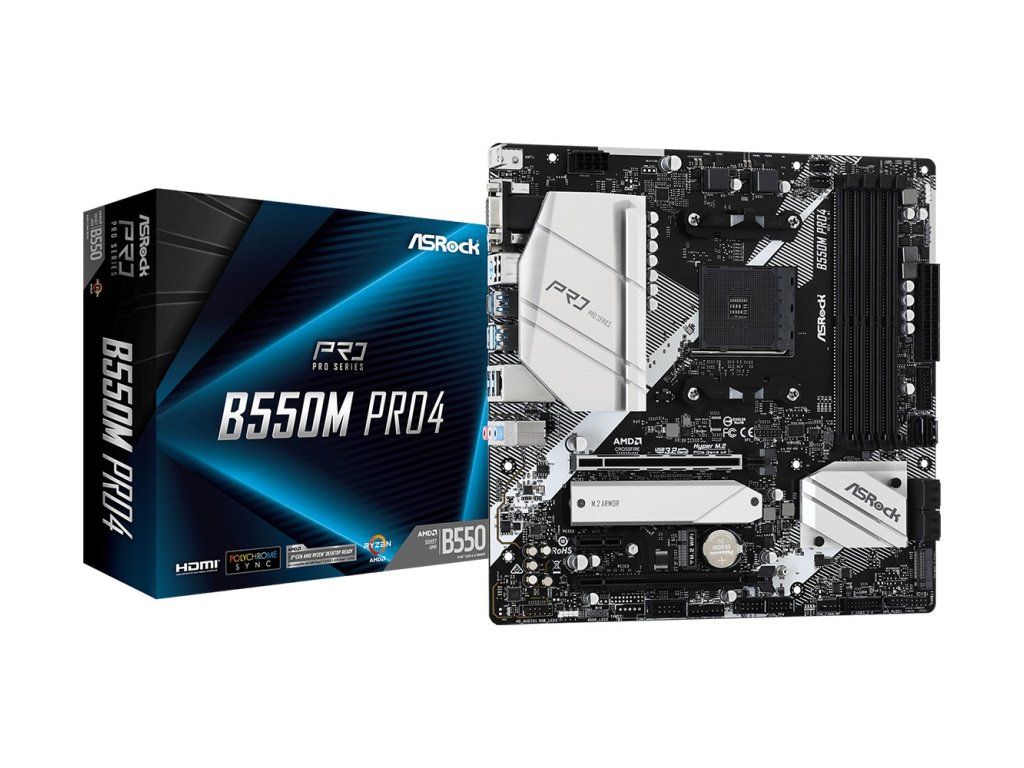

Asrock B550M Pro4 Socket AM4 micro ATX AMD B550
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM4 |
|---|---|
| Greutate: | 1.35 kg |
| EAN: | 4710483931598 |
| Compatible processor series: | 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 7 |
| Processor manufacturer: | AMD |
| Maximum number of SMP processors: | 1 |
| Processor socket: | Socket AM4 |
| Parallel processing technology support: | Not supported |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD B550 |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | AMD |
| Audio chip: | Realtek ALC1200 |
| Supported memory clock speeds: | 2933, 3600, 3800, 3466, 2400, 4133, 4000, 3200 MHz, 2133, 4266, 2667, 4466, 3866, 3733, 4400 MHz, 4200, 4333, 4533 MHz |
| Unbuffered memory: | Yes |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR4-SDRAM |
| Maximum internal memory: | 128 GB |
| Number of memory slots: | 4 |
| Width: | 244 mm |
| Depth: | 244 mm |
| LAN controller: | Realtek RTL8111H |
| Wake-on-LAN ready: | Yes |
| Wi-Fi: | No |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN: | Yes |
| ATX Power connector (24-pin): | Yes |
| USB 2.0 connectors: | 2 |
| EPS power connector (8-pin): | Yes |
| RGB LED pin header: | Yes |
| Number of SATA II connectors: | 6 |
| TPM connector: | Yes |
| Number of COM connectors: | 1 |
| Front panel connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| BIOS type: | UEFI AMI |
| Drivers included: | Yes |
| Supported storage drive interfaces: | M.2, Serial ATA III |
| USB 2.0 ports quantity: | 2 |
| PS/2 ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
