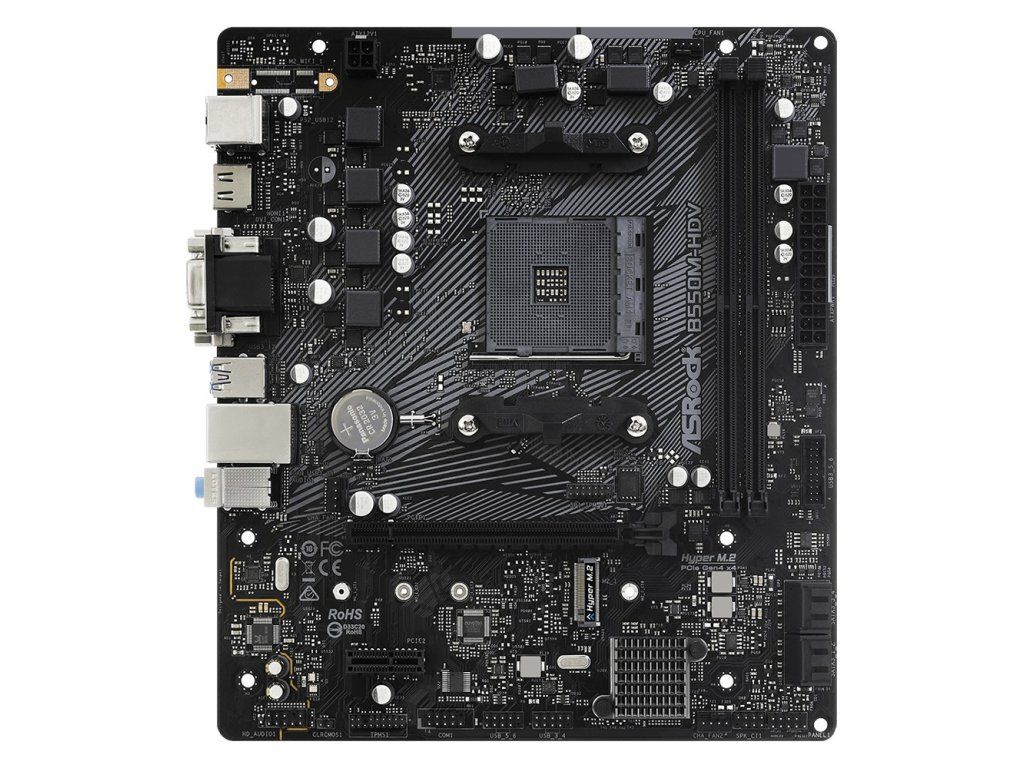

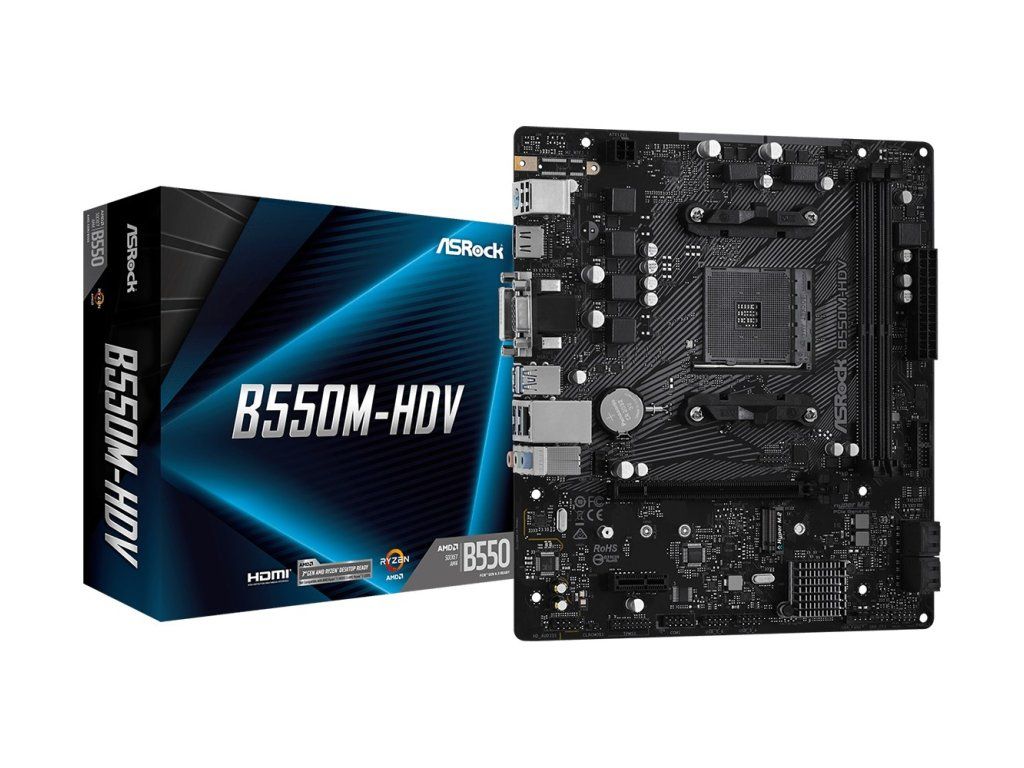

Asrock B550M-HDV Socket AM4 micro ATX AMD B550
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM4 |
|---|---|
| Greutate: | 0.844 kg |
| EAN: | 4710483931635 |
| Maximum number of SMP processors: | 1 |
| Compatible processor series: | 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 3 |
| Processor socket: | Socket AM4 |
| Processor manufacturer: | AMD |
| HDCP: | Yes |
| Graphics card: | Radeon Vega |
| On-board graphics card: | Yes |
| Graphics card family: | AMD |
| DirectX version: | 12.0 |
| Audio chip: | Realtek ALC887 |
| Motherboard chipset: | AMD B550 |
| Audio output channels: | 7.1 channels |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | AMD |
| Supported memory clock speeds: | 4133, 3200, 2933, 3600, 2133, 4000, 4200, 4333, 4600, 4533, 2667, 3733, 4400, 4666, 4266, 3800, 4466, 3466, 3866, 2400 |
| Supported memory types: | DDR4-SDRAM |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Maximum internal memory: | 64 GB |
| Number of memory slots: | 2 |
| Unbuffered memory: | Yes |
| Depth: | 201 mm |
| Width: | 230 mm |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Wake-on-LAN ready: | Yes |
| LAN controller: | Realtek RTL8111H |
| Wi-Fi: | No |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| Front panel audio connector: | Yes |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| Number of chassis fan connectors: | 2 |
| USB 2.0 connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| BIOS type: | UEFI AMI |
| Drivers included: | Yes |
| Supported storage drive interfaces: | M.2, Serial ATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| DVI-D ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| PS/2 ports quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
