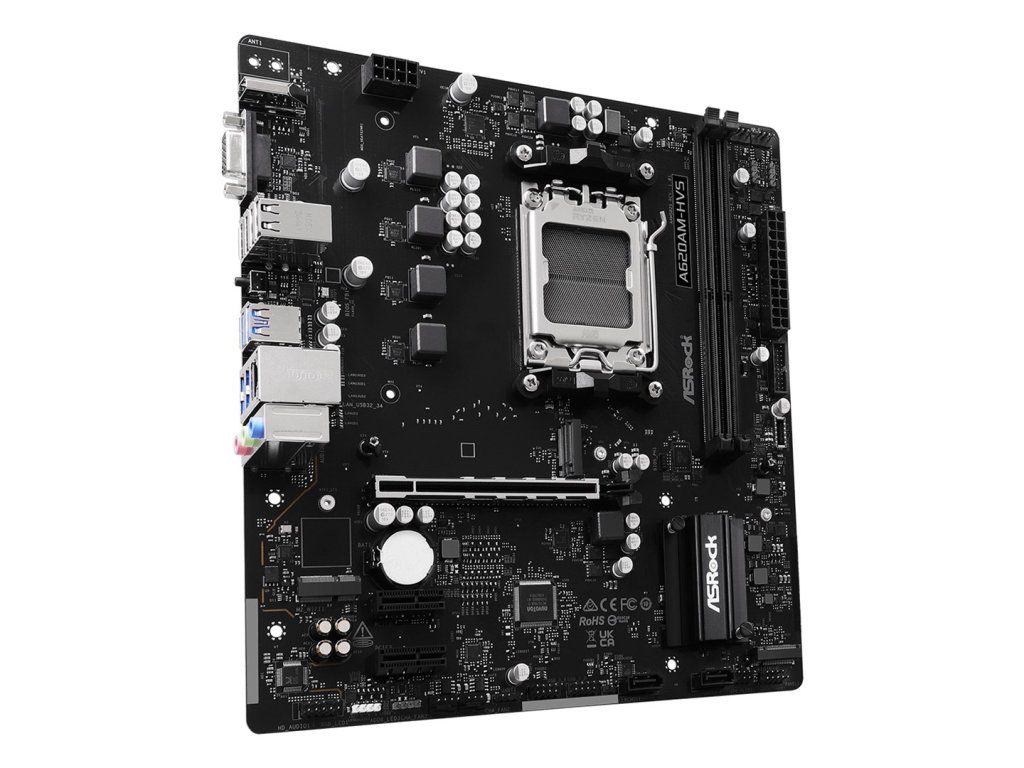

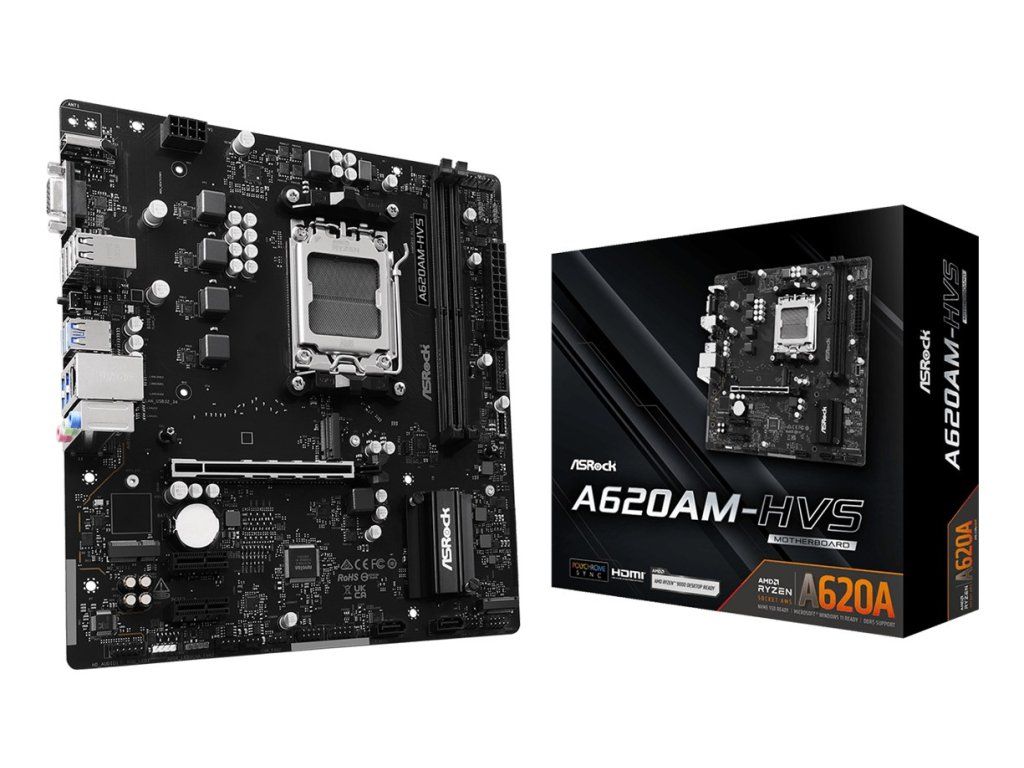

Asrock A620AM-HVS AMD A620A Socket AM5 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1 kg |
| EAN: | 4711581490802 |
| Compliance certificates: | CE, Federal Communications Commission (FCC) |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series |
| Supported processor sockets: | Socket AM5 |
| HDCP: | Yes |
| Maximum resolution: | 3840 x 2160 pixels |
| Parallel processing technology support: | Not supported |
| High Dynamic Range (HDR) supported: | Yes |
| HDCP version: | 2.3 |
| Motherboard chipset: | AMD A620A |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC897 |
| Product colour: | Black |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | AMD |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| ECC сompatibility: | Non-ECC |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 128 GB |
| Number of memory slots: | 2 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Supported memory clock speed (max): | 6800 MHz |
| Depth: | 229 mm |
| Width: | 244 mm |
| LAN controller: | Realtek RTL8111H |
| Wi-Fi: | No |
| Top Wi-Fi standard: | Not available |
| Ethernet interface type: | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Number of RGB LED pin headers: | 1 |
| Number of CPU fan connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| USB 2.0 connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 2 |
| Number of chassis fan connectors: | 3 |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| CPU fan connector: | Yes |
| Front panel audio connector: | Yes |
| BIOS type: | UEFI AMI |
| Screws included: | Yes |
| Cables included: | SATA |
| Supported storage drive interfaces: | PCI Express 3.0, PCI Express 4.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| RAID levels: | 1, 0, 10 |
| Number of storage drives supported: | 4 |
| USB 2.0 ports quantity: | 4 |
| Microphone in: | Yes |
| USB connector type: | USB Type-A |
| Ethernet LAN (RJ-45) ports: | 1 |
| Line-in: | Yes |
| HDMI version: | 2.1 |
| VGA (D-Sub) ports quantity: | 1 |
| Headphone outputs: | 3 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| 1st M.2 largest key size: | 2280 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
