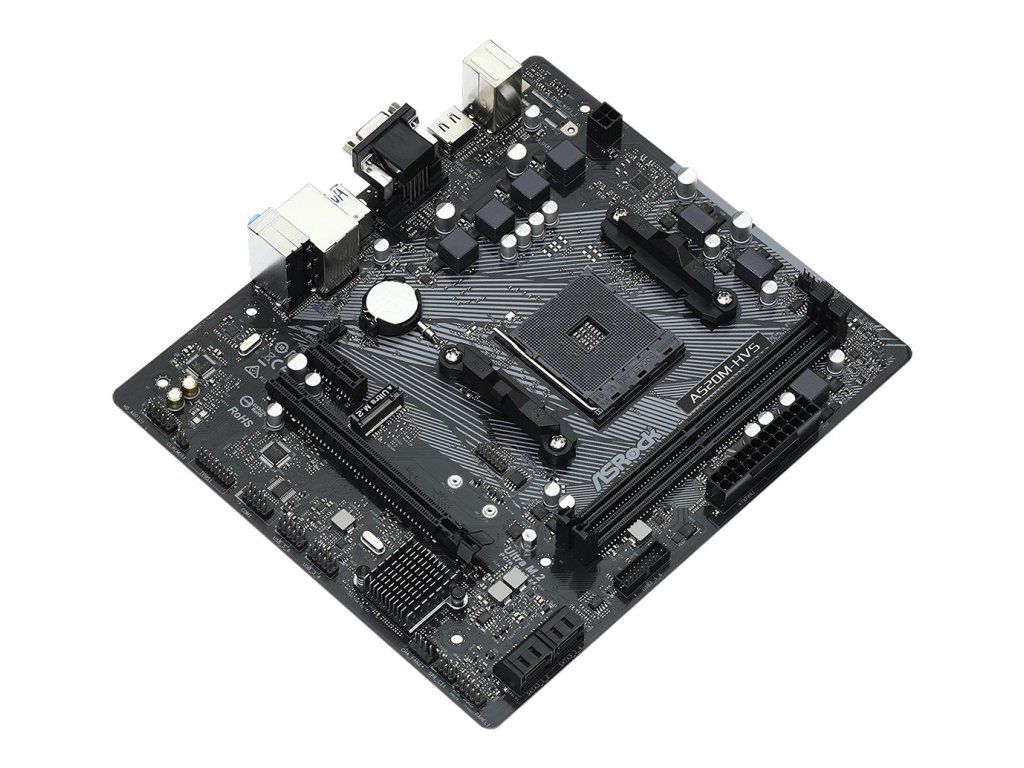

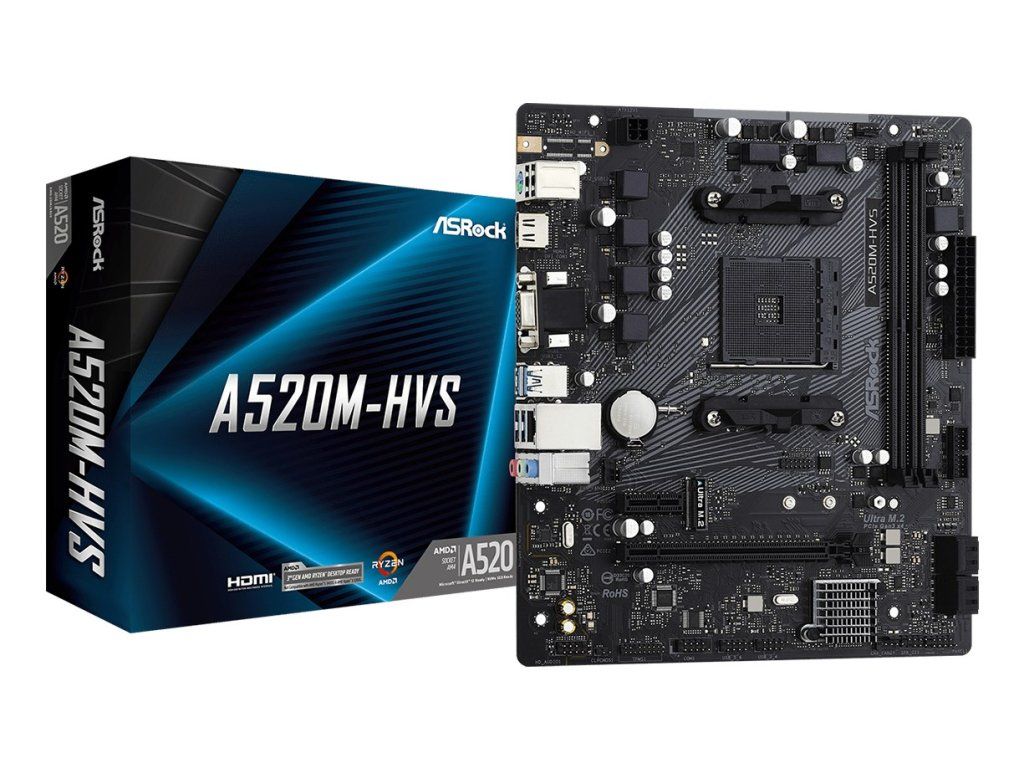

Asrock A520M-HVS AMD A520 Socket AM4 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM4 |
|---|---|
| Greutate: | 0.78 kg |
| EAN: | 4710483932311 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Compatible processor series: | AMD Ryzen 3000 Series |
| Graphics card: | Radeon Vega |
| Graphics card family: | AMD |
| Motherboard chipset family: | AMD |
| Motherboard chipset: | AMD A520 |
| Audio output channels: | 7.1 channels |
| Motherboard form factor: | micro ATX |
| Supported memory clock speeds: | 3733, 4400, 3866, 4333, 4500 MHz, 3466, 2400, 3200, 2666, 4266, 3800, 4466, 4133, 4000, 2933, 3600, 4533, 2133, 4200 |
| Maximum internal memory: | 64 GB |
| Number of memory slots: | 2 |
| Unbuffered memory: | Yes |
| Memory channels: | Dual-channel |
| ECC сompatibility: | Non-ECC |
| Supported memory types: | DDR4-SDRAM |
| Memory slots type: | DIMM |
| Width: | 230 mm |
| Depth: | 201 mm |
| Wake-on-LAN ready: | Yes |
| LAN controller: | Realtek RTL8111H |
| Wi-Fi: | No |
| Top Wi-Fi standard: | Not available |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| ATX Power connector (24-pin): | Yes |
| Number of COM connectors: | 1 |
| Number of chassis fan connectors: | 2 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Front panel audio connector: | Yes |
| USB 2.0 connectors: | 2 |
| BIOS type: | UEFI AMI |
| Drivers included: | Yes |
| Cables included: | SATA |
| Number of HDDs supported: | 5 |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| Number of storage drives supported: | 5 |

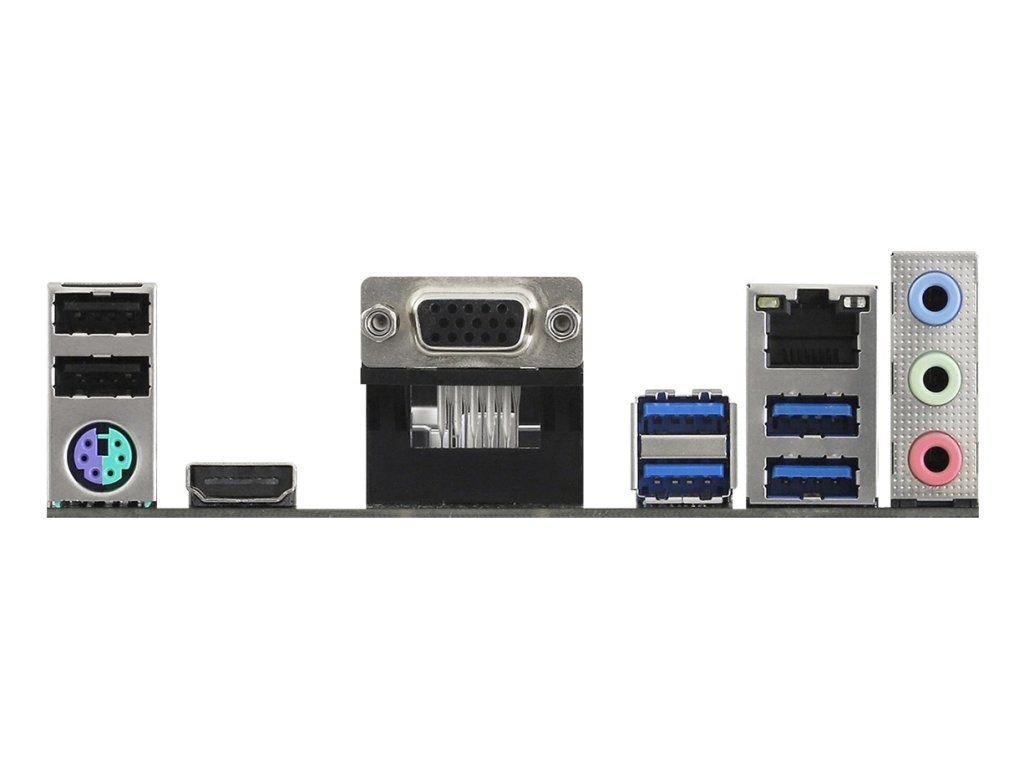

| VGA (D-Sub) ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| Microphone in: | Yes |
| PS/2 ports quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| Harmonized System (HS) code: | 84733020 |
| Warnings: | Store away from water and sources of moisture., Dispose of according to local electro-waste regulations., Avoid direct contact with sensitive electronic components. |
-
