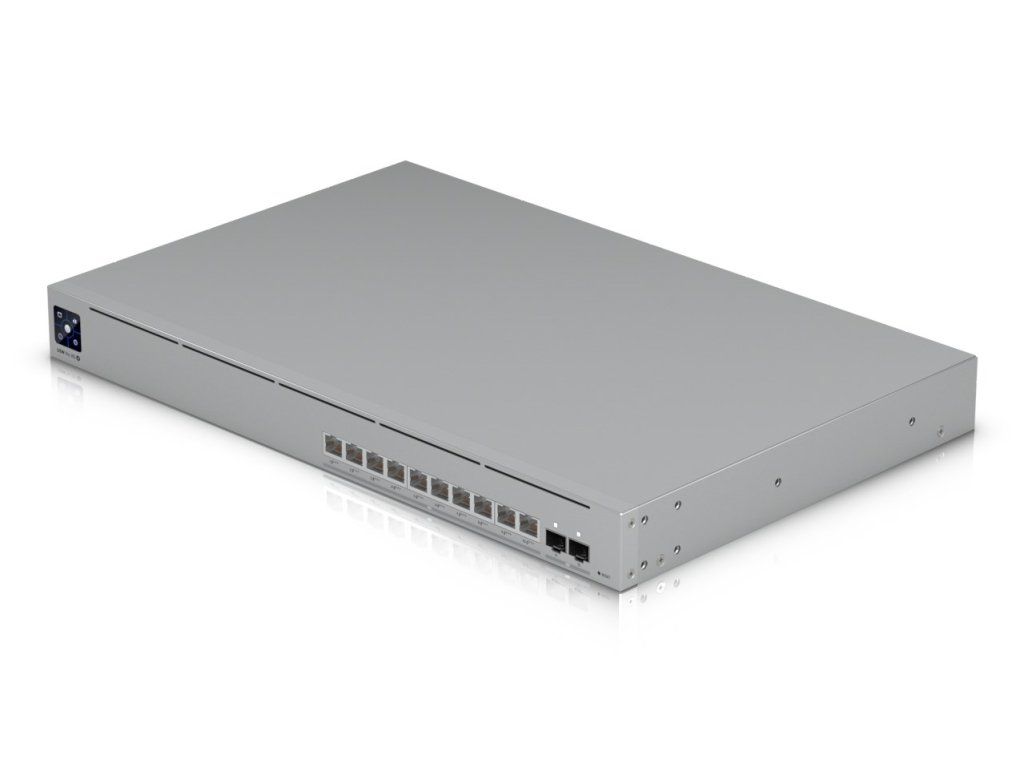

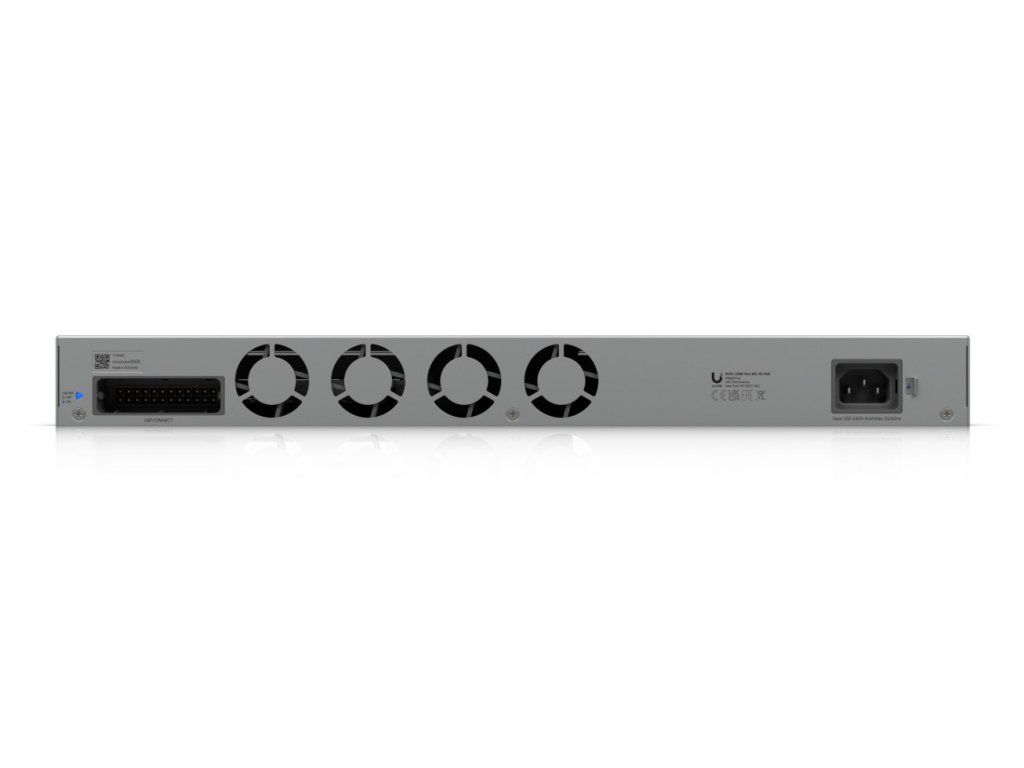

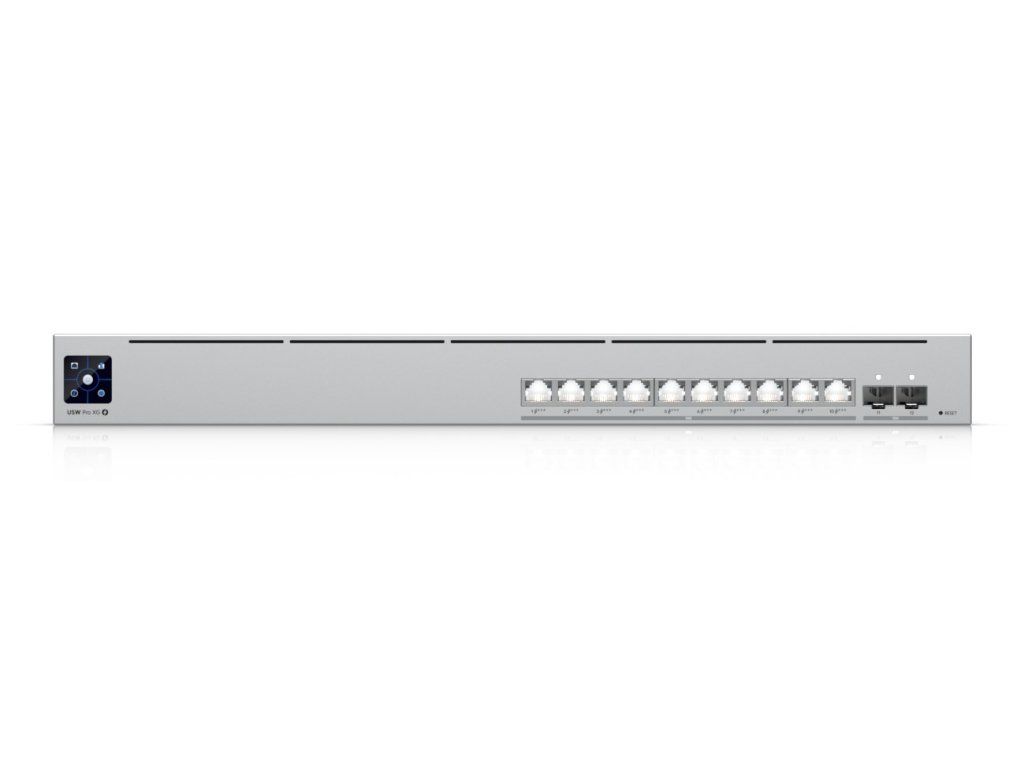

Ubiquiti UniFi Pro XG 10 PoE Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Managed |
|---|---|
| Greutate: | 5.8 kg |
| EAN: | 810177160137 |
| Reset button: | Yes |
| Form factor: | 1U |
| Product colour: | Grey |
| Stackable: | Yes |
| Housing material: | SGCC |
| Rack mounting: | Yes |
| Backlight display: | Yes |
| Display type: | LCM |
| LED indicators: | System |
| Redundant power supply (RPS) support: | Yes |
| Power consumption (max): | 520 W |
| Power source: | AC/DC |
| Power supply included: | Yes |
| AC input frequency: | 50/60 Hz |
| AC input voltage: | 100 - 240 V |
| IGMP snooping: | Yes |
| DHCP features: | DHCPv6 snooping, DHCP server, DHCP guarding, DHCP relay |
| Loop protection: | Yes |
| Operating relative humidity (H-H): | 10 - 90% |
| Operating temperature (T-T): | -5 - 40 °C |
| Quality of Service (QoS) support: | Yes |
| Switch layer: | L2/L3 |
| Switch type: | Managed |
| Weight: | 4.6 kg |
| Height: | 44 mm |
| Width: | 442.4 mm |
| Depth: | 285 mm |
| Port mirroring: | Yes |
| Rate limiting: | Yes |
| 10G support: | Yes |
| Broadcast storm control: | Yes |
| Flow control support: | Yes |
| Virtual LAN features: | Interface-based VLAN, Voice VLAN |
| VLAN support: | Yes |
| Number of VLANs: | 1000 |
| IPv4 routes: | 12000 |
| Manual: | Yes |
| Cables included: | Power |
| Rack mount kit: | Yes |
| Compliance certificates: | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Industry Canada (IC) |
| Power connector: | AC/DC |
| Basic switching RJ-45 Ethernet ports type: | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity: | 10 |
| Basic switching RJ-45 Ethernet ports quantity: | 10 |
| SFP+ module slots quantity: | 2 |
| Packet buffer memory: | 2 MB |
| MAC address table: | 32000 entries |
| Forwarding rate: | 179 Mpps |
| Switching capacity: | 240 Gbit/s |
| Throughput: | 120 Gbit/s |
| Static route: | Yes |
| Jumbo frames support: | Yes |
| Power over Ethernet (PoE): | Yes |
| Power over Ethernet (PoE) power per port: | 15.4 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity: | 10 |
| Total Power over Ethernet (PoE) budget: | 400 W |
| Power over Ethernet (PoE) type supported: | PoE++ (4PPoE) |
| Multicast support: | Yes |
