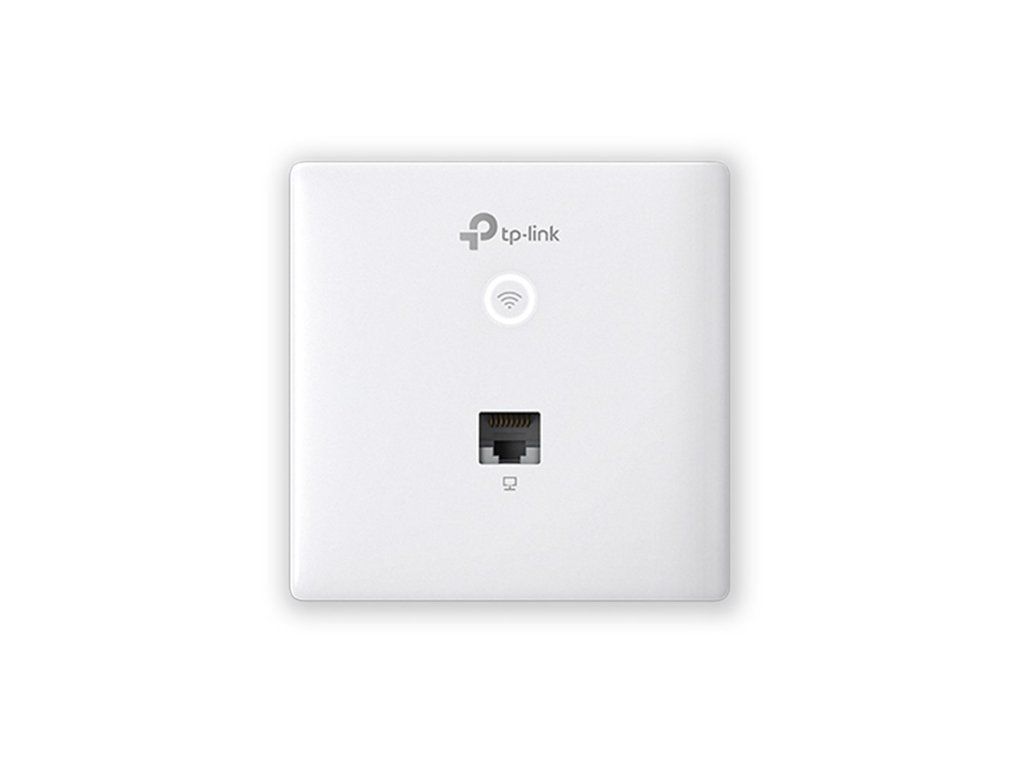

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | AccesPoint |
|---|---|
| Greutate: | 0.222 kg |
| EAN: | 1210002615679 |
| Networking standards: | IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3af, IEEE 802.11b |
| Ethernet LAN data rates: | 1000 Mbit/s, 10, 100 |
| Maximum data transfer rate: | 1167 Mbit/s |
| 5 GHz: | Yes |
| 2.4 GHz: | Yes |
| Frequency band: | 2.4 - 5 GHz |
| MIMO: | Yes |
| Quality of Service (QoS) support: | Yes |
| Transmitting power (CE): | 20 - 23 dBm |
| 6 GHz: | No |
| BeamForming: | Yes |
| Maximum data transfer rate (5 GHz): | 867 Mbit/s |
| Cabling technology: | 10/100/1000Base-T(X) |
| Maximum data transfer rate (2.4 GHz): | 300 Mbit/s |
| MIMO type: | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME): | Yes |
| VLAN support: | Yes |
| Automatic channel selection: | Yes |
| Rate limiting: | Yes |
| Automatic channel scanning: | Yes |
| Virtual LAN features: | Port-based VLAN, VLAN mapping |
| Band steering: | Yes |
| LED indicators: | Operation |
| Reset button: | Yes |
| Product colour: | White |
| Placement: | Wall |
| Power over Ethernet (PoE): | Yes |
| Power consumption (max): | 25.5 W |
| Power consumption (typical): | 9 W |
| Security algorithms: | 128-bit WEP, SNMP, WPA2-PSK, WPA, 64-bit WEP, WPA2-Enterprise, 152-bit WEP, SNMPv2, WPA-PSK |
| MAC address filtering: | Yes |
| Access Control List (ACL): | Yes |
| Number of SSID supported: | 16 |
| Service Set Identifier (SSID) features: | Multiple SSIDs |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 5 - 90% |
| Web-based management: | Yes |
| Syslog: | Yes |
| Height: | 30.2 mm |
| Depth: | 86.8 mm |
| Width: | 86.8 mm |
| Package weight: | 210 g |
| Package depth: | 130 mm |
| Package width: | 118 mm |
| Package height: | 47 mm |
| Mounting kit: | Yes |
| Quick start guide: | Yes |
| Quantity per pack: | 2 pc(s) |
| Compliance certificates: | RoHS, CE |
| WAN connection: | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports: | 1 |
| Antenna type: | Internal |
| Antenna gain level (max): | 3.6 dBi |
| Antennas quantity: | 2 |
| Antenna features: | Integrated antenna |
| Harmonized System (HS) code: | 85176990 |
| Sustainability compliance: | Yes |
-
