TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Switches |
|---|---|
| Greutate: | 2.065 kg |
| EAN: | 6935364006396 |
| Form factor: | 1U |
| Product colour: | Black |
| Rack mounting: | Yes |
| LED indicators: | Yes |
| Power consumption (max): | 6.84 W |
| AC input frequency: | 50/60 Hz |
| Power source: | AC |
| AC input voltage: | 100 - 240 V |
| Power supply included: | Yes |
| MAC address filtering: | Yes |
| Authentication type: | RADIUS |
| IP-MAC-Port binding: | Yes |
| BPDU filtering/protection: | Yes |
| Authentication: | MAC-based authentication, Port-based authentication |
| SSH/SSL support: | Yes |
| DHCP features: | DHCPv6 client, DHCP server, DHCP client, DHCP relay, DHCPv6 snooping, DHCP snooping |
| Static port security: | Yes |
| IGMP snooping: | Yes |
| Access Control List (ACL): | Yes |
| Loop protection: | Yes |
| Storage relative humidity (H-H): | 5 - 90% |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating temperature (T-T): | 0 - 40 °C |
| Heat dissipation: | 23.33 BTU/h |
| Web-based management: | Yes |
| Quality of Service (QoS) support: | Yes |
| ARP inspection: | Yes |
| Cloud-managed: | Yes |
| Configuring Location Settings (CLI): | Yes |
| MIB support: | Yes |
| Switch layer: | L2/L3 |
| System event log: | Yes |
| Switch type: | Managed |
| Height: | 44 mm |
| Depth: | 180 mm |
| Width: | 294 mm |
| Networking standards: | IEEE 802.3ab, IEEE 802.1p, IEEE 802.3i, IEEE 802.1x, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.3z, IEEE 802.3u |
| VLAN support: | Yes |
| Head-of-line (HOL) blocking: | Yes |
| IP routing: | Yes |
| IPv6 routes: | 48 |
| IPv4 routes: | 48 |
| Broadcast storm control: | Yes |
| Link aggregation: | Yes |
| Number of VLANs: | 4000 |
| Flow control support: | Yes |
| 10G support: | No |
| Virtual LAN features: | Protocol-based VLAN, Port-based VLAN, Voice VLAN, Tagged VLAN, Private VLAN |
| Rate limiting: | Yes |
| Spanning tree protocol: | Yes |
| Port mirroring: | Yes |
| Firmware upgradeable: | Yes |
| Fanless: | Yes |
| Minimum system requirements: | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux. |
| Quick start guide: | Yes |
| Manual: | Yes |
| User guide: | Yes |
| Rack mount kit: | Yes |
| GARP VLAN Registration Protocol (GVRP): | Yes |
| IPv4 & IPv6 features: | IPv6 tracert, IPv6 Telnet, IPv6 ping, IPv4/IPv6 access-control list (ACL) |
| Management protocols: | SNMPv1/v2c/v3, SNTP |

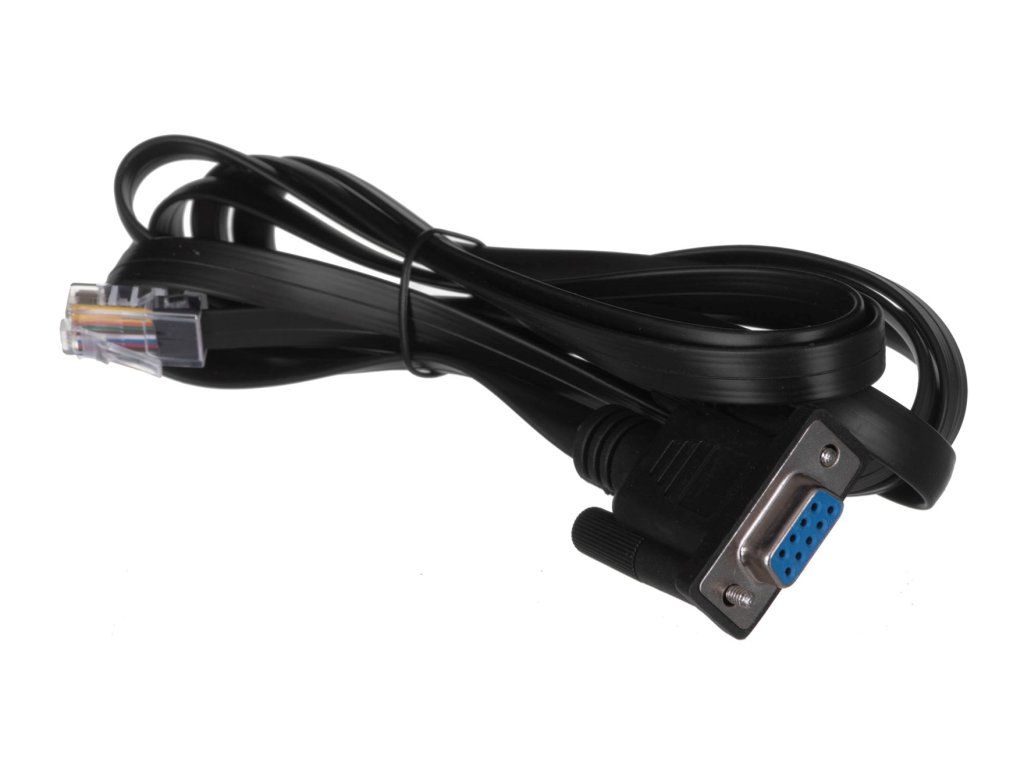

| Console port: | RJ-45/micro-USB |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity: | 2 |
| Basic switching RJ-45 Ethernet ports quantity: | 8 |
| Static route: | Yes |
| Jumbo frames: | 9000 |
| Number of IP interfaces: | 16 |
| MAC address table: | 8000 entries |
| Forwarding rate: | 14.9 Mpps |
| Switching capacity: | 20 Gbit/s |
| Packet buffer memory: | 4.1 MB |
| Jumbo frames support: | Yes |
| Store-and-forward: | Yes |
| Power over Ethernet (PoE): | No |
| Multicast Listener Discovery (MLD) snooping: | Y |
| Multicast support: | Yes |
| Warnings: | Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself. |
