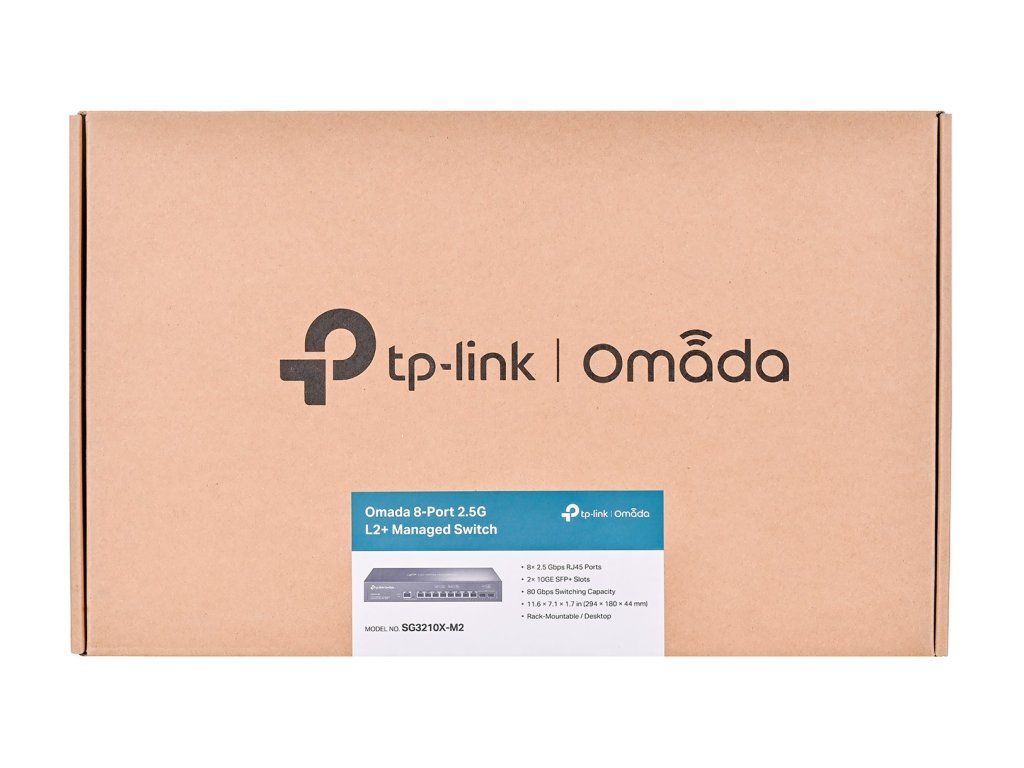

TP-Link Omada 8-Port 2.5G L2+ Managed Switch
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Switches |
|---|---|
| Greutate: | 2.145 kg |
| EAN: | 4897098689523 |
| Product colour: | Black |
| Form factor: | 1U |
| LED indicators: | Yes |
| Rack mounting: | Yes |
| Number of fans: | 2 fan(s) |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Power supply included: | Yes |
| Power source: | AC |
| Power consumption (typical): | 15 W |
| Security algorithms: | SSL/TLS, HTTPS, SSH, SSH-2 |
| MAC address filtering: | Yes |
| BPDU filtering/protection: | Yes |
| DHCP features: | DHCPv6 snooping, DHCP client, DHCP relay, DHCPv6 client, DHCP snooping, DHCP server |
| IGMP snooping: | Yes |
| IP-MAC-Port binding: | Yes |
| SSH/SSL support: | Yes |
| Queue scheduling algorithms: | Weighted Round Robin (WRR), SP, WRR+SP |
| Authentication: | MAC-based authentication, Port-based authentication |
| Access Control List (ACL): | Yes |
| Loop protection: | Yes |
| Password protection: | Yes |
| Authentication type: | AAA, TACACS+ |
| Static port security: | Yes |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating temperature (T-T): | 0 - 50 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 5 - 90% |
| Heat dissipation: | 51.18 BTU/h |
| Quality of Service (QoS) support: | Yes |
| Web-based management: | Yes |
| Switch layer: | L2+ |
| System event log: | Yes |
| MIB support: | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| ARP inspection: | Yes |
| Configuring Location Settings (CLI): | Yes |
| Switch type: | Managed |
| Traffic classification: | Yes |
| Cloud-managed: | Yes |
| Width: | 294 mm |
| Depth: | 180 mm |
| Height: | 44 mm |
| Networking standards: | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| Ethernet LAN data rates: | 100,1000,2500 Mbit/s |
| Virtual LAN features: | Port-based VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, Private VLAN |
| 10G support: | Yes |
| Flow control support: | Yes |
| Port mirroring: | Yes |
| Head-of-line (HOL) blocking: | Yes |
| IP routing: | Yes |
| VLAN support: | Yes |
| Rate limiting: | Yes |
| Broadcast storm control: | Yes |
| Link aggregation: | Yes |
| Spanning tree protocol: | Yes |
| Number of VLANs: | 4000 |
| Fanless: | Yes |
| Package type: | Box |
| Package weight: | 2.84 kg |
| Package depth: | 250 mm |
| Package width: | 528 mm |
| Package height: | 80 mm |
| Quick start guide: | Yes |
| Cables included: | AC |
| Management protocols: | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP): | Yes |
| Console port: | RJ-45/Micro-USB |
| SFP+ module slots quantity: | 2 |
| Basic switching RJ-45 Ethernet ports quantity: | 8 |
| Basic switching RJ-45 Ethernet ports type: | 2.5G Ethernet (100/1000/2500) |
| Power connector: | AC-in jack |
| 2.5G Ethernet (copper) ports quantity: | 8 |
| Harmonized System (HS) code: | 85176990 |
| Number of static routes: | 48 |
| Static route: | Yes |
| Number of IP interfaces: | 16 |
| Forwarding rate: | 59.52 Mpps |
| MAC address table: | 16000 entries |
| Packet buffer memory: | 12 MB |
| Jumbo frames: | 9000 |
| Switching capacity: | 80 Gbit/s |
| Jumbo frames support: | Yes |
| Multicast support: | Yes |
| Multicast Listener Discovery (MLD) snooping: | Y |
