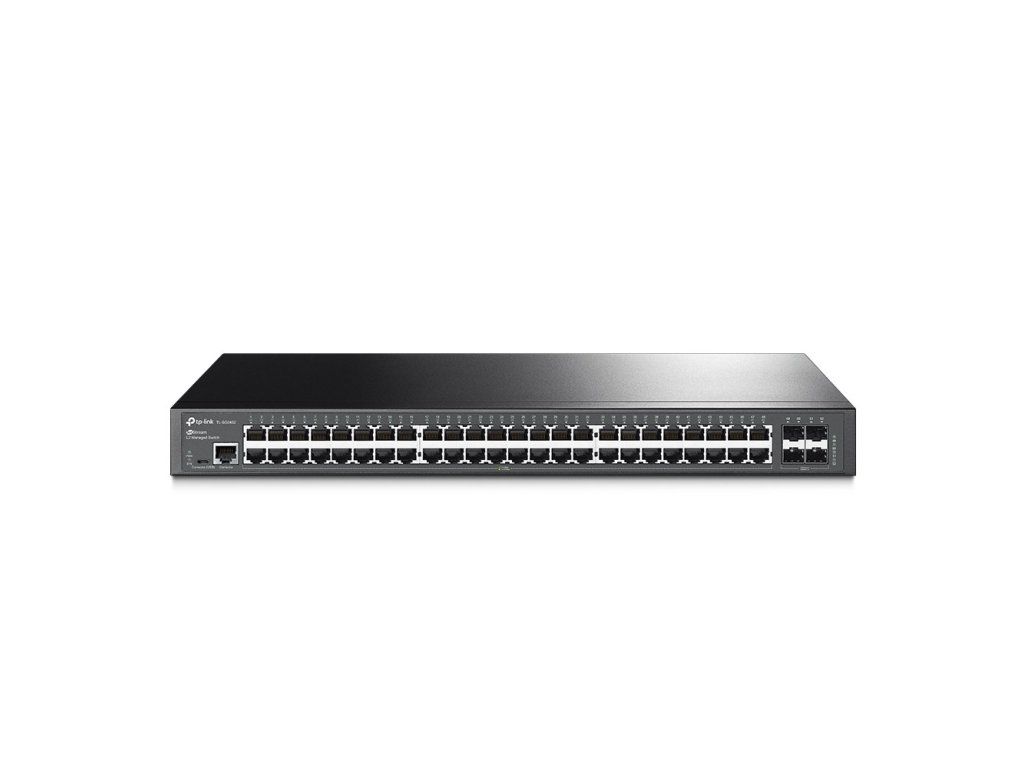

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Switches |
|---|---|
| Greutate: | 4.7 kg |
| EAN: | 1210002611923 |
| Product colour: | Black |
| Form factor: | 1U |
| Rack mounting: | Yes |
| AC input frequency: | 50/60 Hz |
| Power source: | AC |
| Power consumption (max): | 34.86 W |
| Power supply included: | Yes |
| AC input voltage: | 100 - 240 V |
| Loop protection: | Yes |
| SSH/SSL support: | Yes |
| MAC address filtering: | Yes |
| DHCP features: | DHCP server, DHCP snooping, DHCPv6 snooping, DHCP client, DHCP relay |
| Access Control List (ACL): | Yes |
| Authentication: | MAC-based authentication, Port-based authentication |
| IGMP snooping: | Yes |
| Authentication type: | AAA, RADIUS, TACACS+ |
| BPDU filtering/protection: | Yes |
| IP-MAC-Port binding: | Yes |
| Heat dissipation: | 118.94 BTU/h |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage relative humidity (H-H): | 5 - 90% |
| Switch type: | Managed |
| MIB support: | Yes |
| Web-based management: | Yes |
| System event log: | Yes |
| Switch layer: | L2 |
| Quality of Service (QoS) support: | Yes |
| ARP inspection: | Yes |
| Configuring Location Settings (CLI): | Yes |
| Cloud-managed: | Yes |
| Height: | 44 mm |
| Depth: | 220 mm |
| Width: | 440 mm |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| VLAN support: | Yes |
| Networking standards: | IEEE 802.3i, IEEE 802.3u, IEEE 802.1D, IEEE 802.3z, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.1p |
| 10G support: | No |
| Broadcast storm control: | Yes |
| Spanning tree protocol: | Yes |
| Link aggregation: | Yes |
| Flow control support: | Yes |
| Number of VLANs: | 4000 |
| Port mirroring: | Yes |
| Head-of-line (HOL) blocking: | Yes |
| Virtual LAN features: | Port-based VLAN, Tagged VLAN, Voice VLAN, Protocol-based VLAN, Private VLAN |
| IP routing: | Yes |
| IPv6 routes: | 48 |
| Policy-based routing: | Yes |
| IPv4 routes: | 48 |
| Flash memory: | 32 MB |
| Internal memory: | 256 MB |
| Fanless: | Yes |
| Package weight: | 4.26 kg |
| Package depth: | 336 mm |
| Package height: | 100 mm |
| Package width: | 528 mm |
| Quick start guide: | Yes |
| Cables included: | AC |
| Rack mount kit: | Yes |
| Management protocols: | SNMPv1/v2c/v3, SNTP |
| IPv4 & IPv6 features: | IPv6 Telnet, IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 tracert |
| GARP VLAN Registration Protocol (GVRP): | Yes |
| Console port: | RJ-45/Micro-USB |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity: | 4 |
| Basic switching RJ-45 Ethernet ports quantity: | 48 |
| Gigabit Ethernet (copper) ports quantity: | 48 |
| Harmonized System (HS) code: | 85176990 |
| Jumbo frames support: | Yes |
| Store-and-forward: | Yes |
| Switching capacity: | 104 Gbit/s |
| MAC address table: | 16000 entries |
| Static route: | Yes |
| Jumbo frames: | 9000 |
| Forwarding rate: | 77.4 Mpps |
| Power over Ethernet (PoE): | No |
| Multicast support: | Yes |
| Multicast Listener Discovery (MLD) snooping: | Y |
-
