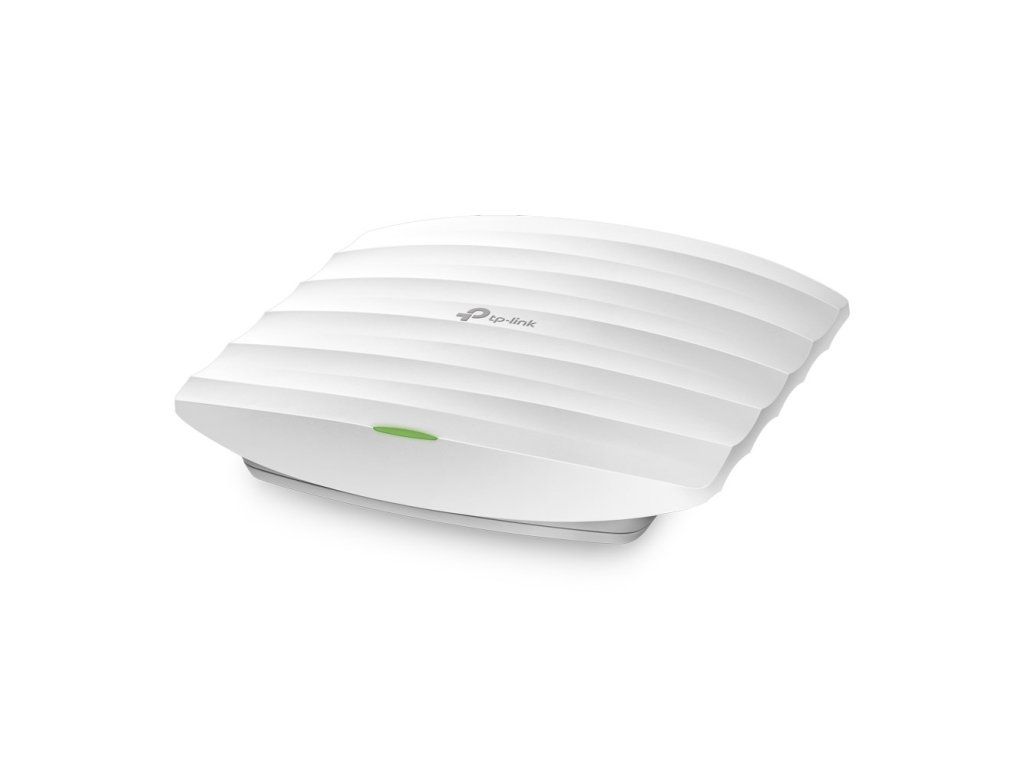

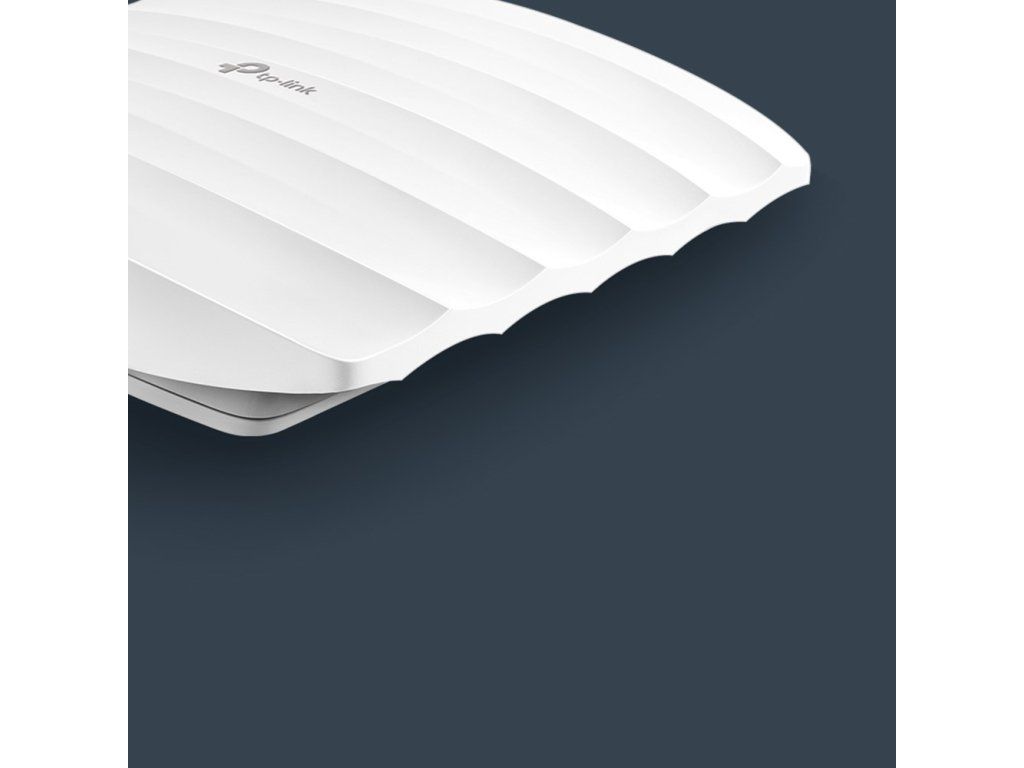

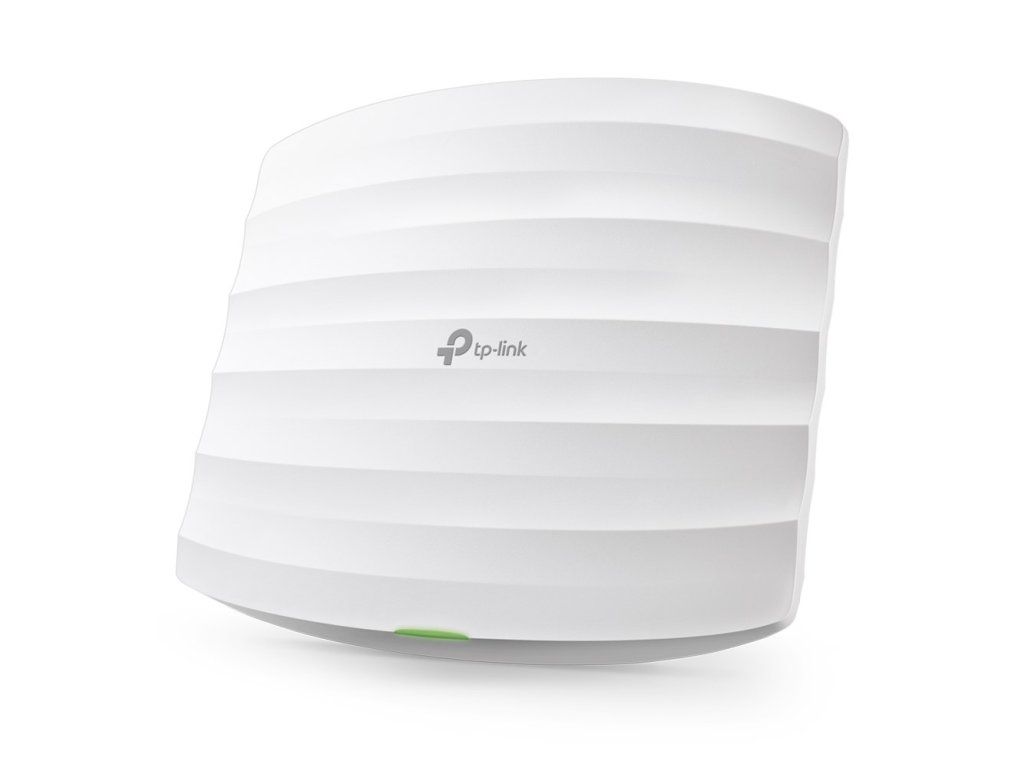

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | AccesPoint |
|---|---|
| Greutate: | 0.735 kg |
| EAN: | 6935364091620 |
| Ethernet LAN data rates: | 100, 10 |
| Networking standards: | IEEE 802.11g, IEEE 802.11n, IEEE 802.11b, IEEE 802.1x |
| Frequency band: | 2.4 - 2.4835 GHz |
| Maximum data transfer rate (2.4 GHz): | 300 Mbit/s |
| Quality of Service (QoS) support: | Yes |
| Rate limiting: | Yes |
| 2.4 GHz: | Yes |
| VLAN support: | Yes |
| Cabling technology: | 10/100Base-T(X) |
| 5 GHz: | No |
| Wi-Fi Multimedia (WMM)/(WME): | Yes |
| Maximum data transfer rate: | 300 Mbit/s |
| Wireless isolation: | Yes |
| Virtual LAN features: | VLAN mapping |
| Transmitting power (CE): | 19 dBm |
| Transmitting power (FCC): | 21 dBm |
| 6 GHz: | No |
| Receiver sensitivity: | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Reset button: | Yes |
| Product colour: | White |
| Placement: | Ceiling, Wall |
| LED indicators: | Power |
| Power over Ethernet (PoE): | Yes |
| AC input voltage: | 24 V |
| Power consumption (typical): | 2.8 W |
| Power over Ethernet (PoE) type supported: | Passive PoE |
| MAC address filtering: | Yes |
| Security algorithms: | WPA, 64-bit WEP, WPA2-Enterprise, SNMPv2, SSH, WPA2-PSK, 128-bit WEP, SNMP, 152-bit WEP, WPA-PSK, HTTPS |
| Service Set Identifier (SSID) features: | Multiple SSIDs |
| Number of SSID supported: | 8 |
| Access Control List (ACL): | Yes |
| Storage temperature (T-T): | -40 - 70 °C |
| Storage relative humidity (H-H): | 5 - 90% |
| Operating relative humidity (H-H): | 10 - 90% |
| Operating temperature (T-T): | 0 - 40 °C |
| Web-based management: | Yes |
| Syslog: | Yes |
| Width: | 189.5 mm |
| Height: | 29.7 mm |
| Depth: | 170.5 mm |
| Package weight: | 720 g |
| Package depth: | 268 mm |
| Package type: | Box |
| Package width: | 246 mm |
| Package height: | 69 mm |
| Cables included: | AC |
| Quick start guide: | Yes |
| Mounting kit: | Yes |
| Quantity per pack: | 1 pc(s) |
| PoE adapter included: | Yes |
| Compliance certificates: | RoHS, CE, Federal Communications Commission (FCC) |
| Ethernet LAN (RJ-45) ports: | 1 |
| Antennas quantity: | 2 |
| Antenna type: | Internal |
| Antenna direction type: | Omni-directional |
| Antenna gain level (max): | 4 dBi |
| Harmonized System (HS) code: | 85176990 |
| Warnings: | Avoid direct contact with water., Electronic products should be recycled at specialist electronic waste collection facilities., Do not expose to prolonged moisture. |
| Sustainability compliance: | Yes |
-
