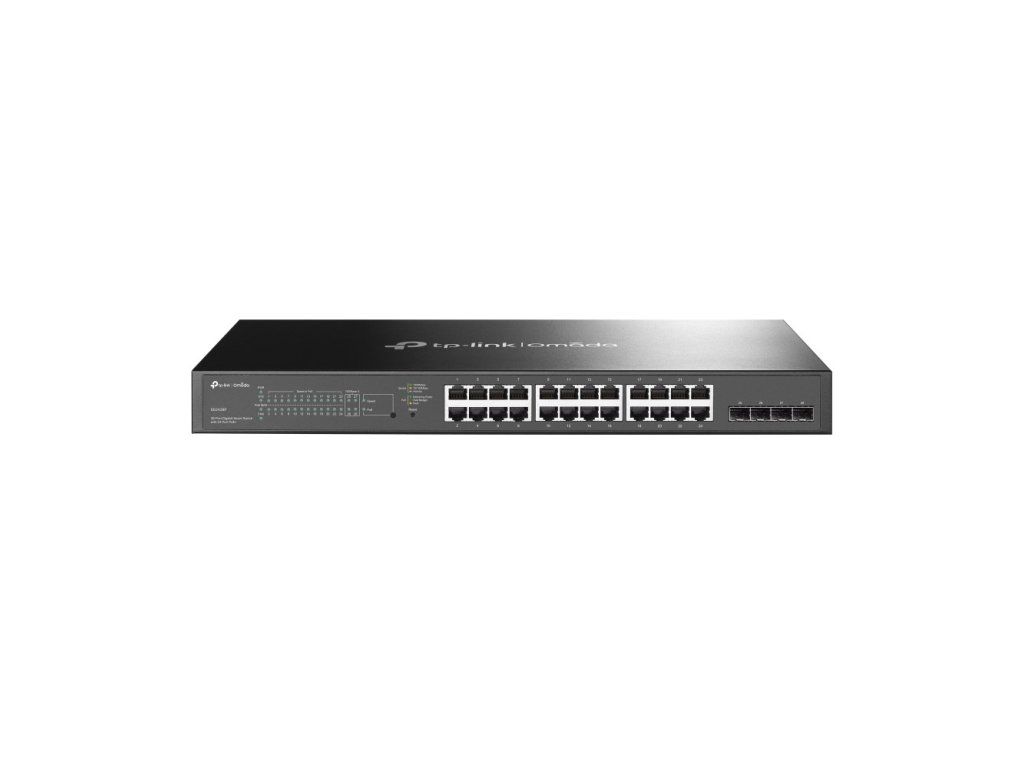

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Switches |
|---|---|
| Greutate: | 4.509 kg |
| EAN: | 6935364030650 |
| Number of fans: | 2 fan(s) |
| Rack mounting: | Yes |
| Product colour: | Black |
| Form factor: | 1U |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Power source: | AC |
| Power supply included: | Yes |
| Power consumption (max): | 301.1 W |
| BPDU filtering/protection: | Yes |
| IP-MAC-Port binding: | Yes |
| DHCP features: | DHCP server, DHCPv6 client, DHCP client, DHCP relay, DHCP snooping |
| Authentication type: | RADIUS |
| Queue scheduling algorithms: | WRR+SP, SP, Weighted Round Robin (WRR) |
| SSH/SSL support: | Yes |
| IGMP snooping: | Yes |
| Access Control List (ACL): | Yes |
| Security algorithms: | SSL/TLS, SSH-2, SNMPv2, SNMPv3, HTTPS, SSH, SNMP |
| Heat dissipation: | 1052.94 BTU/h |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage relative humidity (H-H): | 5 - 90% |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| MIB support: | Y |
| Switch layer: | L2/L2+ |
| System event log: | Yes |
| ARP inspection: | Yes |
| Switch type: | Managed |
| Web-based management: | Yes |
| Quality of Service (QoS) support: | Yes |
| Depth: | 220 mm |
| Height: | 44 mm |
| Width: | 440 mm |
| Cable types supported: | Cat5, Cat3, Cat4, Cat5e |
| Rate limiting: | Yes |
| Virtual LAN features: | Voice VLAN, Protocol-based VLAN, MAC address-based VLAN |
| Spanning tree protocol: | Yes |
| Link aggregation: | Yes |
| Broadcast storm control: | Yes |
| Port mirroring: | Yes |
| Number of VLANs: | 4000 |
| Flow control support: | Yes |
| Networking standards: | IEEE 802.1w, IEEE 802.3at, IEEE 802.3u, IEEE 802.1x, IEEE 802.1D, IEEE 802.3z, IEEE 802.3af, IEEE 802.3az, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3i, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3x |
| Copper ethernet cabling technology: | 1000BASE-T, 10BASE-T |
| 10G support: | No |
| VLAN support: | Yes |
| Firmware upgradeable: | Yes |
| Rack mount kit: | Yes |
| Cables included: | AC |
| User guide: | Yes |
| Management protocols: | SNMPv1/v2c/v3, SNTP |
| Gigabit Ethernet (copper) ports quantity: | 24 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity: | 24 |
| SFP module slots quantity: | 4 |
| Jumbo frames: | 9000 |
| Packet buffer memory: | 4.1 MB |
| MAC address table: | 8000 entries |
| Forwarding rate: | 41.66 Mpps |
| Number of queues: | 8 |
| Jumbo frames support: | Yes |
| Switching capacity: | 56 Gbit/s |
| Power over Ethernet plus (PoE+) ports quantity: | 24 |
| Power over Ethernet (PoE) power per port: | 30 W |
| Total Power over Ethernet (PoE) budget: | 250 W |
| Power over Ethernet (PoE): | Yes |
| Multicast support: | Yes |
| Warnings: | Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself. |
| Fiber ethernet cabling technology: | 1000BASE-X |
