TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Switches |
|---|---|
| Greutate: | 2.8 kg |
| EAN: | 6935364010713 |
| Product colour: | Black |

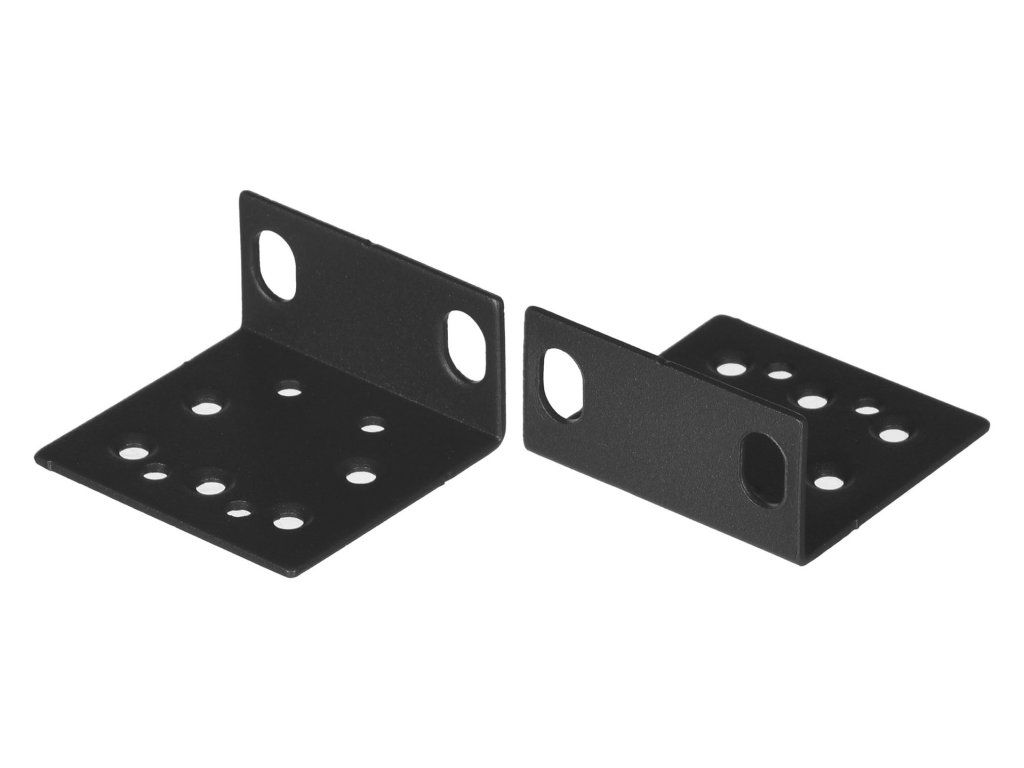

| Rack mounting: | Yes |
| Form factor: | 1U |
| LED indicators: | Yes |
| Power supply included: | No |
| Power source: | AC |
| AC input frequency: | 50/60 Hz |
| AC input voltage: | 100 - 240 V |
| Power consumption (max): | 20.6 W |
| SSH/SSL support: | Yes |
| IGMP snooping: | Yes |
| Authentication: | MAC-based authentication, Port-based authentication |
| MAC address filtering: | Yes |
| IP-MAC-Port binding: | Yes |
| BPDU filtering/protection: | Yes |
| DHCP features: | DHCP server, DHCPv6 snooping, DHCP client, DHCP relay, DHCPv6 client, DHCP snooping |
| Authentication type: | AAA, RADIUS, TACACS+ |
| Loop protection: | Yes |
| Static port security: | Yes |
| Access Control List (ACL): | Yes |
| Storage temperature (T-T): | -40 - 70 °C |
| Storage relative humidity (H-H): | 5 - 90% |
| Operating relative humidity (H-H): | 10 - 90% |
| Heat dissipation: | 70.3 BTU/h |
| Operating temperature (T-T): | 0 - 45 °C |
| Quality of Service (QoS) support: | Yes |
| Web-based management: | Yes |
| ARP inspection: | Yes |
| Switch layer: | L2/L3 |
| System event log: | Yes |
| Cloud-managed: | Yes |
| Configuring Location Settings (CLI): | Yes |
| MIB support: | Yes |
| Switch type: | Managed |
| Width: | 440 mm |
| Height: | 44 mm |
| Depth: | 180 mm |
| Link aggregation: | Yes |
| 10G support: | No |
| Spanning tree protocol: | Yes |
| Networking standards: | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| IPv4 routes: | 48 |
| VLAN support: | Yes |
| Rate limiting: | Yes |
| Broadcast storm control: | Yes |
| Port mirroring: | Yes |
| Head-of-line (HOL) blocking: | Yes |
| Policy-based routing: | Yes |
| Number of VLANs: | 4000 |
| Virtual LAN features: | Protocol-based VLAN, Private VLAN, Voice VLAN, Tagged VLAN |
| Flow control support: | Yes |
| IPv6 routes: | 48 |
| IP routing: | Yes |
| Quick start guide: | Yes |

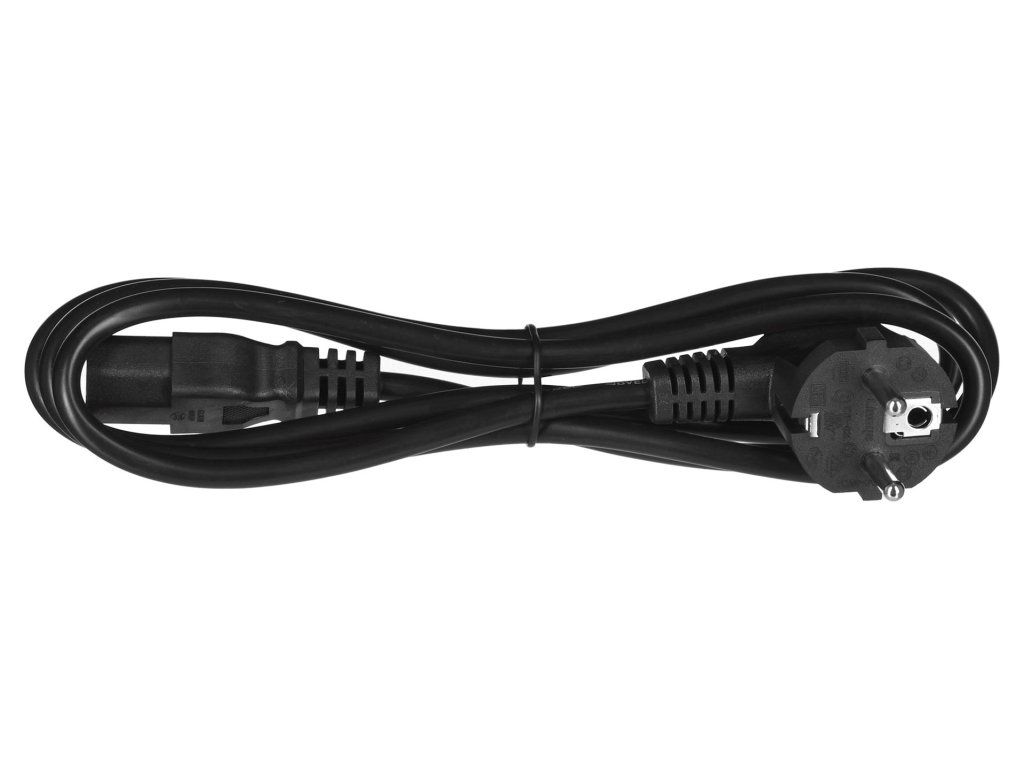

| Cables included: | LAN (RJ-45) |
| GARP VLAN Registration Protocol (GVRP): | Yes |
| IPv4 & IPv6 features: | IPv6 tracert, IPv6 Telnet, IPv4/IPv6 access-control list (ACL), IPv6 ping |
| Management protocols: | SNMPv1/v2c/v3, SNTP |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity: | 24 |
| Console port: | RJ-45/micro-USB |
| SFP module slots quantity: | 4 |
| Basic switching RJ-45 Ethernet ports quantity: | 24 |
| Store-and-forward: | Yes |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Static route: | Yes |
| Packet buffer memory: | 12 MB |
| Number of static routes: | 48 |
| MAC address table: | 16000 entries |
| Switching capacity: | 56 Gbit/s |
| Forwarding rate: | 41.66 Mpps |
| Power over Ethernet (PoE): | No |
| Multicast Listener Discovery (MLD) snooping: | Y |
| Multicast support: | Yes |
