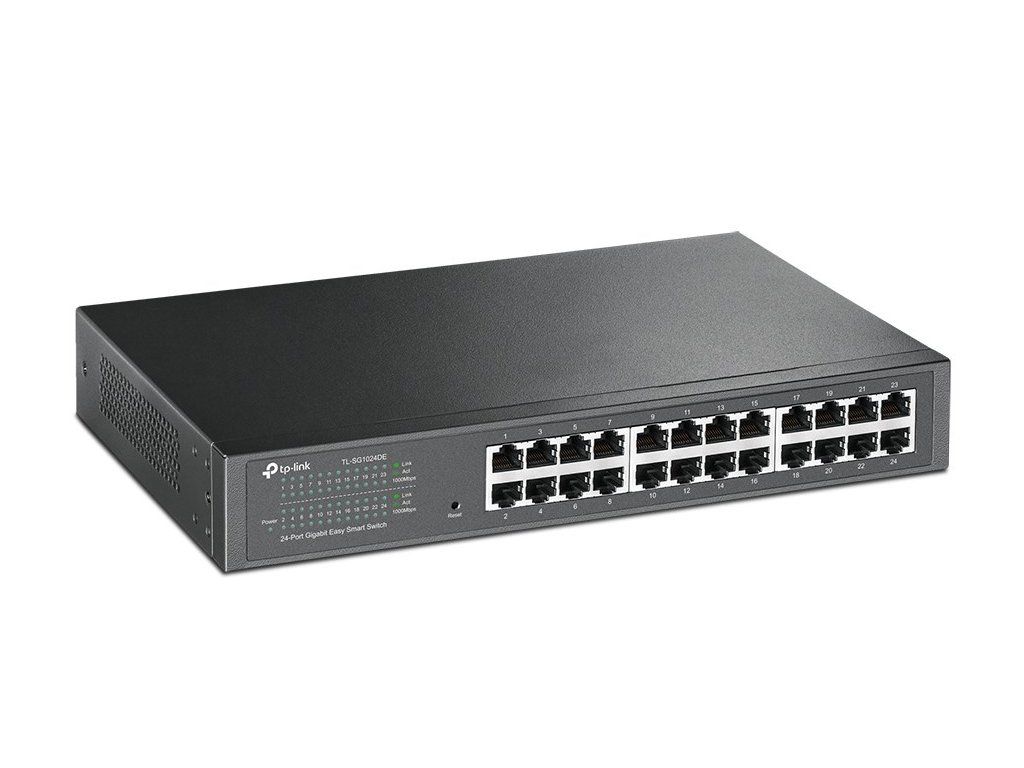

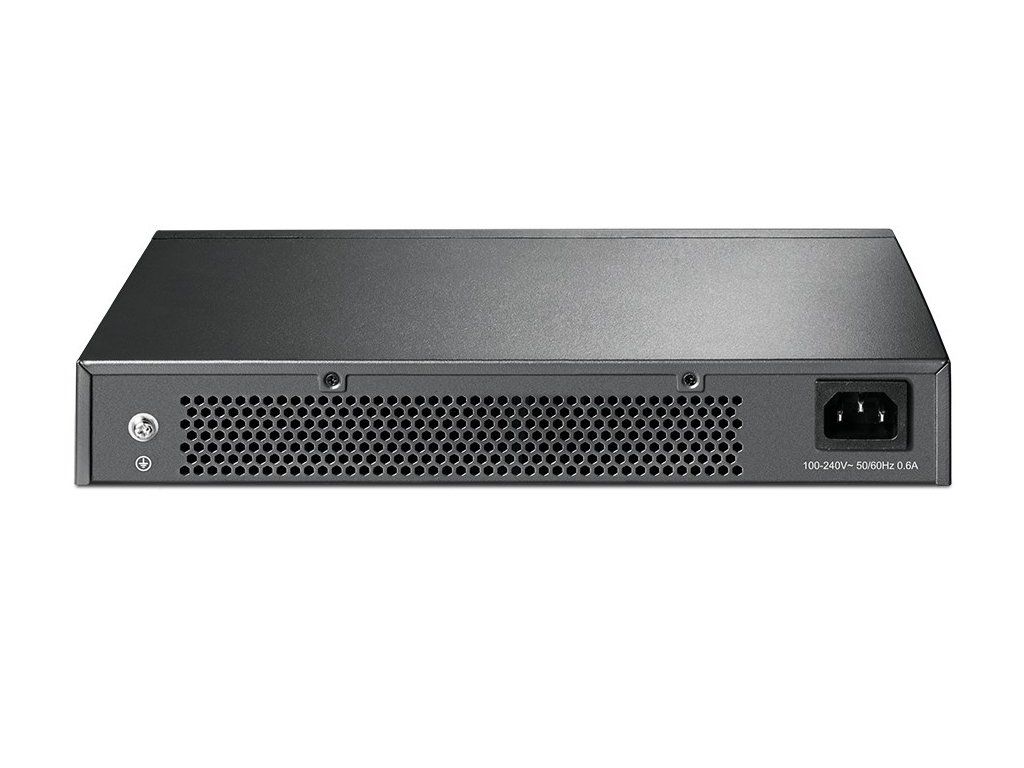

TP-Link 24-Port Gigabit Easy Smart Switch
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Switches |
|---|---|
| Greutate: | 1.935 kg |
| EAN: | 6935364021245 |
| LED indicators: | Yes |
| Form factor: | 1U |
| Rack mounting: | Yes |
| Product colour: | Black |
| Certification: | FCC, CE, RoHS |
| Power source: | AC |
| Power consumption (max): | 14.86 W |
| AC input frequency: | 50 - 60 Hz |
| Power supply included: | Yes |
| AC input voltage: | 100 - 240 V |
| Loop protection: | Yes |
| IGMP snooping: | Yes |
| Heat dissipation: | 114.37 BTU/h |
| Storage relative humidity (H-H): | 5 - 90% |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating temperature (T-T): | 0 - 40 °C |
| Quality of Service (QoS) support: | Yes |
| Switch layer: | L2 |
| Web-based management: | Yes |
| Switch type: | Managed |
| Depth: | 180 mm |
| Height: | 44 mm |
| Width: | 294 mm |
| Cable types supported: | Cat5, Cat6, Cat3 |
| Rate limiting: | Yes |
| Virtual LAN features: | Tagged VLAN, Port-based VLAN |
| Broadcast storm control: | Yes |
| Copper ethernet cabling technology: | 100BASE-TX, 10BASE-T, 1000BASE-T |
| Link aggregation: | Yes |
| VLAN support: | Yes |
| Networking standards: | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.1p |
| Number of VLANs: | 32 |
| 10G support: | No |
| Auto-negotiation: | Yes |
| Auto MDI/MDI-X: | Yes |
| Port mirroring: | Yes |
| Flow control support: | Yes |
| Package height: | 80 mm |
| Package type: | Box |
| Rack mount kit: | Yes |
| Package width: | 250 mm |
| User guide: | Yes |
| Package weight: | 2.02 kg |
| Cables included: | AC |
| Package depth: | 400 mm |
| Gigabit Ethernet (copper) ports quantity: | 24 |
| Basic switching RJ-45 Ethernet ports quantity: | 24 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Harmonized System (HS) code: | 85176990 |
| Jumbo frames support: | Yes |
| Jumbo frames: | 9216 |
| Number of queues: | 4 |
| MAC address table: | 8000 entries |
| Packet buffer memory: | 0.512 MB |
| Forwarding rate: | 35.7 Mpps |
| Switching capacity: | 48 Gbit/s |
-
Unmanaged/Easy Smart Rackmountable Switch_Installation Guide
-
Product Brochure
-
Easy Smart Configuration Utility(UN)_User Guide
-
Rackmount Switch(EU2-12Languages)_ Installation Guide
-
Switches(EU1_13Languages)_Quick Installation Guide
-
Switch Overview of Regulatory Compliance(UN)
-
Easy Smart Switch(UN)_User Guide
-
Wall Mountable Switches_Wall Mounting Guide
