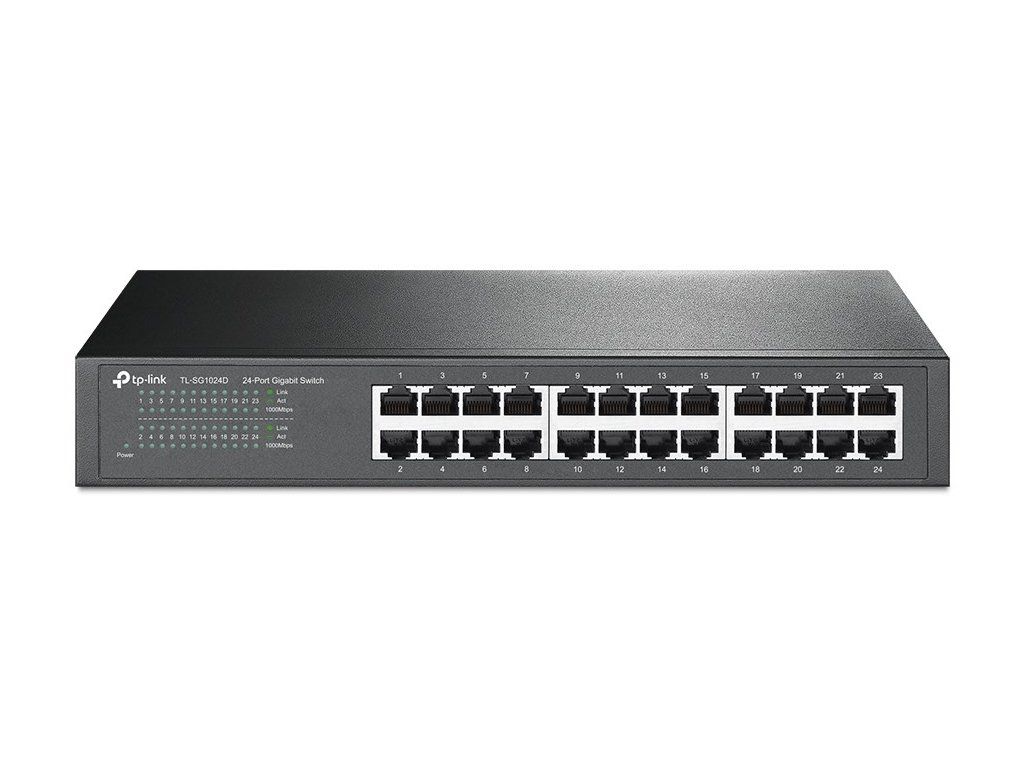

TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Switches |
|---|---|
| Greutate: | 2 kg |
| EAN: | 6935364020620 |
| Rack mounting: | Yes |
| Stackable: | Yes |
| LED indicators: | Yes |
| Product colour: | Grey |
| Certification: | FCC, CE, RoHS |
| Power supply included: | Yes |
| Power consumption (max): | 13.62 W |
| AC input voltage: | 100 - 240 V |
| Power source: | AC |
| AC input frequency: | 50 - 60 Hz |
| Operating temperature (T-T): | 32 - 104 °F, 0 - 40 °C |
| Heat dissipation: | 46.44 BTU/h |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 5 - 90% |
| Switch type: | Unmanaged |
| Quality of Service (QoS) support: | Yes |
| Height: | 44 mm |
| Depth: | 180 mm |
| Width: | 294 mm |
| Cable types supported: | Cat4, Cat3, Cat5, Cat5e |
| Full duplex: | Yes |
| Auto-negotiation: | Yes |
| Auto MDI/MDI-X: | Yes |
| Flow control support: | Yes |
| 10G support: | No |
| Networking standards: | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Rack mount kit: | Yes |
| Package depth: | 400 mm |
| Package width: | 250 mm |
| User guide: | Yes |
| Package weight: | 1.95 kg |
| Cables included: | AC |
| Package type: | Box |
| Package height: | 80 mm |
| Supported network protocols: | CSMA/CD, TCP/IP |
| Power connector: | DC-in jack |
| Basic switching RJ-45 Ethernet ports quantity: | 24 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity: | 24 |
| Power requirements: | 100 - 240V, 50/60Hz |
| Bandwidth: | 48 Gbit/s |
| Connectivity LEDs: | Y |
| Dimensions (WxDxH): | 294 x 180 x 44 mm |
| Connectivity technology: | Wired |
| Networking features: | Gigabit Ethernet |
| Harmonized System (HS) code: | 85176990 |
| Switching capacity: | 48 Gbit/s |
| MAC address table: | 8000 entries |
| Supported data transfer rates: | 10/100/100 Mbps |
| Forwarding rate: | 35.7 Mpps |
| Jumbo frames: | 10000 |
| Maximum data transfer rate: | 1 Gbit/s |
| Store-and-forward: | Yes |
| Jumbo frames support: | Yes |
| Power over Ethernet (PoE): | No |
-
Rackmount Switch(EU2-12Languages)_ Installation Guide
-
Unmanaged Rackmount Switches(EU1_13Languages)_Quick Installation Guide
-
Product Brochure
