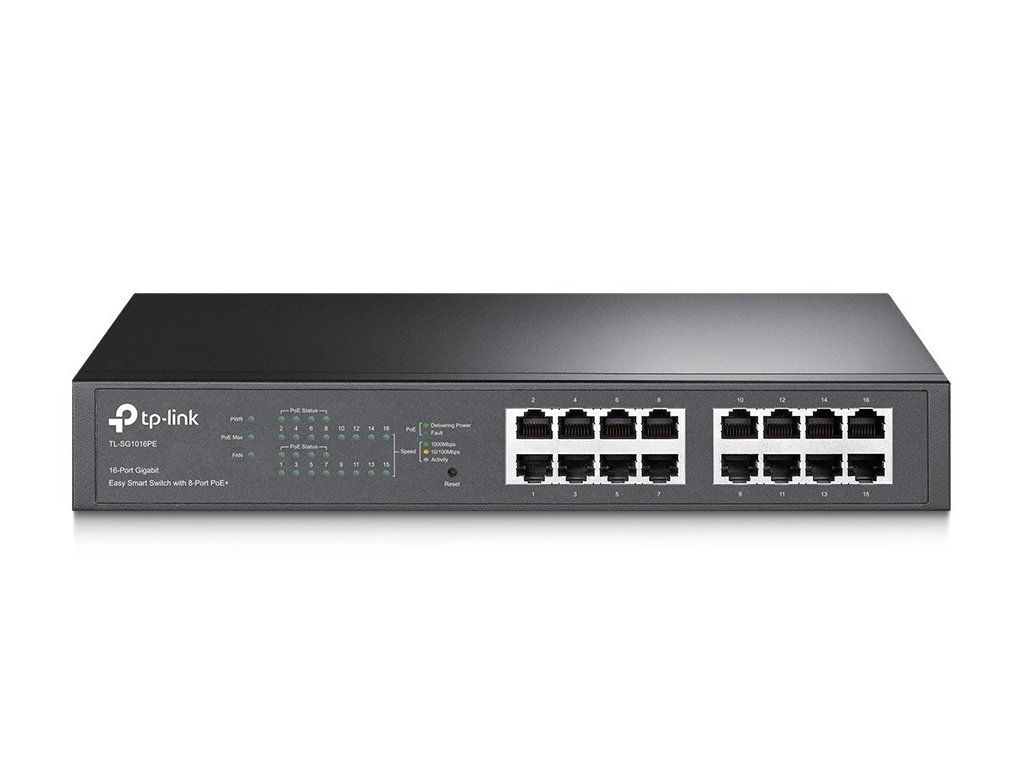

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Switches |
|---|---|
| Greutate: | 2.58 kg |
| EAN: | 6935364098865 |
| Rack mounting: | Yes |
| Product colour: | Black |
| Form factor: | 1U |
| Housing material: | Metal |
| LED indicators: | Yes |
| Number of fans: | 1 fan(s) |
| Stackable: | No |
| AC input frequency: | 50/60 Hz |
| Power supply included: | Yes |
| AC input voltage: | 100 - 240 V |
| Power consumption (max): | 124.4 W |
| Power source: | AC/PoE |
| IGMP snooping: | Yes |
| Operating relative humidity (H-H): | 10 - 90% |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Storage relative humidity (H-H): | 5 - 90% |
| Web-based management: | Yes |
| Quality of Service (QoS) support: | Yes |
| Switch type: | Managed |
| Switch layer: | L2 |
| Width: | 294 mm |
| Depth: | 180 mm |
| Height: | 44 mm |
| Networking standards: | IEEE 802.1Q, IEEE 802.3i, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u |
| Port mirroring: | Yes |
| Number of VLANs: | 4000 |
| 10G support: | No |
| VLAN support: | Yes |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X: | Yes |
| Auto-negotiation: | Yes |
| Flow control support: | Yes |
| Broadcast storm control: | Yes |
| Cable types supported: | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Virtual LAN features: | Port-based VLAN, Tagged VLAN |
| Link aggregation: | Yes |
| Maximum cable length: | 100 m |
| Compatible operating systems: | Windows |
| Package weight: | 2.28 kg |
| Package height: | 80 mm |
| Package width: | 250 mm |
| Package depth: | 400 mm |
| Package type: | Box |
| Resource CD: | Yes |
| Cables included: | AC |
| User guide: | Yes |
| Rack mount kit: | Yes |
| Compliance certificates: | RoHS, CE, Federal Communications Commission (FCC) |
| Power connector: | AC-in jack |
| Basic switching RJ-45 Ethernet ports quantity: | 16 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity: | 16 |
| Switching capacity: | 32 Gbit/s |
| MAC address table: | 8000 entries |
| Packet buffer memory: | 4.1 MB |
| Jumbo frames support: | Yes |
| Store-and-forward: | Yes |
| Forwarding rate: | 23.8 Mpps |
| Number of queues: | 4 |
| Jumbo frames: | 10000 |
| Power over Ethernet (PoE): | Yes |
| Total Power over Ethernet (PoE) budget: | 110 W |
| Power over Ethernet (PoE) power per port: | 30 W |
| Power over Ethernet plus (PoE+) ports quantity: | 8 |
| Warnings: | Ensure the unit is adequately ventilated during operation., Do not open the case or try to repair it yourself., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Sustainability compliance: | Yes |
-
