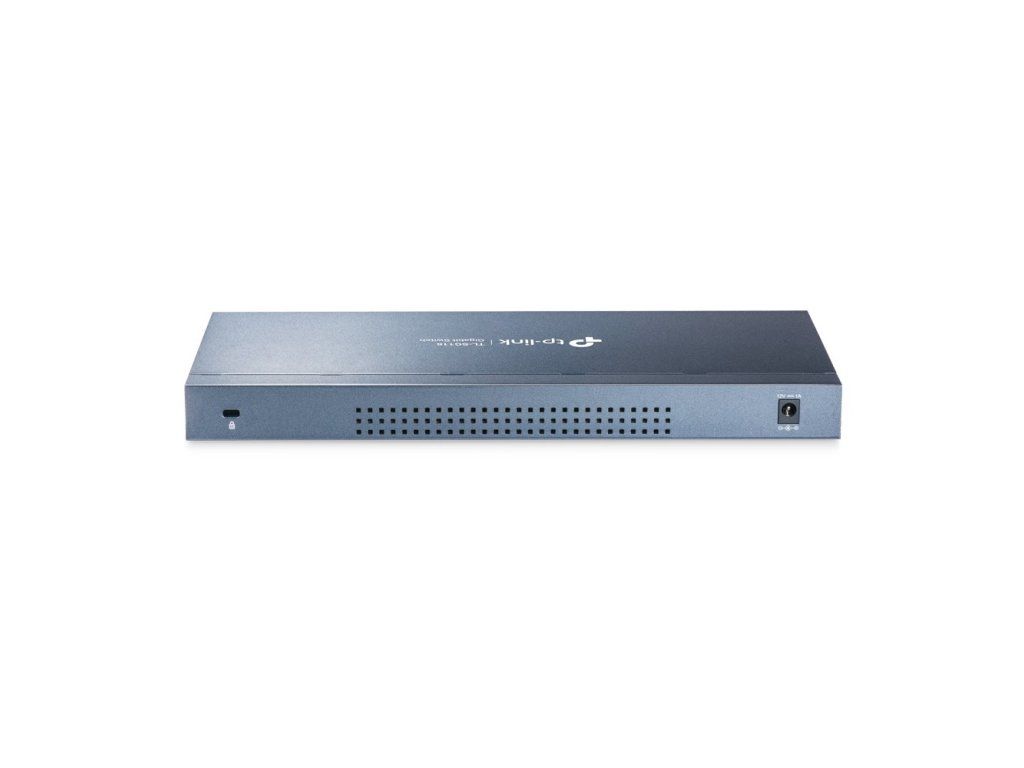

TP-Link 16-Port Gigabit Desktop Network Switch
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Switches |
|---|---|
| Greutate: | 1.304 kg |
| EAN: | 6935364084325 |
| Rack mounting: | No |
| Housing material: | Steel |
| LED indicators: | Yes |
| Product colour: | Black |
| Power supply included: | Yes |
| Power source: | DC |
| Input voltage: | 12 V |
| Input current: | 1 A |
| Power consumption (max): | 10 W |
| IGMP snooping: | Yes |
| Heat dissipation: | 34.12 BTU/h |
| Storage relative humidity (H-H): | 5 - 90% |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating temperature (T-T): | 0 - 40 °C |
| Switch type: | Unmanaged |
| Quality of Service (QoS) support: | Yes |
| Width: | 286 mm |
| Height: | 25.4 mm |
| Depth: | 111.7 mm |
| Copper ethernet cabling technology: | 1000BASE-T, 10BASE-T, 100BASE-TX |
| 10G support: | No |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Auto-negotiation: | Yes |
| Networking standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3u |
| Auto MDI/MDI-X: | Yes |
| Plug and Play: | Yes |
| Rubber feet: | Yes |
| Package weight: | 1.33 kg |
| Package width: | 170 mm |
| Package type: | Box |
| Package depth: | 412 mm |
| AC adapter included: | Yes |
| Package height: | 70 mm |
| Quick start guide: | Yes |
| Gigabit Ethernet (copper) ports quantity: | 16 |
| Basic switching RJ-45 Ethernet ports quantity: | 16 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Harmonized System (HS) code: | 85176990 |
| Switching capacity: | 32 Gbit/s |
| Jumbo frames: | 10000 |
| Store-and-forward: | Yes |
| Jumbo frames support: | Yes |
| Forwarding rate: | 23.8 Mpps |
| Packet buffer memory: | 4.1 MB |
| MAC address table: | 8000 entries |
| Power over Ethernet (PoE): | No |
| Warnings: | Do not open the case or try to repair it yourself., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Ensure the unit is adequately ventilated during operation. |
-
Product Brochure
-
TL-SG116(UN)_V1_Installation Guide
-
Switch Overview of Regulatory Compliance(UN)
-
Wall Mountable Switches_Wall Mounting Guide
