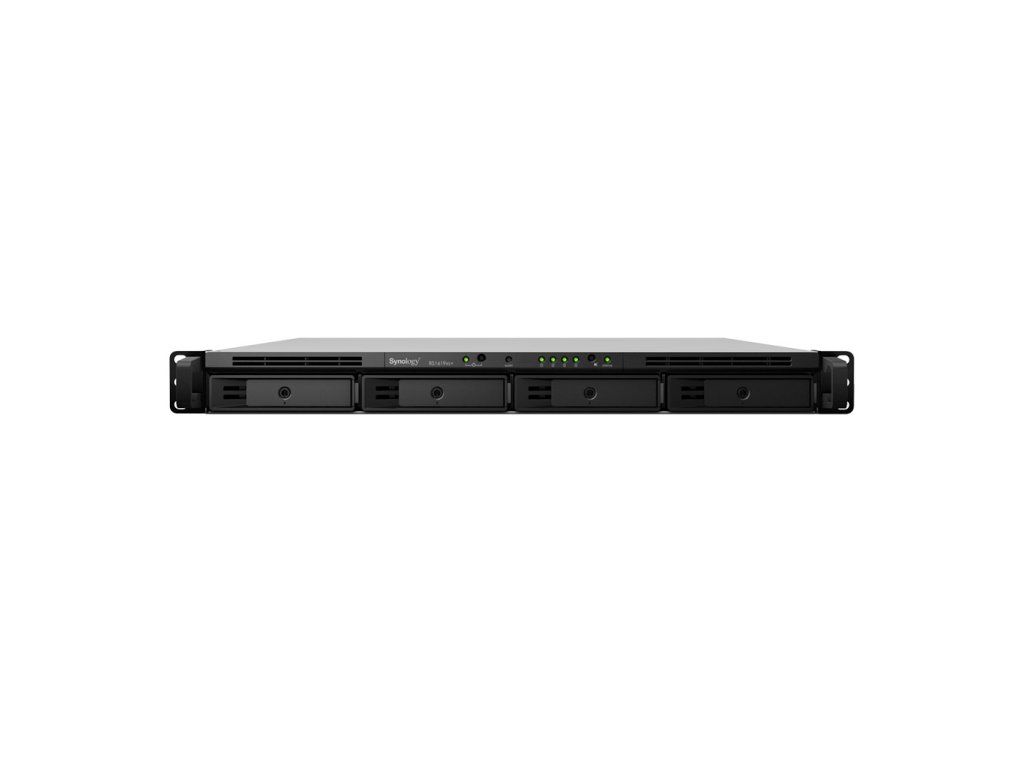

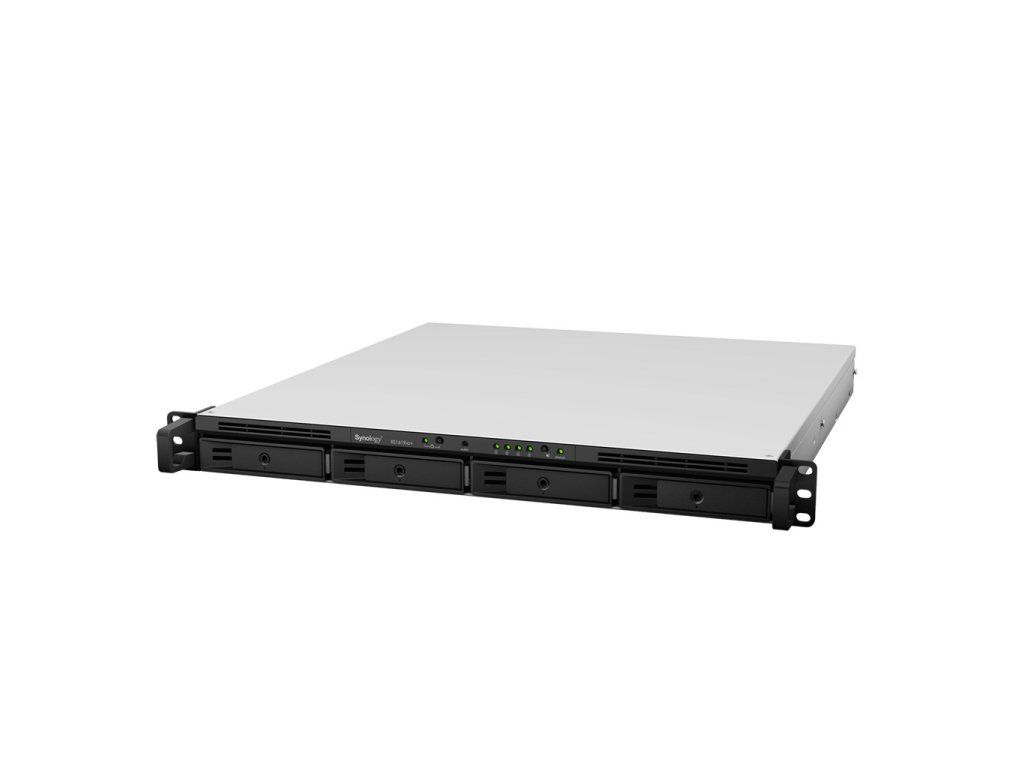

Synology RackStation RS1619XS+ NAS/storage server Rack (1U) Intel® Xeon® D D-1527 8 GB DDR4 0 TB DiskStation Manager Black
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | NAS - file servers |
|---|---|
| Greutate: | 11.38 kg |
| EAN: | 4711174723065 |
| Maximum internal memory supported by processor: | 128 GB |
| Thermal Design Power (TDP): | 35 W |
| Processor socket: | BGA 1667 |
| ECC supported by processor: | Yes |
| Processor operating modes: | 64-bit |
| PCI Express slots version: | 3.0, 2.0 |
| Processor cores: | 4 |
| Processor model: | D-1527 |
| On-board graphics card model: | Not available |
| Processor boost frequency: | 2.7 GHz |
| Scalability: | 1S |
| Stepping: | V2 |
| Processor threads: | 8 |
| Processor family: | Intel® Xeon® D |
| Processor series: | Intel Xeon D-1500 |
| Processor manufacturer: | Intel |
| Processor cache: | 6 MB |
| Processor frequency: | 2.2 GHz |
| Conflict-Free processor: | Yes |
| CPU configuration (max): | 1 |
| Processor code: | SR2DK |
| Processor cache type: | L3 |
| Processor lithography: | 14 nm |
| Processor codename: | Broadwell |
| PCI Express configurations: | 1x4, 1x8, 1x16 |
| Processor package size: | 37.5 x 37.5 mm |
| Memory slots: | 4 |
| Internal memory: | 8 GB |
| Internal memory type: | DDR4 |
| Maximum RAM supported: | 64 GB |
| Chassis type: | Rack (1U) |
| Fan diameter: | 4 cm |
| Number of fans: | 2 fan(s) |
| LED indicators: | Power, HDD, Alarm, Status |
| Cooling type: | Active |
| Product colour: | Black |
| Power consumption (typical): | 68.68 W |
| Power supply unit (PSU) capacity: | 150 W |
| Number of power supply units: | 2 |
| Power consumption (HDD standby): | 34.78 W |
| Power supply location: | Built-in |
| AC input frequency: | 50 - 60 Hz |
| AC input voltage: | 100 - 240 V |
| Operating altitude: | 0 - 5000 m |
| Operating relative humidity (H-H): | 5 - 95% |
| Operating temperature (T-T): | 5 - 35 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Height: | 44 mm |
| Depth: | 518.6 mm |
| Weight: | 8.16 kg |
| Width: | 480 mm |
| Link aggregation: | Yes |
| Supported network protocols: | CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| Ethernet LAN: | Yes |
| Wake-on-LAN ready: | Yes |
| Ethernet LAN data rates: | 100, 1000 Mbit/s, 10 |
| Wi-Fi: | No |
| iSCSI support: | Yes |
| On/off switch: | Yes |
| Security algorithms: | SSH, HTTPS, SSL/TLS |
| Browser supported: | Chrome, Firefox, Internet Explorer 10+, Safari 10+ |
| Type: | NAS |
| Noise level: | 39.3 dB |
| Multilingual support: | Yes |
| Backup features: | Cloud, iSCSI LUN |
| Device class: | Small & Medium Business |
| Access Control List (ACL): | Yes |
| Web-based management: | Yes |
| Backup function: | Yes |
| Reset button: | Yes |
| Cables included: | AC |
| Quick installation guide: | Yes |
| Execute Disable Bit: | Yes |
| Intel VT-x with Extended Page Tables (EPT): | Yes |
| Intel® Secure Key: | Yes |
| Memory types supported by processor: | DDR4-SDRAM, DDR3-SDRAM |
| Intel Virtualization Technology (VT-x): | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d): | Yes |
| Enhanced Intel SpeedStep Technology: | Yes |
| Intel 64: | Yes |
| Maximum number of PCI Express lanes: | 32 |
| Intel Enhanced Halt State: | Yes |
| Memory channels supported by processor: | Dual |
| Embedded options available: | Yes |
| Intel Trusted Execution Technology: | Yes |
| Intel® Turbo Boost Technology: | 2.0 |
| Intel TSX-NI: | Yes |
| Intel TSX-NI version: | 1.00 |
| UART: | Yes |
| Idle States: | Yes |
| Intel Secure Key Technology version: | 1.00 |
| Intel® OS Guard: | Yes |
| Intel® AES New Instructions (Intel® AES-NI): | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology): | Yes |
| Thermal Monitoring Technologies: | Yes |
| Operating system installed: | DiskStation Manager |
| Windows operating systems supported: | Windows 7, Windows 10 |
| Server operating systems supported: | Windows Server 2016 |
| Mac operating systems supported: | Mac OS X 10.13 High Sierra, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.11 El Capitan |
| Supported file systems: | BTRFS, Fat, ext4, ext3, NTFS, HFS+ |
| Total installed storage capacity: | 0 TB |
| Storage drive interface: | Serial ATA, Serial ATA II, Serial ATA III |
| Number of storage drives supported: | 4 |
| Installed storage drive type: | No |
| Number of M.2 (M & B) slots: | 2 |
| Storage drive sizes supported: | 3.5", 2.5 |
| Hot-swap drive bays: | Yes |
| Storage drive capacity: | 0 GB |
| Storage drives installed: | No |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 1, JBOD, 10, 5, 6, 0 |
| RAID support: | Yes |
| Ethernet LAN (RJ-45) ports: | 4 |
| USB port: | Yes |
| PCI Express x8 (Gen 3.x) slots: | 1 |
| Expansion ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Compliance certificates: | RoHS |
| Processor ARK ID: | 91195 |
| Certification: | EAC VCCI RCM FCC CE BSMI |
| Harmonized System (HS) code: | 84714100 |
| Warnings: | Do not dispose of the device in the regular rubbish bin. The product requires special disposal., Avoid contact with liquids., Do not dismantle the appliance yourself. |
