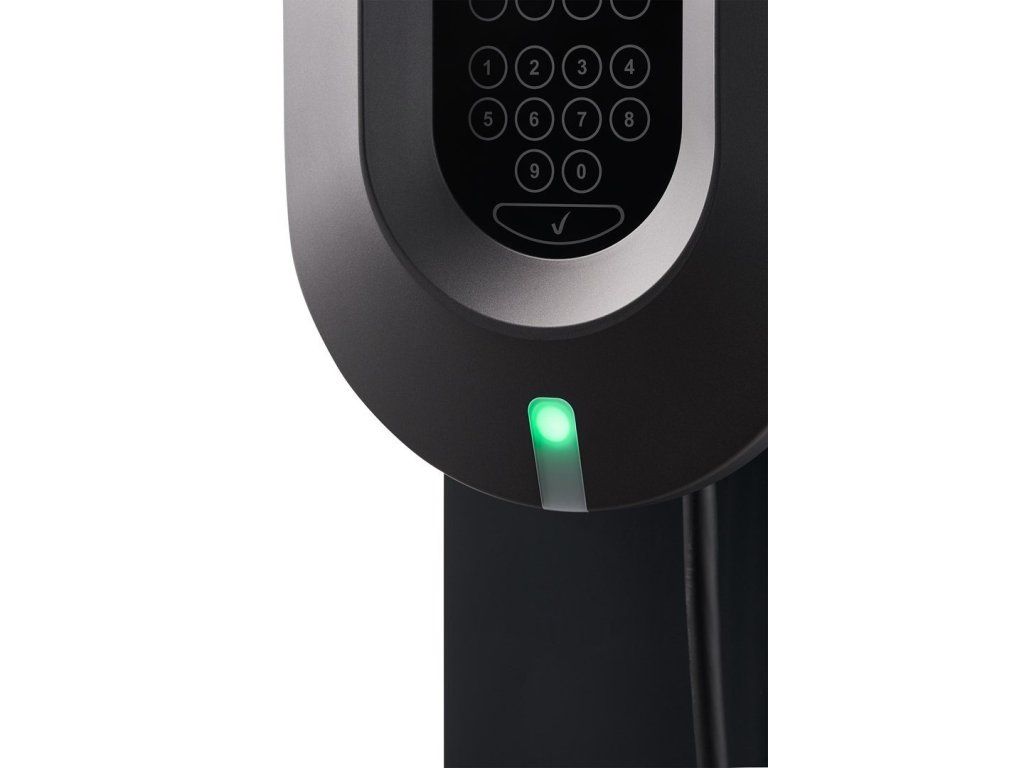

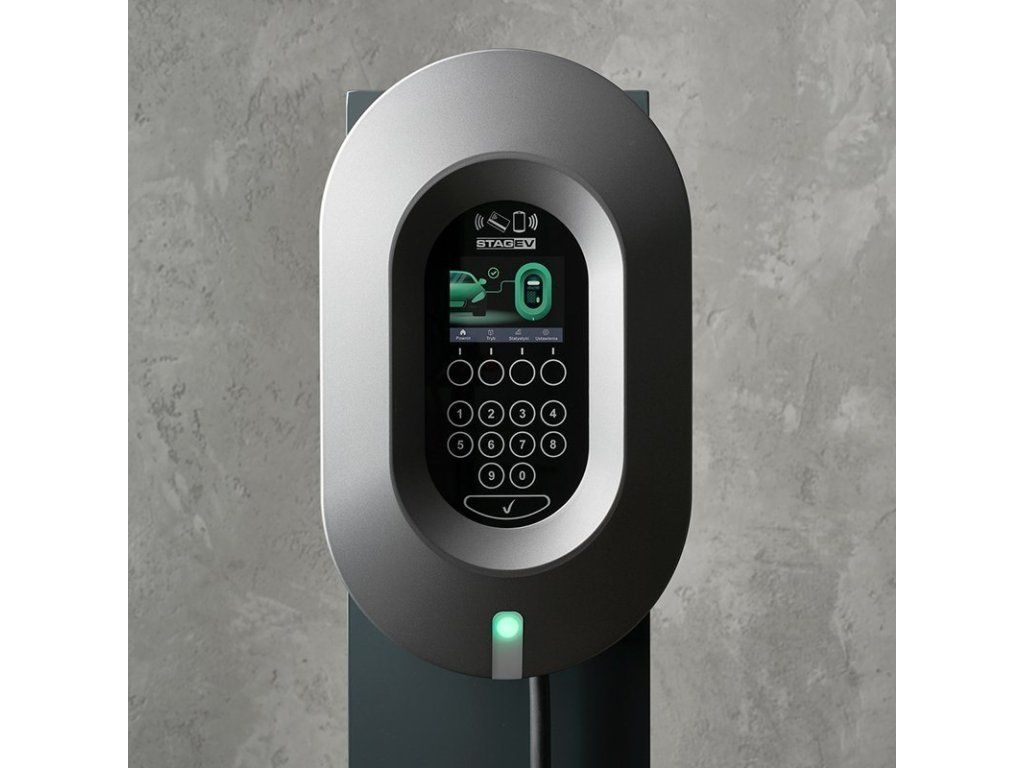

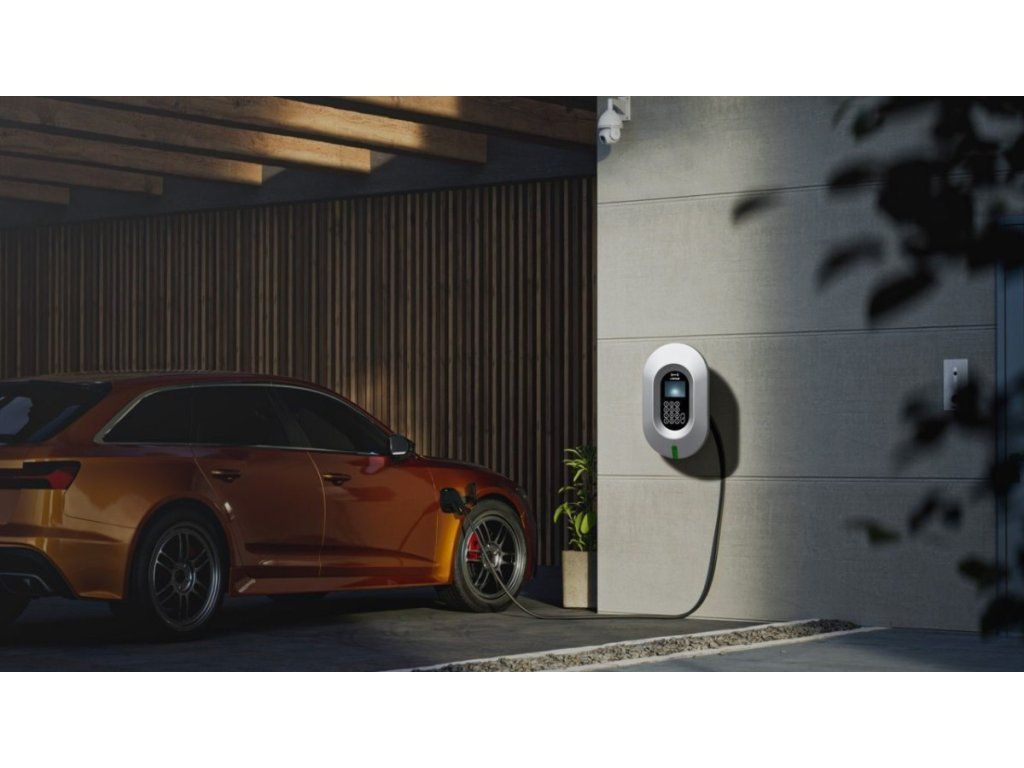

STAG EV CORE Charging Station (without charging cable/230V)
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | DC charging stations |
|---|---|
| Greutate: | 4.35 kg |
| EAN: | 5903022040809 |
| Safety notices link: | https://www.stag-ev.com |
| Compliance certificates: | Electromagnetic Compatibility (EMC), RoHS |
| PSTI certified: | No |
| Product supplier data: | Brand: STAGEV; Manufactured: AC S.A., Address: ul. 42 Pułku Piechoty 50, 15‑181 Białystok, Poland; Website: www.stag-ev.com |
| Recycling codes: | PELD/LDPE (Low-density polyethylene), PAP (Corrugated fiberboard (cardboard) |
| Safety warning: | Installation and service only by qualified electrician; disconnect from mains before opening; follow manuals |
| Suitable for: | Outdoor |
| Built-in display: | Yes |
| Bluetooth: | No |
| Display type: | LCD |
| Socket type: | Type 2 |
| Wi-Fi: | Yes |
| Charging current: | 16 A |
| Number of phases: | 3 |
| AC input frequency: | 50–60 |
| On/off switch: | No |
| Power cable length: | 5 m |
| International Protection (IP) code: | IP65 |
| Touchscreen: | Yes |
| Housing material: | Polycarbonate (PC), Glass |
| Charging voltage: | 230/400 V AC (L-N / L-L), 3-phase |
| Product colour: | White, Graphite |
| Handle(s): | Yes |
| Mounting type: | Wall |
| Output current: | 16 A |
| AC input voltage: | 230/400 V AC (L-N / L-L), 3-phase |
| Input current: | 16 A |
| Charging cable length: | 5 m |
| Cable entry location: | Rear, Bottom |
| Fault diagnose system: | Yes |
| Output power: | 11 kW |
| Compatible products: | EV/PHEV compliant with IEC 61851‑1 using Type 2 AC charging |
| Package width: | 310 mm |
| Width: | 230 mm |
| Height: | 390 mm |
| Depth: | 125 mm |
| Package height: | 275 mm |
| Package weight: | 3.7 kg |
| Package depth: | 510 mm |
| Weight: | 2.5 kg |
| UN number: | Not applicable / not classified as dangerous good |
| Country of origin: | Poland |
| Export Control Classification Number (ECCN): | EAR99 |
| Customs product code (TARIC): | 8537109170 |
| Warnings: | Do not use the unit in a damp or wet environment to avoid the risk of electric shock., Disconnect the unit from the power supply during maintenance or servicing., Before use, make sure the device is correctly installed by a qualified electrician. |
| Hazard pictogram(s): | GHS05: Corrosive, GHS04: Compressed gas |
