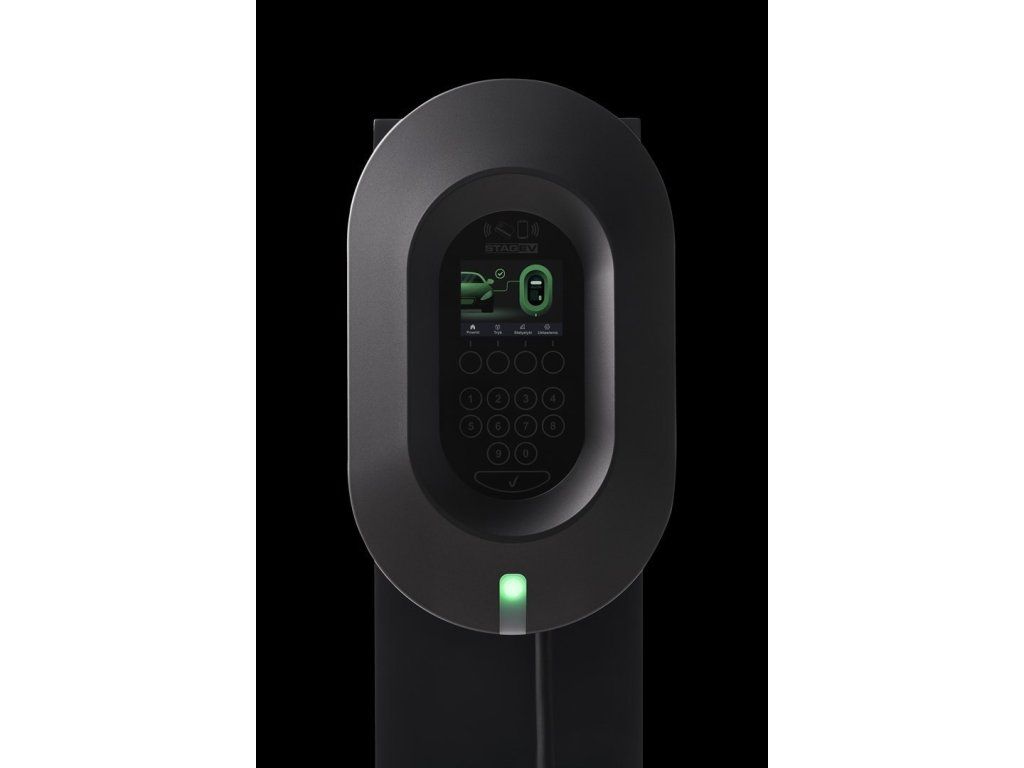

STAG EV CORE Charging Station (charging cable / 230 V socket)
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | DC charging stations |
|---|---|
| Greutate: | 5.9 kg |
| EAN: | 5903022040779 |
| Recycling codes: | PAP (Corrugated fiberboard (cardboard), PELD/LDPE (Low-density polyethylene) |
| Product supplier data: | Brand: STAGEV; Manufactured: AC S.A., Address: ul. 42 Pułku Piechoty 50, 15‑181 Białystok, Poland; Website: www.stag-ev.com |
| PSTI certified: | No |
| Compliance certificates: | RoHS, Electromagnetic Compatibility (EMC) |
| Safety warning: | Installation and service only by qualified electrician; disconnect from mains before opening; follow manuals |
| AC input voltage: | 230/400 V AC (L-N / L-L), 3-phase |
| Bluetooth: | No |
| Built-in display: | Yes |
| Output current: | 16 A |
| Product colour: | Graphite, White |
| Wi-Fi: | Yes |
| Input current: | 16 A |
| International Protection (IP) code: | IP65 |
| AC input frequency: | 50–60 |
| On/off switch: | No |
| Housing material: | Polycarbonate (PC), Glass |
| Touchscreen: | Yes |
| Socket type: | Type 2 |
| Mounting type: | Wall |
| Display type: | LCD |
| Charging voltage: | 230/400 V AC (L-N / L-L), 3-phase |
| Charging current: | 16 A |
| Power cable length: | 5 m |
| Handle(s): | Yes |
| Number of phases: | 3 |
| Suitable for: | Outdoor |
| Cable entry location: | Rear, Bottom |
| Output power: | 11 kW |
| Charging cable length: | 5 m |
| Fault diagnose system: | Yes |
| Compatible products: | EV/PHEV compliant with IEC 61851‑1 using Type 2 AC charging |
| Package height: | 275 mm |
| Package depth: | 510 mm |
| Depth: | 125 mm |
| Package width: | 310 mm |
| Weight: | 2.5 kg |
| Height: | 390 mm |
| Package weight: | 3.7 kg |
| Width: | 230 mm |
| UN number: | Not applicable / not classified as dangerous good |
| Country of origin: | Poland |
| Export Control Classification Number (ECCN): | EAR99 |
| Hazard pictogram(s): | GHS05: Corrosive, GHS04: Compressed gas |
| Warnings: | Do not use the unit in a damp or wet environment to avoid the risk of electric shock., Disconnect the unit from the power supply during maintenance or servicing., Before use, make sure the device is correctly installed by a qualified electrician. |
