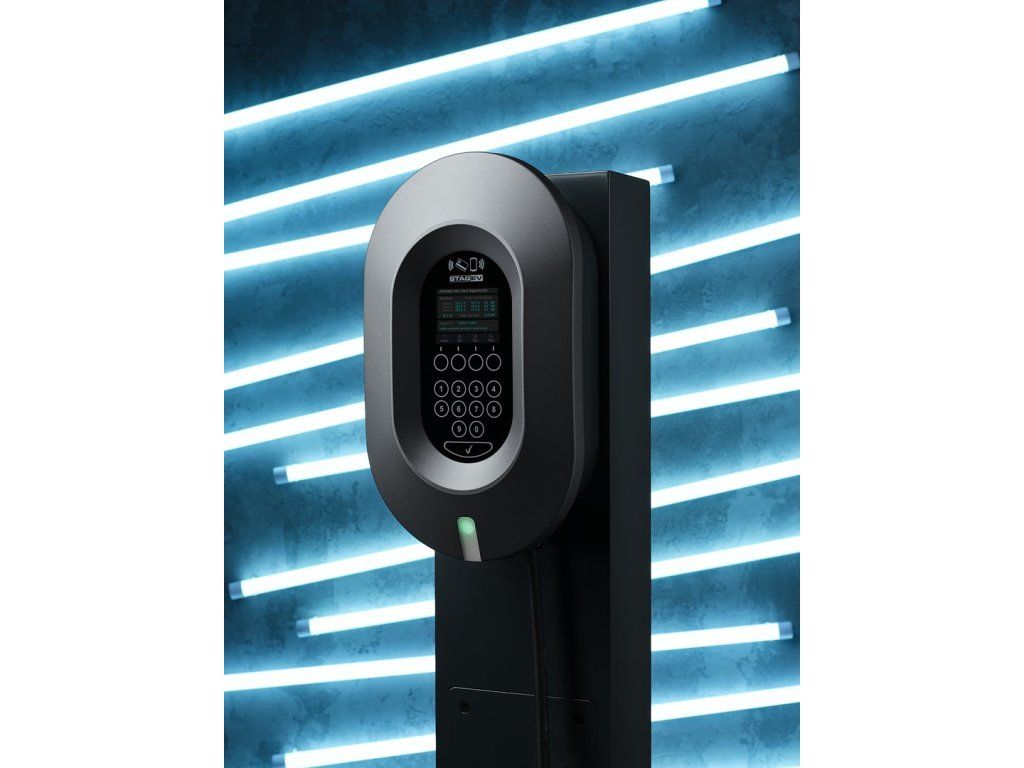

STAG EV CORE Charging Station (Charging Cable) White, Graphite
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | DC charging stations |
|---|---|
| Greutate: | 5.85 kg |
| EAN: | 5903022040700 |
| Pallet net length: | 120 cm |
| Pallet net height: | 2.1 m |
| Pallet net weight: | 120 kg |
| Warranty period: | 3 year(s) |
| Product supplier data: | Brand: STAGEV; Manufactured: AC S.A., Address: ul. 42 Pułku Piechoty 50, 15‑181 Białystok, Poland; Website: www.stag-ev.com |
| Pallet net width: | 80 cm |
| Package volume: | 43500 cm³ |
| Pallet gross weight: | 180 kg |
| Dangerous goods: | No |
| Pallet gross volume: | 2016 dm³ |
| Recycling codes: | PAP (Corrugated fiberboard (cardboard), PELD/LDPE (Low-density polyethylene) |
| Dispose of contents/container to (P501): | Dispose of equipment as WEEE and packaging via appropriate recycling streams |
| Total carbon footprint (kg of CO2e): | n/a (no product‑level CFP published) |
| PSTI certified: | No |
| Safety notices link: | https://www.stag-ev.com |
| Compliance certificates: | RoHS, Electromagnetic Compatibility (EMC) |
| Safety warning: | Installation and service only by qualified electrician; disconnect from mains before opening; follow manuals |
| Charging cable length: | 5 m |
| Output power: | 11 kW |
| Mounting type: | Wall |
| Power cable length: | 5 m |
| Output current: | 16 A |
| Fault diagnose system: | Yes |
| Charging current: | 16 A |
| Display type: | LCD |
| Housing material: | Polycarbonate (PC), Glass |
| Number of phases: | 3 |
| Handle(s): | Yes |
| Socket type: | Type 2 |
| Cable entry location: | Bottom, Rear |
| Touchscreen: | Yes |
| Charging voltage: | 230/400 V AC (L-N / L-L), 3-phase |
| Suitable for: | Outdoor |
| Wi-Fi: | Yes |
| AC input voltage: | 230/400 V AC (L-N / L-L), 3-phase |
| Input current: | 16 A |
| Built-in display: | Yes |
| Bluetooth: | No |
| Product colour: | White, Graphite |
| International Protection (IP) code: | IP65 |
| AC input frequency: | 50–60 |
| On/off switch: | No |
| Compatible products: | EV/PHEV compliant with IEC 61851‑1 using Type 2 AC charging |
| Height: | 390 mm |
| Package width: | 310 mm |
| Package depth: | 510 mm |
| Depth: | 125 mm |
| Package weight: | 3.7 kg |
| Width: | 230 mm |
| Package height: | 275 mm |
| Weight: | 2.5 kg |
| UN number: | Not applicable / not classified as dangerous good |
| Export Control Classification Number (ECCN): | EAR99 |
| Customs product code (TARIC): | 8537109170 |
| Country of origin: | Poland |
| Warnings: | Do not use the unit in a damp or wet environment to avoid the risk of electric shock., Disconnect the unit from the power supply during maintenance or servicing., Before use, make sure the device is correctly installed by a qualified electrician. |
| Hazard pictogram(s): | GHS04: Compressed gas, GHS05: Corrosive |
