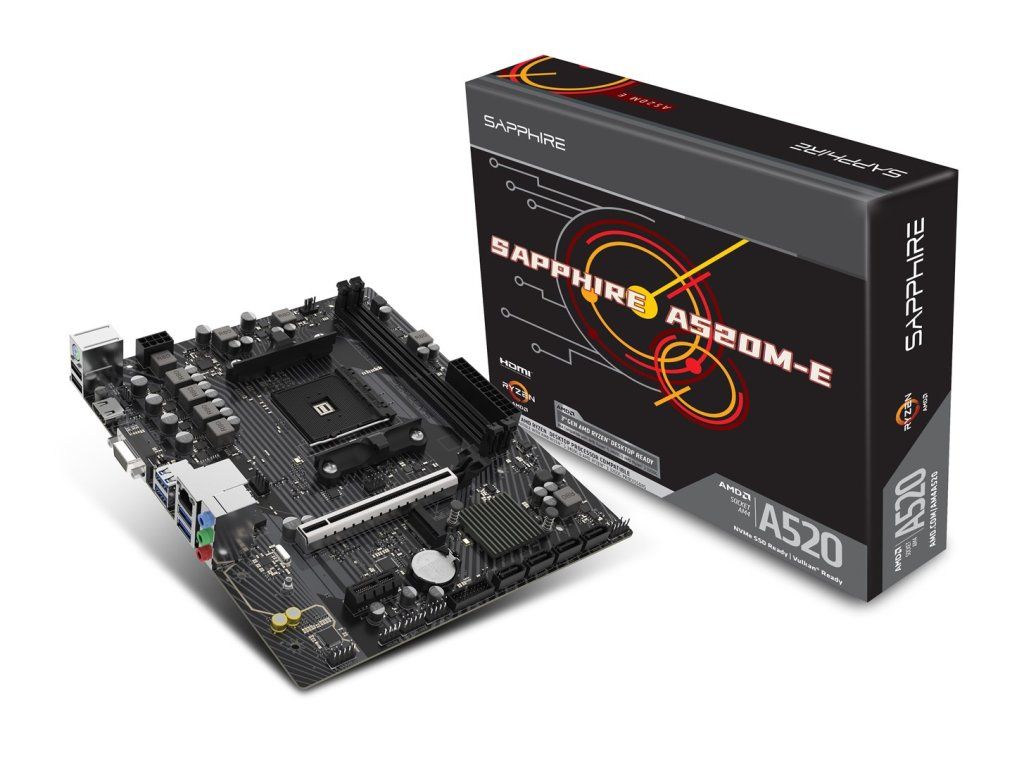

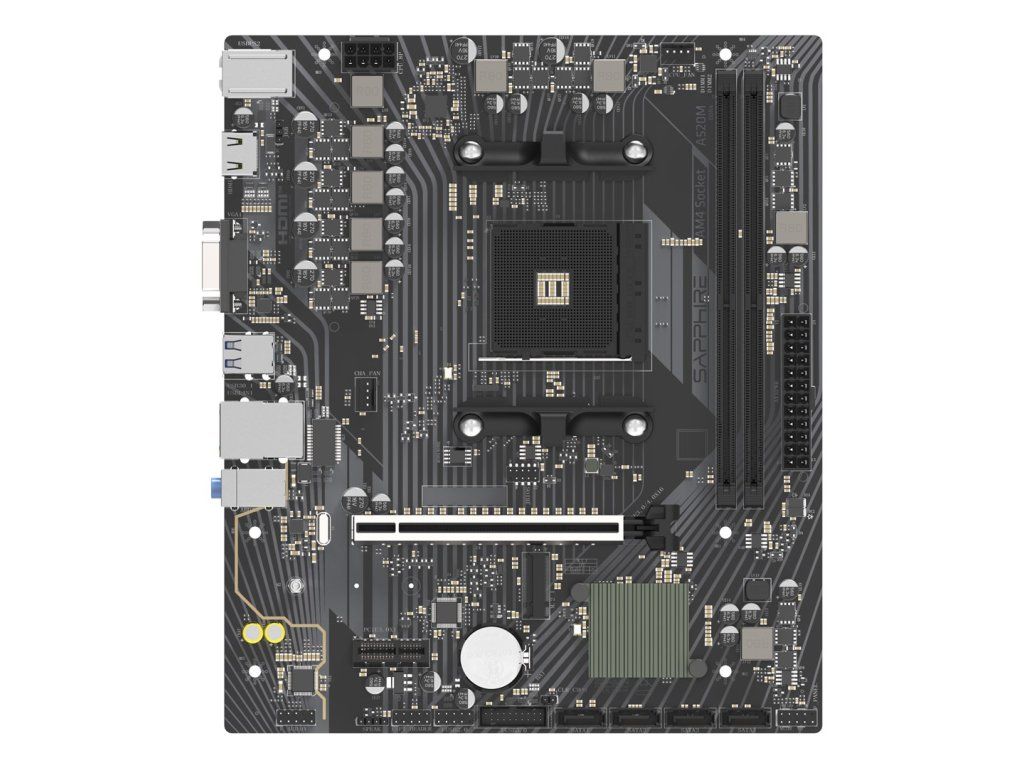

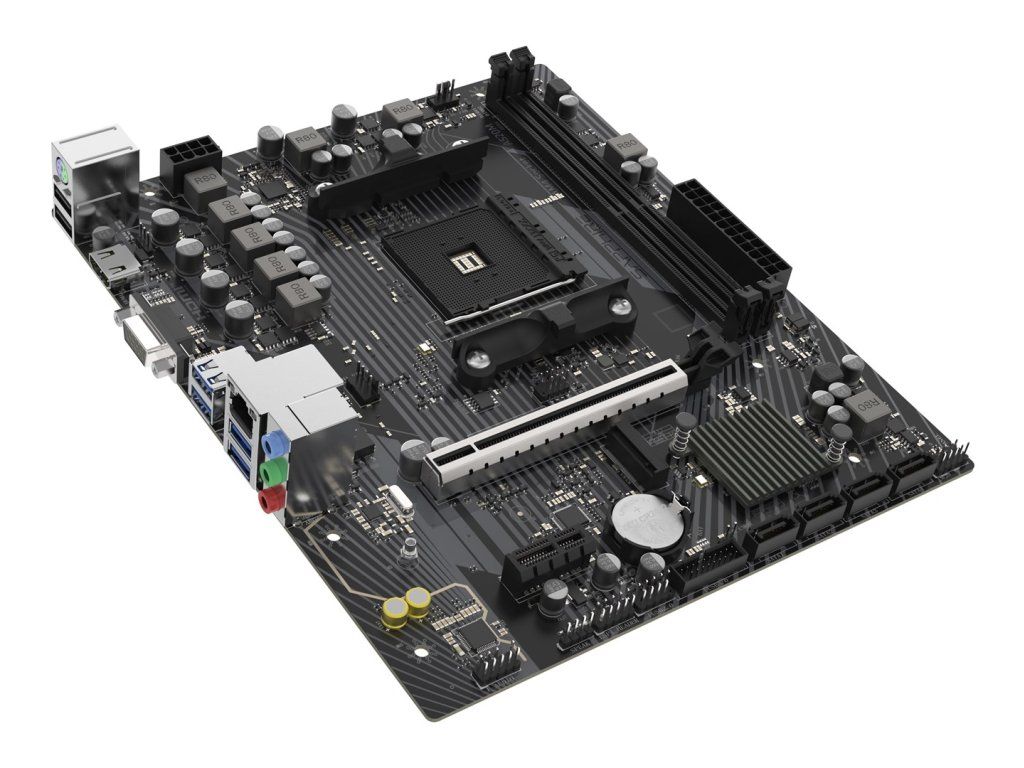

Sapphire A520M-E AMD A520 Socket AM4 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM4 |
|---|---|
| Greutate: | 0.82 kg |
| EAN: | 4895106296886 |
| Supported processor sockets: | Socket AM4 |
| Processor socket: | Socket AM4 |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series |
| Parallel processing technology support: | Not supported |
| Audio output channels: | 5.1 channels |
| Motherboard chipset: | AMD A520 |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family: | AMD |
| Product colour: | Black |
| Motherboard form factor: | micro ATX |
| Audio chip: | Realtek ALC897 |
| Maximum internal memory per slot: | 32 GB |
| Maximum internal memory: | 64 GB |
| Supported memory clock speed (max): | 3200 MHz |
| Memory slots type: | DIMM |
| Number of memory slots: | 2 |
| Supported memory types: | DDR4-SDRAM |
| Memory channels: | Dual-channel |
| Depth: | 197 mm |
| Width: | 230 mm |
| LAN controller: | Realtek RTL8111M |
| Wi-Fi: | No |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Number of CPU fan connectors: | 1 |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| USB 2.0 connectors: | 1 |
| Front panel connector: | Yes |
| CPU fan connector: | Yes |
| Number of chassis fan connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Audio connector: | Yes |
| Clear CMOS jumper: | Yes |
| Supported storage drive interfaces: | PCI Express 3.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| Number of storage drives supported: | 5 |
| USB connector type: | USB Type-A |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| VGA (D-Sub) ports quantity: | 1 |
| Microphone in: | Yes |
| PS/2 ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| Headphone outputs: | 3 |
| 1st M.2 highest PCI Express generation: | 3.0 |
| 1st M.2 largest key size: | 2280 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
