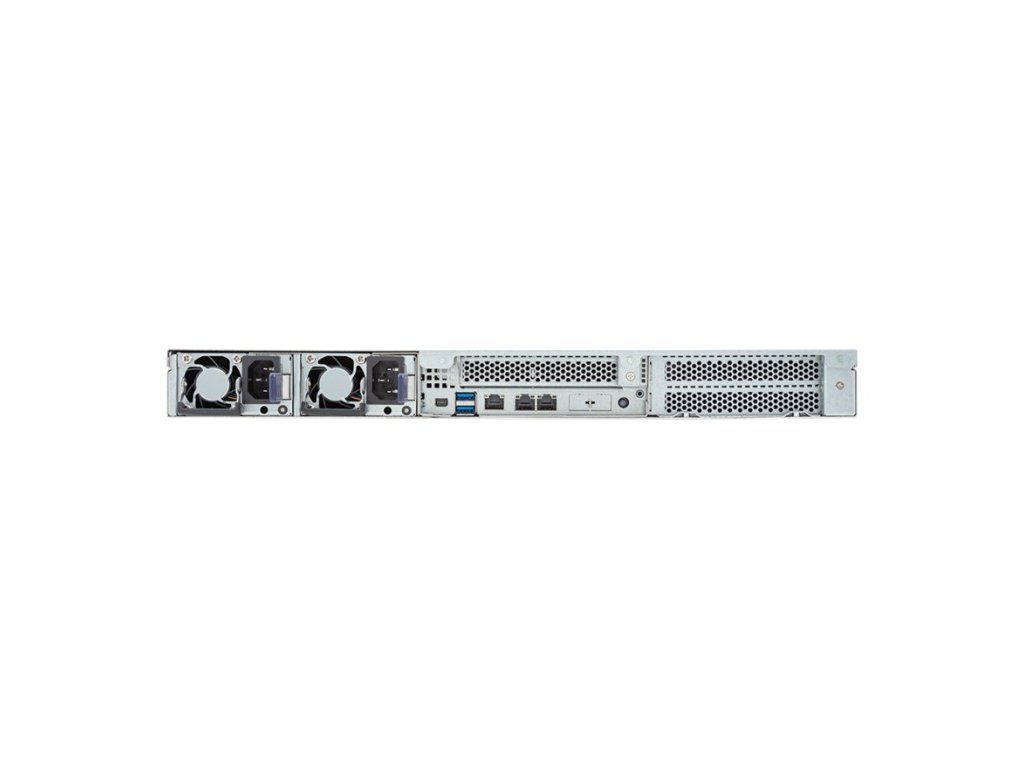

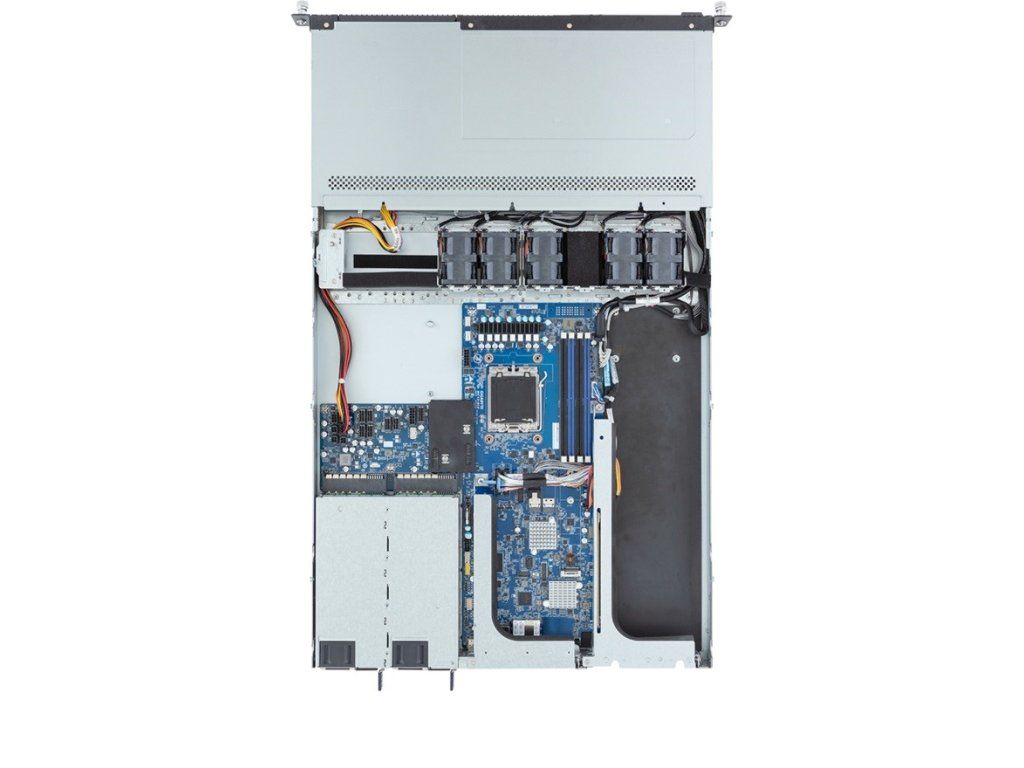

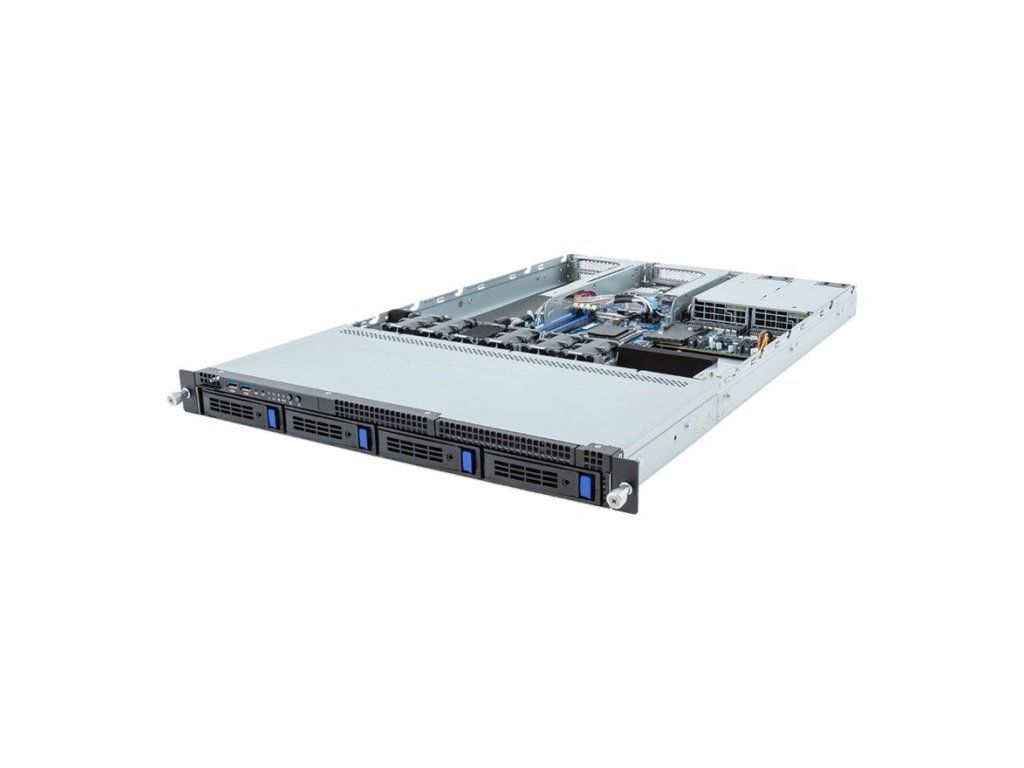

Rack server platform (1U) - Gigabyte R133-C13-ACG1
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Server platforms RACK |
|---|---|
| Greutate: | 20.2 kg |
| EAN: | 4719331873479 |
| Motherboard chipset: | AMD B650E |
| Processor family: | AMD |
| Built-in processor: | No |
| Processor socket: | Socket AM5 |
| Number of processors supported: | 1 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD EPYC 4004 Series |
| Processor manufacturer: | AMD |
| On-board graphics card: | Yes |
| On-board graphics card model: | Aspeed AST2600 |
| Trusted Platform Module (TPM) version: | 2.0 |
| Trusted Platform Module (TPM): | Yes |
| Number of DIMM slots: | 4 |
| Supported RDIMM clock speeds: | 3600 MHz, 4800 MHz, 4000, 4400 MHz, 5200 |
| Supported memory types: | DDR5 UDIMM |
| On/off switch: | Yes |
| Chassis type: | Rack (1U) |
| Product colour: | Black, Silver |
| LED indicators: | Yes |
| Power supply: | 800 W |
| 80 PLUS certification: | 80 PLUS Titanium |
| Redundant power supply: | Yes |
| Operating temperature (T-T): | 10 - 30 °C |
| Storage relative humidity (H-H): | 20 - 95% |
| Storage temperature (T-T): | -40 - 60 °C |
| Width: | 438 mm |
| Height: | 43.5 mm |
| Depth: | 710 mm |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Ethernet LAN: | Yes |
| LAN controller: | Broadcom BCM5720 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| PCI Express x4 (Gen 4.x) slots: | 1 |
| RAID levels: | 1, 10, 0 |
| Number of storage drives supported: | 2 |
| Supported storage drive types: | HDD & SSD |
| Storage drive sizes supported: | 3.5, 2.5 |
| Supported storage drive interfaces: | Serial ATA |
| Number of 2.5"/3.5" bays: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 2 |
| Mini DisplayPorts quantity: | 1 |
| Port Management LAN: | Yes, 1 |
| Warnings: | Do not disassemble the unit yourself., Do not throw into regular trash, product requires special disposal., The product may contain components that are harmful to health, use caution when handling. |
