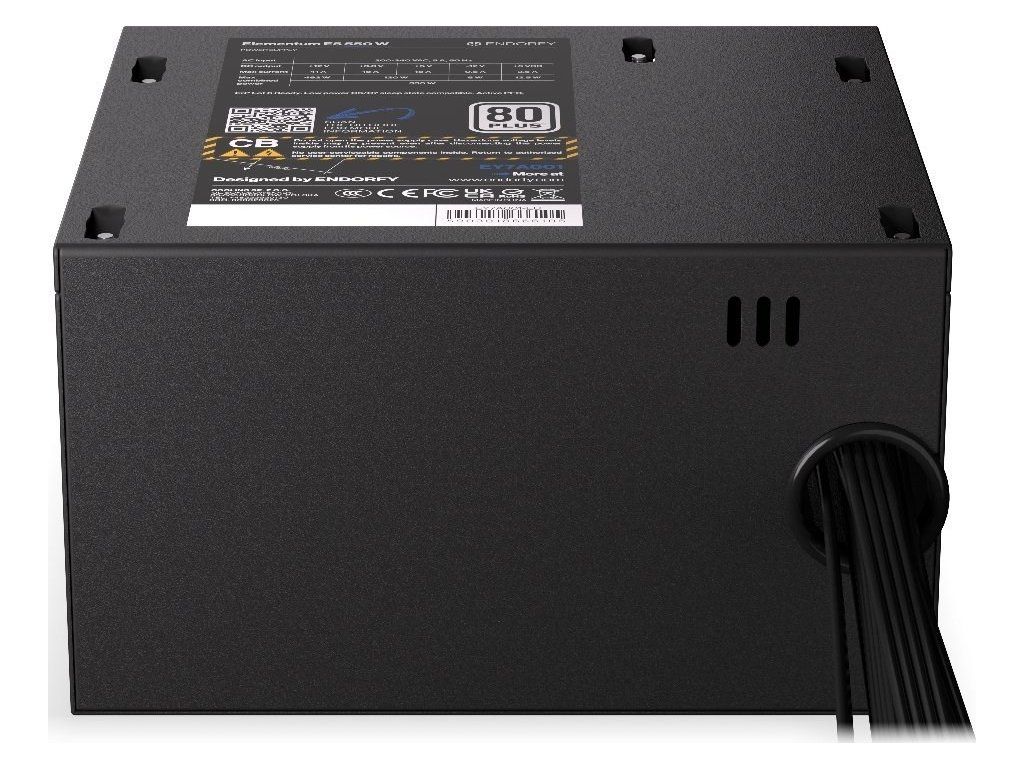

Power supply Endorfy Elementum E5 (EY7A001) 550 W
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 1.57 kg |
| EAN: | 5903018666105 |
| Cooling type: | Active |
| Product colour: | Black |
| On/off switch: | Yes |
| Fan location: | Top |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| AC input frequency: | 50 - 60 Hz |
| Total power: | 550 W |
| Power protection features: | UVP (undervoltage protection), OPP (overload protection), SIP (surge and shock protection), OVP (overvoltage protection), SCP (short circuit protection) |
| Power Factor Correction (PFC) type: | Active |
| Max output current (+3.3V): | 18 A |
| Max output current (+5Vsb): | 2.5 A |
| Max output current (+5V): | 18 A |
| Max output current (-12V): | 0.3 A |
| Depth: | 140 mm |
| Height: | 87 mm |
| Width: | 150 mm |
| 80 PLUS certification: | 80 PLUS |
| Power supply unit (PSU) form factor: | ATX |
| DFU / User manual: | Yes |
| Length of PCI Express power cable (6-pin): | 460 mm |
| PCI Express power connectors (6-pin): | 1 |
| Length of EPS power connectors (4+4 pin): | 70 cm |
| Power connector length 16 PIN PCIe GEN5: | Not applicable |
| Power connector 16 PIN PCIe GEN5: | No |
| Peripheral (Molex) power connectors (4-pin): | 2 |
| PCI Express power connectors (6+2 pin): | 1 |
| Number of SATA power connectors: | 4 |
| Peripheral (Molex) power cable length: | 410 mm, 555 mm |
| Motherboard power cable length: | 45 cm |
| SATA power cable length: | 555 mm, 410 mm, 700 mm |
| EPS power connector (4+4 pin): | Yes |
| Motherboard power connector: | 20+4 pin ATX |
| PCI Express power cable length: | 46 cm |
