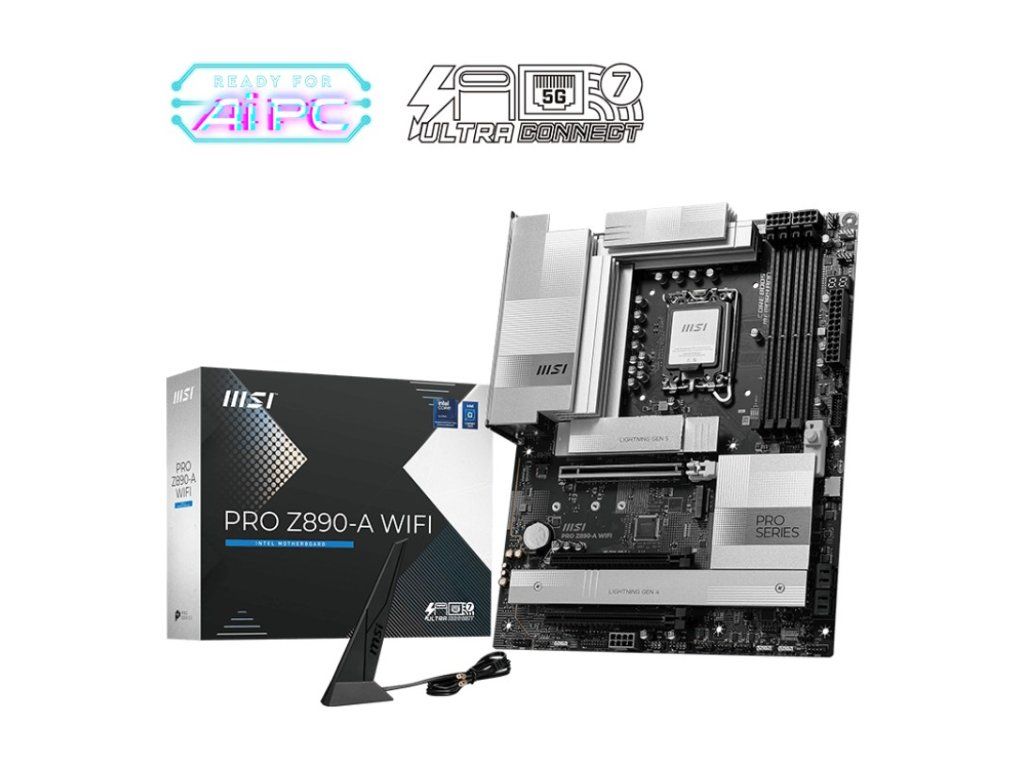

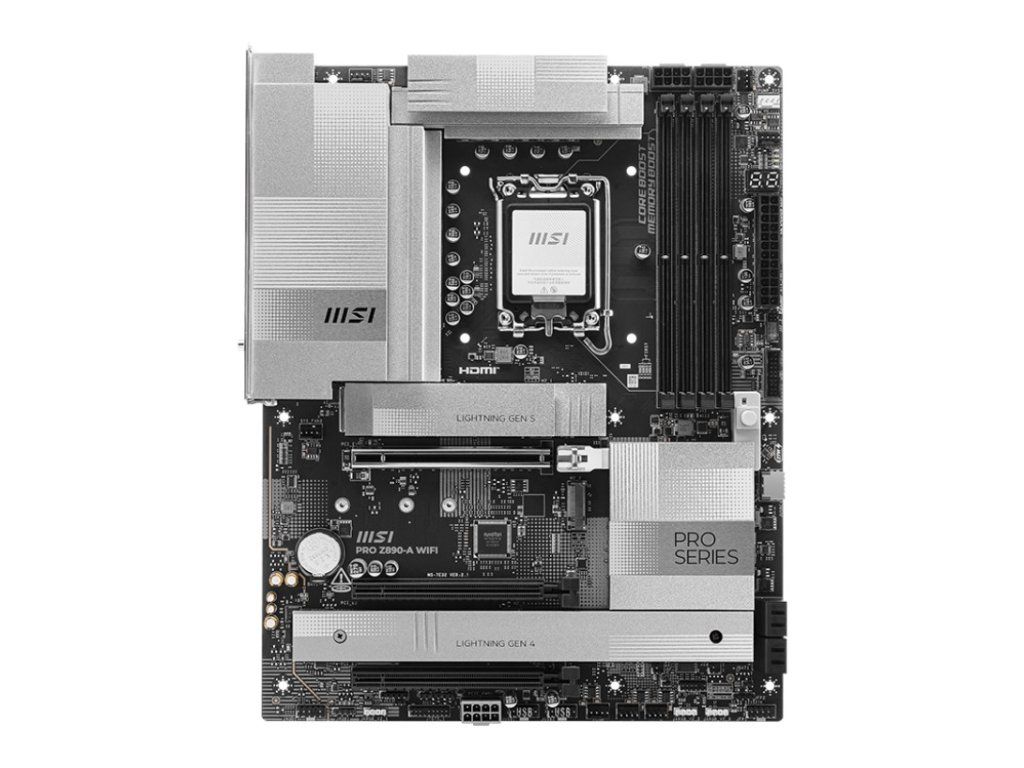

MSI PRO Z890-A WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1851 |
|---|---|
| Greutate: | 2.001 kg |
| EAN: | 4711377259729 |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Processor manufacturer: | Intel |
| Maximum internal memory supported by processor: | 256 GB |
| Processor socket: | LGA 1851 (Socket V1) |
| Supported processor sockets: | LGA 1851 |
| On-board graphics card: | No |
| Motherboard form factor: | ATX |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Product colour: | Black |
| Motherboard chipset: | Intel Z890 |
| Windows operating systems supported: | Windows 11 x64 |
| Supported memory clock speeds: | 6400 MHz, 9200 MHz |
| Maximum internal memory: | 256 GB |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Supported memory clock speed (max): | 9200 MHz |
| Number of memory slots: | 4 |
| ECC сompatibility: | Non-ECC |
| Width: | 243.8 mm |
| Depth: | 304.8 mm |
| Bluetooth: | Yes |
| Wi-Fi standards: | 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be) |
| Ethernet interface type: | 5 Gigabit Ethernet |
| Bluetooth version: | 5.4 |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| USB 2.0 connectors: | 4 |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| EPS power connector (8-pin): | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Total number of SATA connectors: | 4 |
| TPM connector: | Yes |
| Number of EPS power connectors (8-pin): | 1 |
| CPU fan connector: | Yes |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Number of HDDs supported: | 8 |
| RAID levels: | 10, 0, 1, 5 |
| Number of storage drives supported: | 4 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| HDMI ports quantity: | 1 |
| Thunderbolt ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 3 |
| PCI Express x16 (Gen 4.x) slots: | 2 |
| PCI Express x4 (Gen 4.x) slots: | 2 |
| Number of M.2 (M) slots: | 4 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Warnings: | Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician. |
