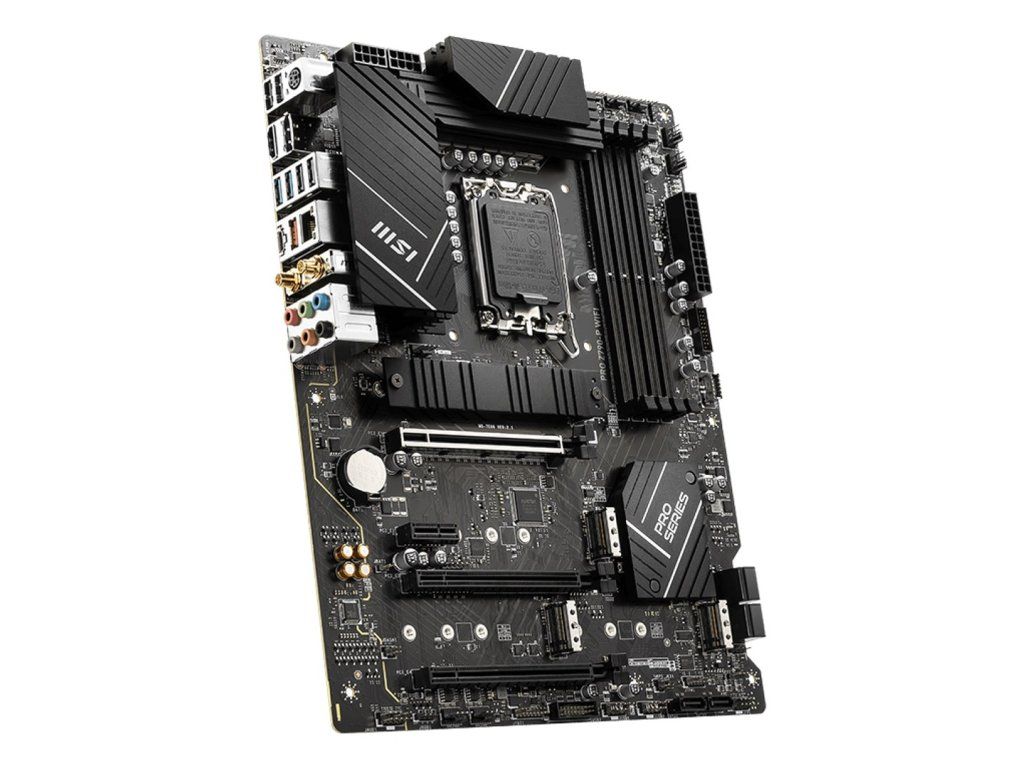

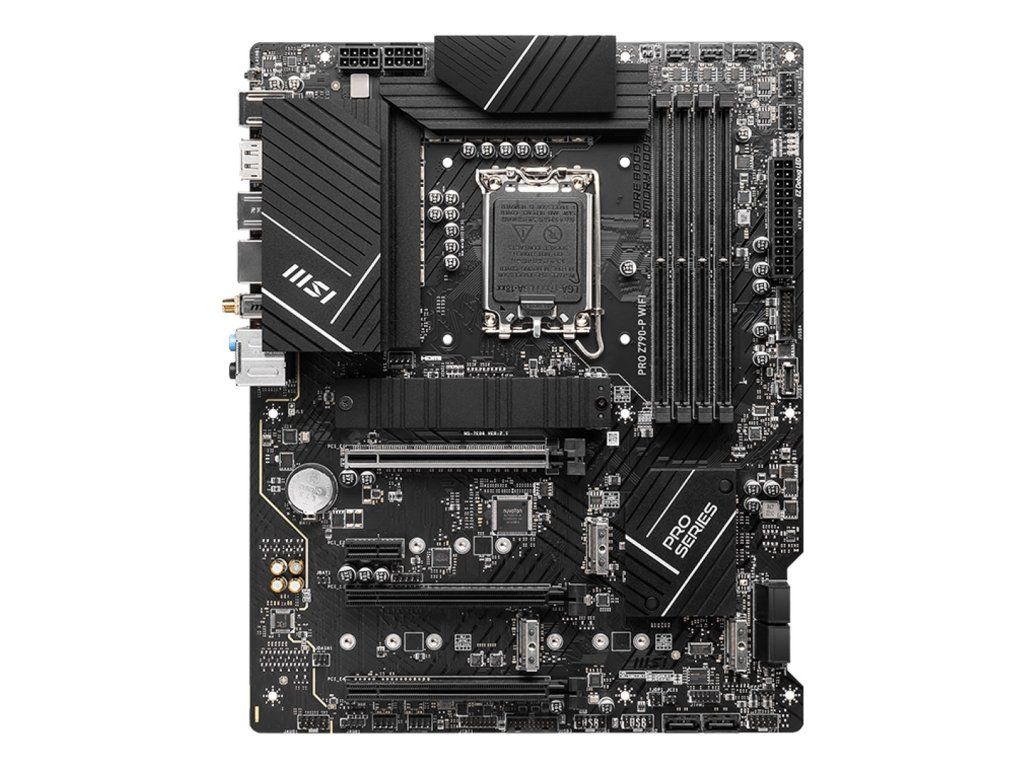

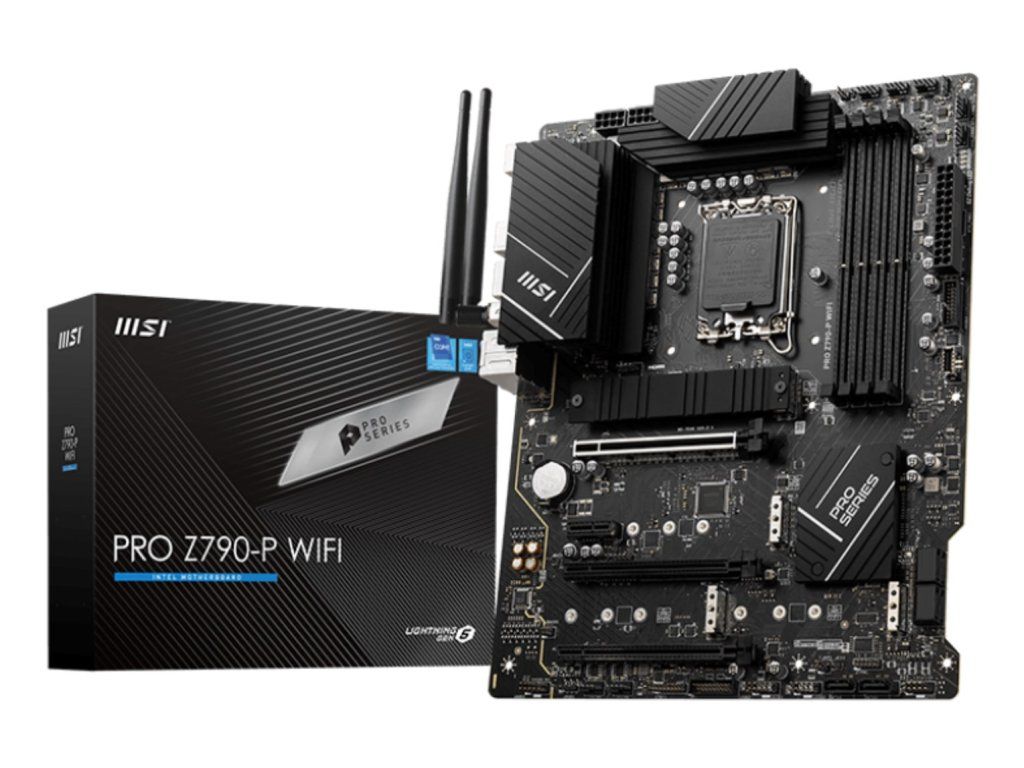

MSI PRO Z790-P WIFI motherboard Intel Z790 LGA 1700 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.45 kg |
| EAN: | 4711377015738 |
| Processor socket: | LGA 1700 |
| Supported processor sockets: | LGA 1700 |
| Compatible processor series: | Intel® Celeron®, Intel® Pentium® Gold |
| Processor manufacturer: | Intel |
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |
| Motherboard form factor: | ATX |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Product colour: | Black |
| Motherboard chipset: | Intel Z790 |
| Supported memory clock speeds: | 5000, 6000, 7000 MHz, 5800, 5400, 6800, 6400 MHz, 5200, 6600, 4800 |
| Maximum internal memory: | 128 GB |
| Supported memory types: | DDR5-SDRAM |
| Supported memory clock speed (max): | 7000 MHz |
| Number of memory slots: | 4 |
| ECC сompatibility: | Non-ECC |
| Width: | 304.8 mm |
| Depth: | 243.8 mm |
| Top Wi-Fi standard: | Wi-Fi 6 (802.11ax) |
| Bluetooth: | Yes |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | Yes |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b |
| Bluetooth version: | 5.3 |
| Number of SATA III connectors: | 6 |
| USB 2.0 connectors: | 4 |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 4 |
| Front panel connector: | Yes |
| TPM connector: | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| Bundled software: | Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, PCI Express |
| Number of storage drives supported: | 10 |
| RAID levels: | 0, 5, 10, 1 |
| RAID support: | Yes |

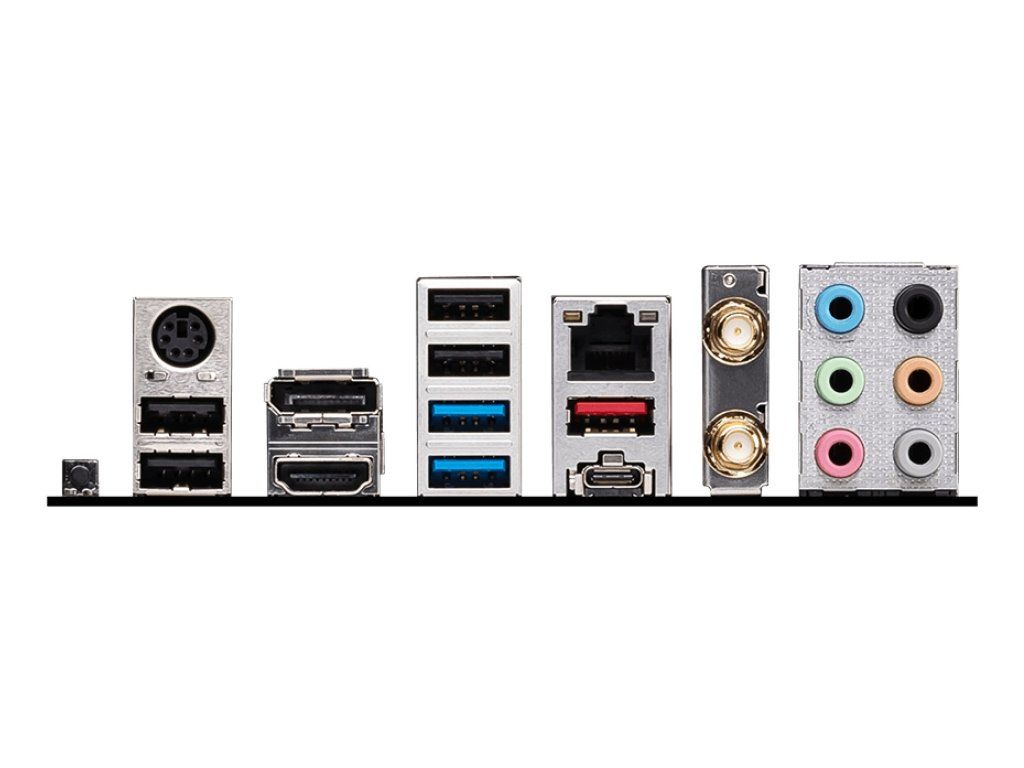

| DisplayPorts quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI version: | 2.1 |
| HDMI ports quantity: | 1 |
| DisplayPort version: | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| S/PDIF out port: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| Number of M.2 (M) slots: | 4 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
