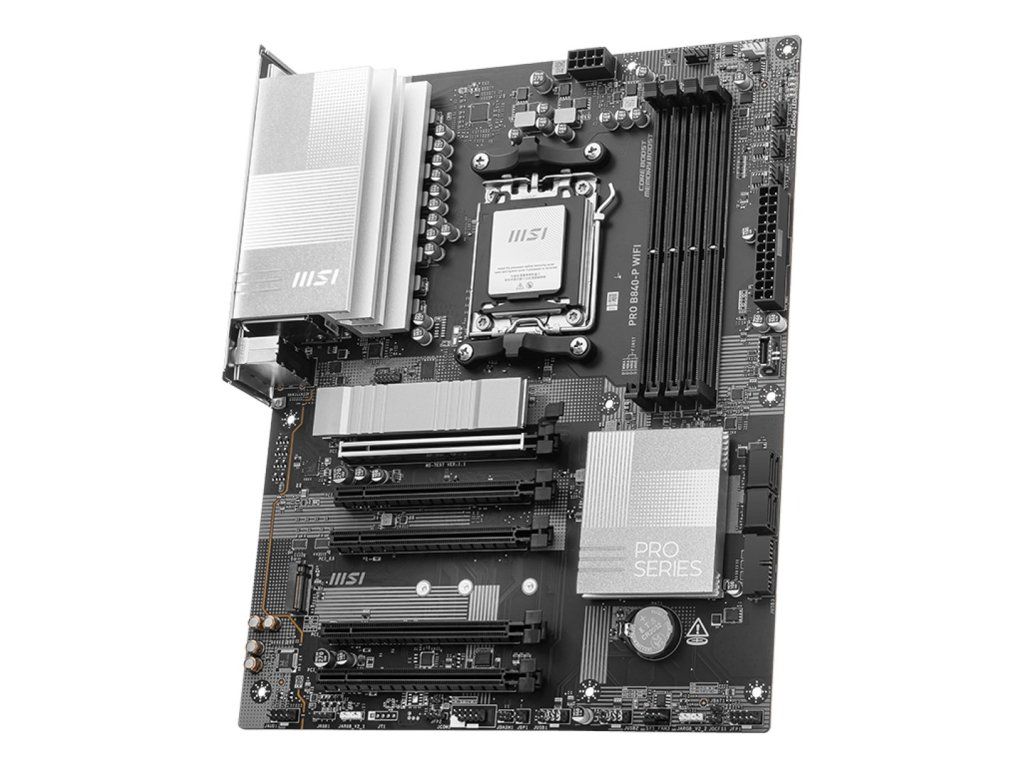

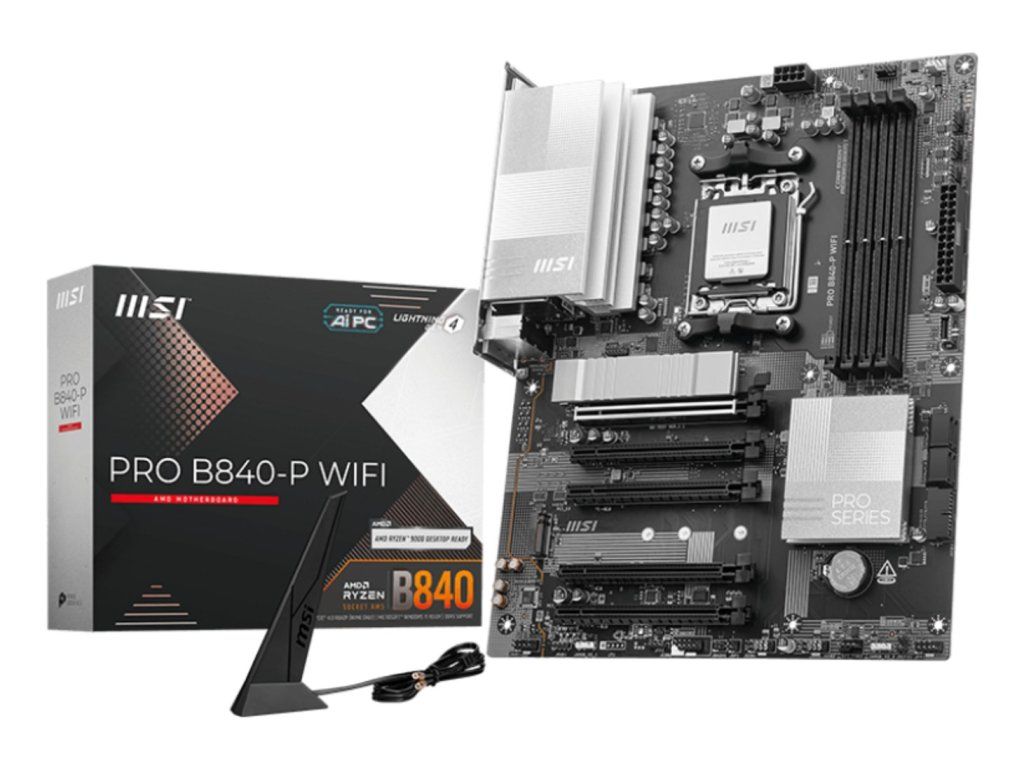

MSI PRO B840-P WIFI motherboard AMD B840 Socket AM5 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.57 kg |
| EAN: | 4711377286596 |
| Supported processor sockets: | Socket AM5 |
| Maximum internal memory supported by processor: | 256 GB |
| Compatible processor series: | AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| On-board graphics card: | No |
| Motherboard form factor: | ATX |
| Motherboard chipset: | AMD B840 |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | AMD |
| Product colour: | Black |
| Windows operating systems supported: | Windows 11 x64 |
| Audio output channels: | 7.1 channels |
| Supported memory clock speeds: | 8000 MHz, 4800, 5600 |
| Maximum internal memory: | 256 GB |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speed (max): | 8000 MHz |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Depth: | 304.8 mm |
| Width: | 243.8 mm |
| Bluetooth: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.4 |
| Wi-Fi standards: | 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be) |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| USB 2.0 connectors: | 4 |
| Number of SATA III connectors: | 4 |
| Number of chassis fan connectors: | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of RGB LED pin headers: | 3 |
| Number of CPU fan connectors: | 1 |
| Number of water pump connectors: | 1 |
| Total number of SATA connectors: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| RAID levels: | 1, 0, 10 |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, Micro SATA III |
| Number of storage drives supported: | 6 |
| Number of HDDs supported: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 4 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 4 |
| Number of M.2 (M) slots: | 2 |
| 1st M.2 largest key size: | 2280 |
| 2nd M.2 largest key size: | 22110 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Warnings: | Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage. |
