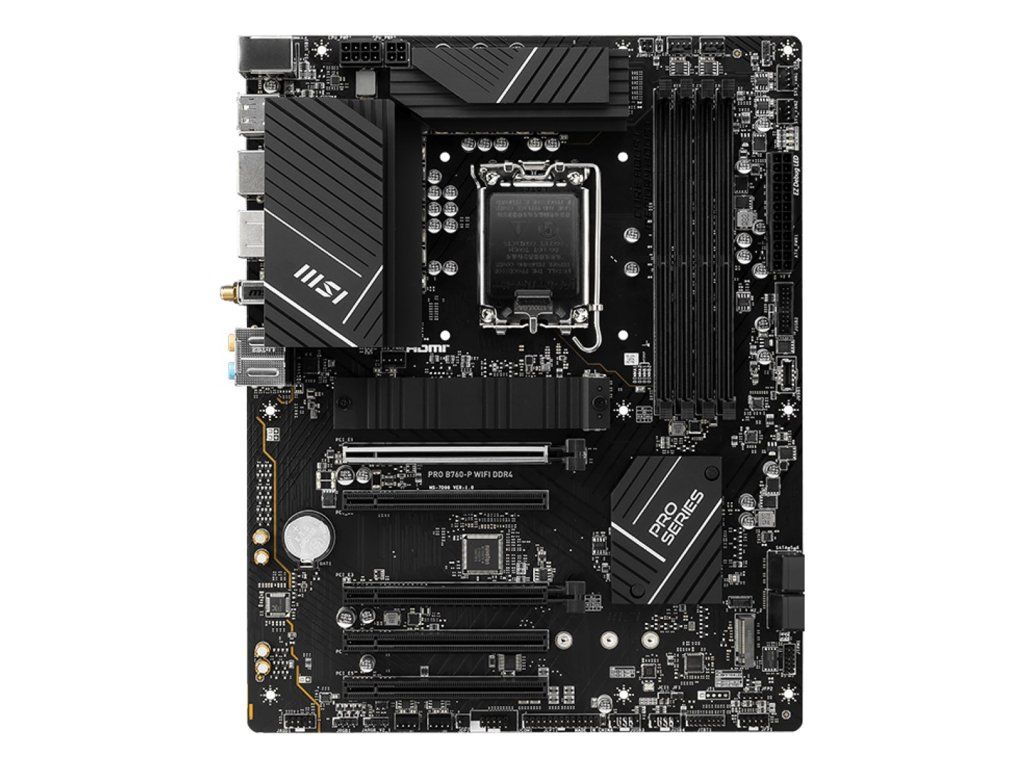

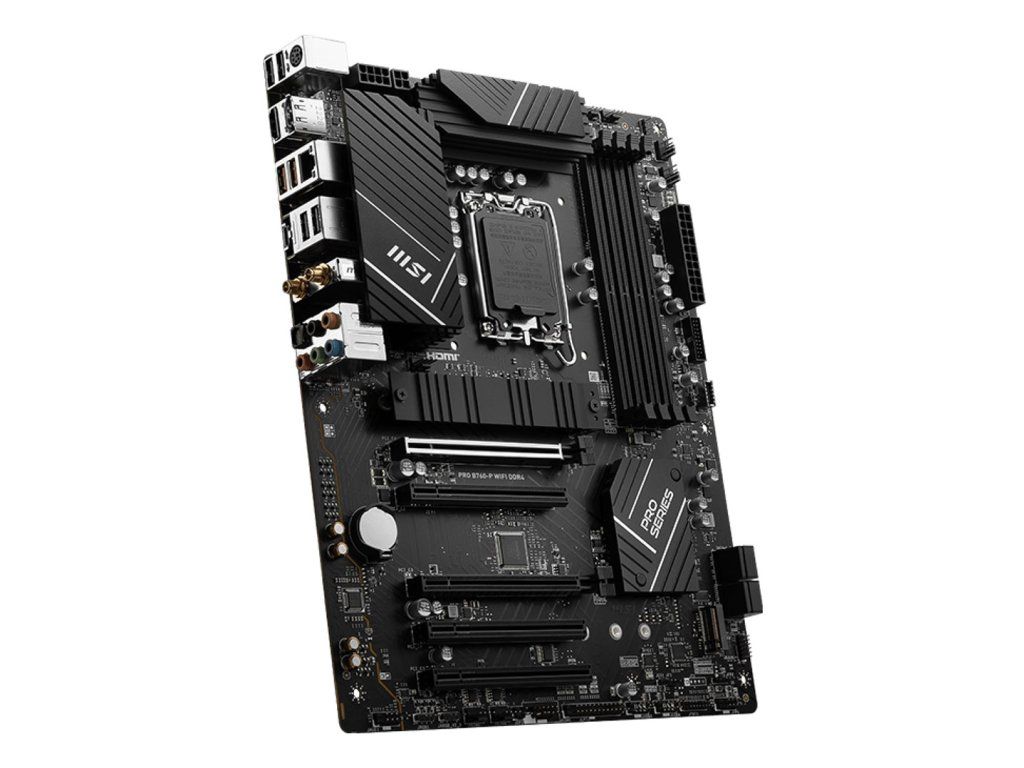

MSI PRO B760-P WIFI DDR4 motherboard LGA 1700 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.515 kg |
| EAN: | 4711377028363 |
| Processor socket: | LGA 1700 |
| Supported processor sockets: | LGA 1700 |
| Compatible processor series: | Intel® Celeron®, Intel® Pentium® Gold |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | Intel |
| On-board graphics card: | No |
| Motherboard form factor: | ATX |
| Power source type: | ATX |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 10, Windows 11 |
| Product colour: | Black |
| Motherboard chipset family: | Intel |
| Audio chip: | Realtek ALC897 |
| Supported memory clock speeds: | 2400, 5066, 5200, 4600, 3466, 3400, 2133 MHz, 4200, 3200, 2666, 4266 MHz, 5333 MHz, 4000, 4800 MHz, 3733, 4400 MHz, 5000, 2933, 3600, 3800, 3333 |
| Maximum internal memory: | 128 GB |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Supported memory types: | DDR4-SDRAM |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speed (max): | 5333 MHz |
| Width: | 243.8 mm |
| Depth: | 304.8 mm |
| Bluetooth: | Yes |
| Wi-Fi: | Yes |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 4 |
| Front panel connector: | Yes |
| Front panel audio connector: | Yes |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID levels: | 5, 10, 0, 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPorts quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 2.0 ports quantity: | 2 |
| PCI Express x16 slots: | 5 |
| Number of M.2 (M) slots: | 2 |
| Warnings: | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
