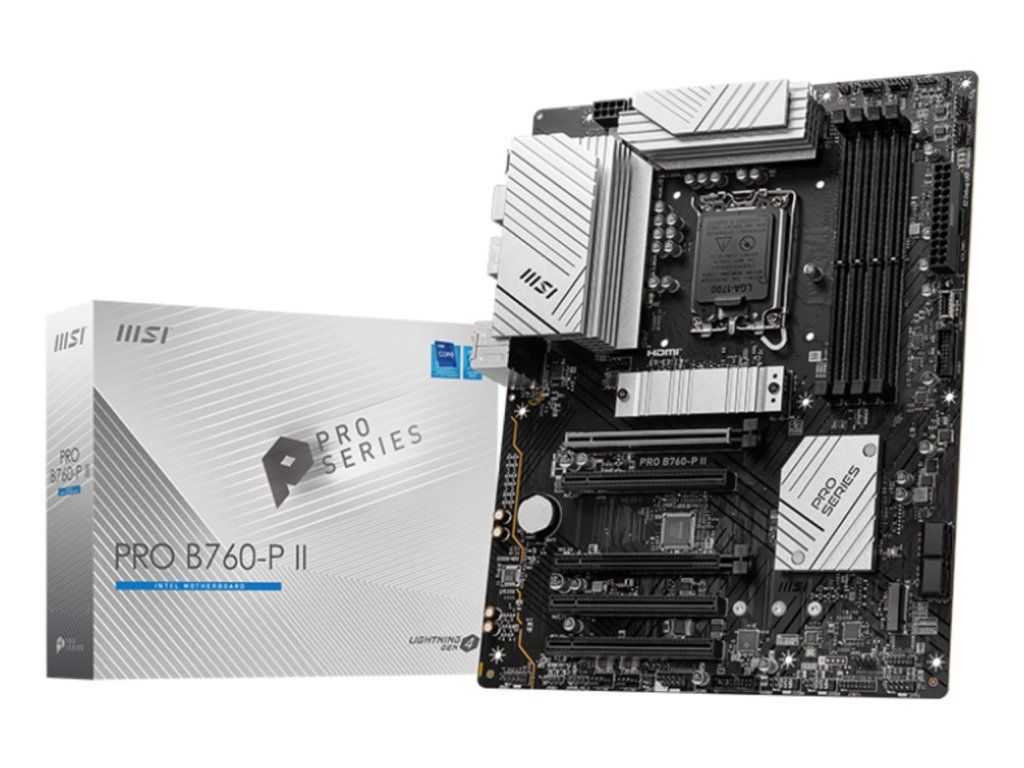

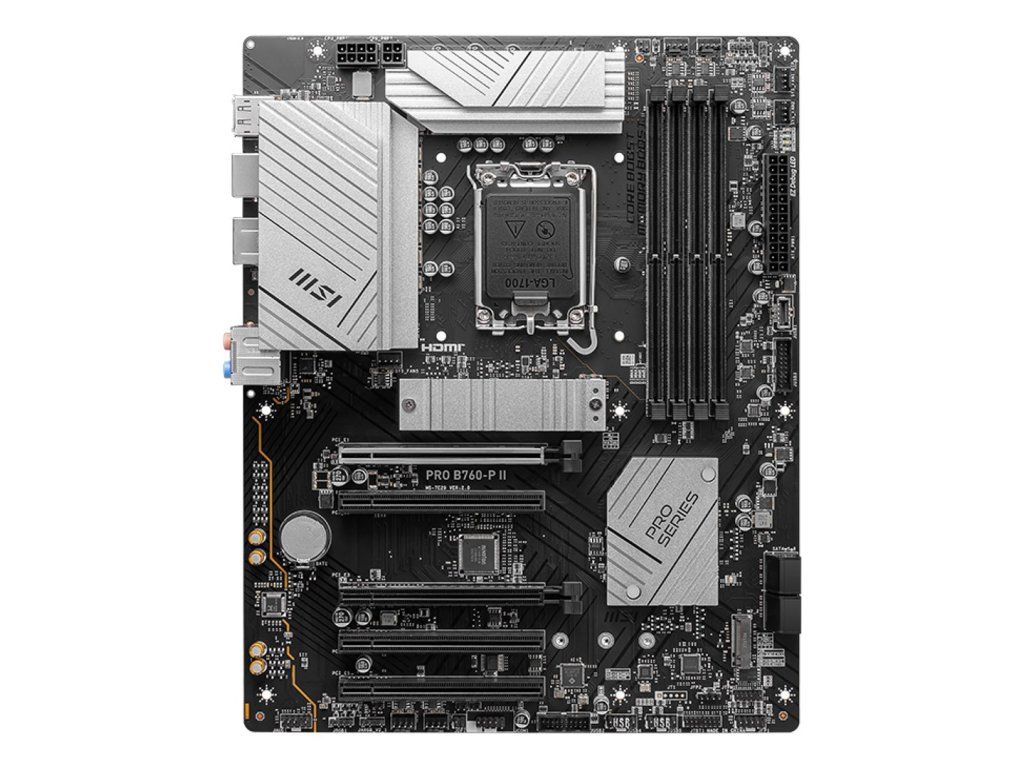

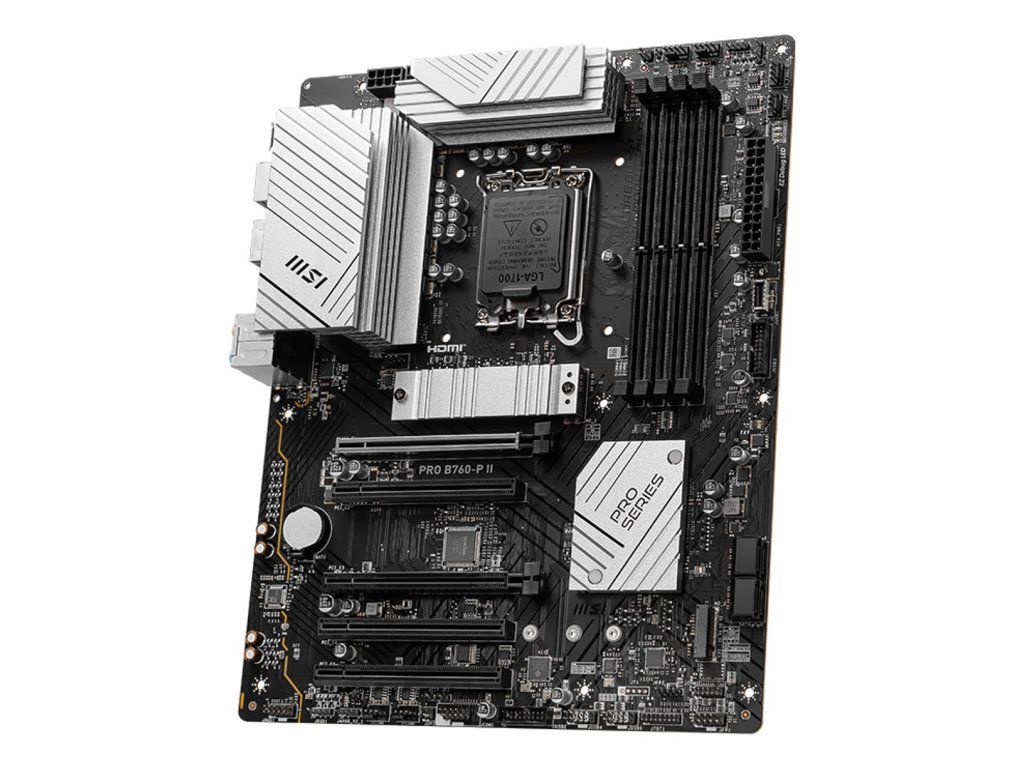

MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.42 kg |
| EAN: | 4711377193887 |
| Maximum internal memory supported by processor: | 256 GB |
| Compatible processor series: | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Pentium® Gold, Intel® Core™ i3 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Motherboard chipset: | Intel B760 |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Motherboard form factor: | ATX |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speed (max): | 7000 MHz |
| Supported memory clock speeds: | 5600, 6800, 6200, 6600, 5200, 7000 MHz, 5800, 5400, 6000, 6400 MHz, 4800, 5000 |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Depth: | 304.8 mm |
| Width: | 243.8 mm |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard: | Not available |
| LAN controller: | Realtek RTL8125-BG |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| 12V power connector: | Yes |
| Power fan connector: | Yes |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 4 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| S/PDIF out connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| CPU fan connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Chassis intrusion connector: | Yes |
| USB 2.0 connectors: | 4 |
| BIOS type: | UEFI AMI |
| Clear CMOS jumper: | Yes |
| Clear CMOS button: | Yes |
| Cables included: | SATA |
| Drivers included: | Yes |
| RAID levels: | 5, 0, 1, 10 |
| Number of storage drives supported: | 6 |
| Supported storage drive interfaces: | PCI Express 4.0, SATA III |
| RAID support: | Yes |
| Number of HDDs supported: | 4 |
| HDMI version: | 2.1 |
| USB 2.0 ports quantity: | 4 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 4.x) slots: | 2 |
| PCI Express x4 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| Warnings: | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
