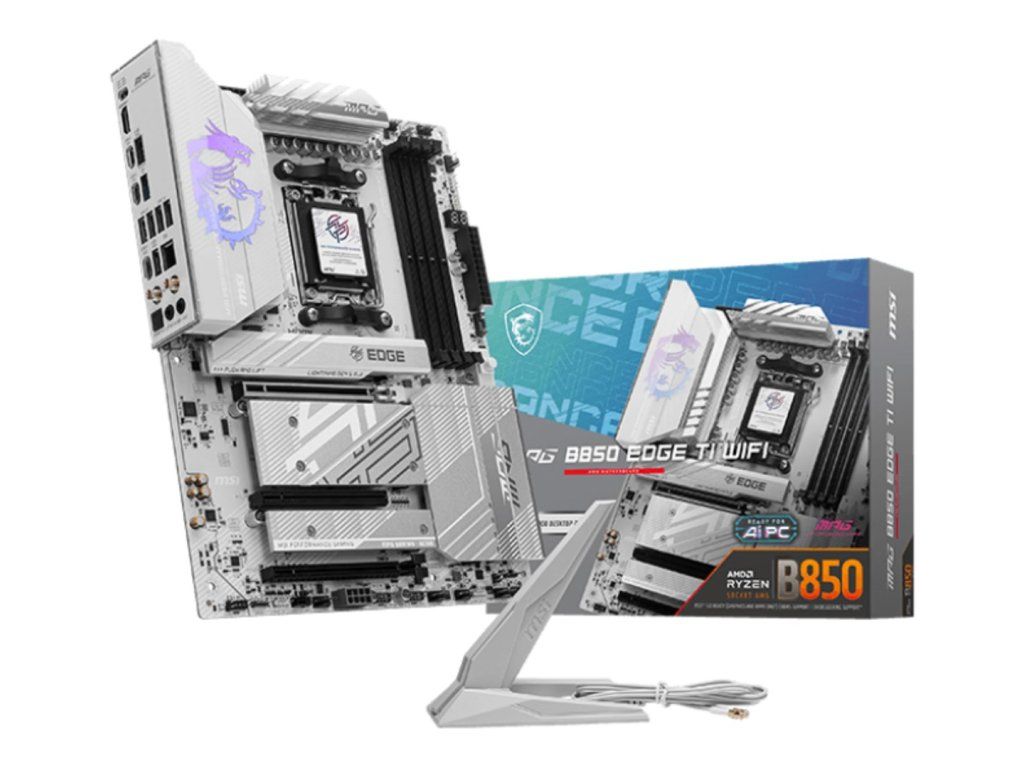

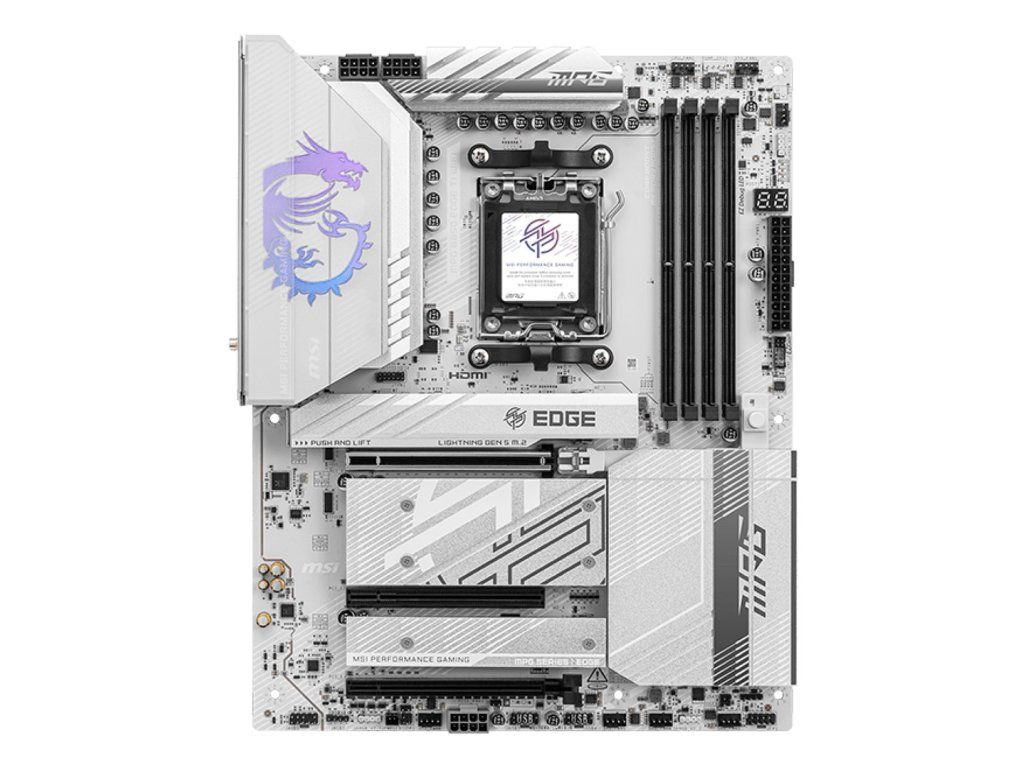

MSI MPG B850 EDGE TI WIFI motherboard AMD B850 Socket AM5 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 2.27 kg |
| EAN: | 4711377290616 |
| Supported processor sockets: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Maximum internal memory supported by processor: | 256 GB |
| On-board graphics card: | No |
| Windows operating systems supported: | Windows 11 x64 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD B850 |
| Product colour: | White |
| Motherboard chipset family: | AMD |
| Audio chip: | Realtek ALC4080 |
| Motherboard form factor: | ATX |
| Supported memory clock speeds: | 4800 MHz, 5600, 8400 MHz |
| Maximum internal memory: | 256 GB |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Supported memory clock speed (max): | 8400 MHz |
| Number of memory slots: | 4 |
| ECC сompatibility: | Non-ECC |
| Depth: | 243.8 mm |
| Width: | 304.8 mm |
| Bluetooth: | Yes |
| Wi-Fi: | Yes |
| Wi-Fi standards: | Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, Wi-Fi 4 (802.11n) |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.4 |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 4 |
| CPU fan connector: | Yes |
| USB 2.0 connectors: | 4 |
| Number of SATA III connectors: | 4 |
| RGB LED pin header: | Yes |
| Total number of SATA connectors: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| Number of water pump connectors: | 1 |
| Number of RGB LED pin headers: | 3 |
| Number of CPU fan connectors: | 6 |
| RAID levels: | 10, 0, 1 |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, Micro SATA III |
| RAID support: | Yes |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 8 |
| USB 2.0 ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 3 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 4 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 largest key size: | 2280 |
| 2nd M.2 largest key size: | 2280 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| 4th M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 5.0 |
| 1st M.2 largest key size: | 22110 |
| 4th M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| Warnings: | Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty. |
