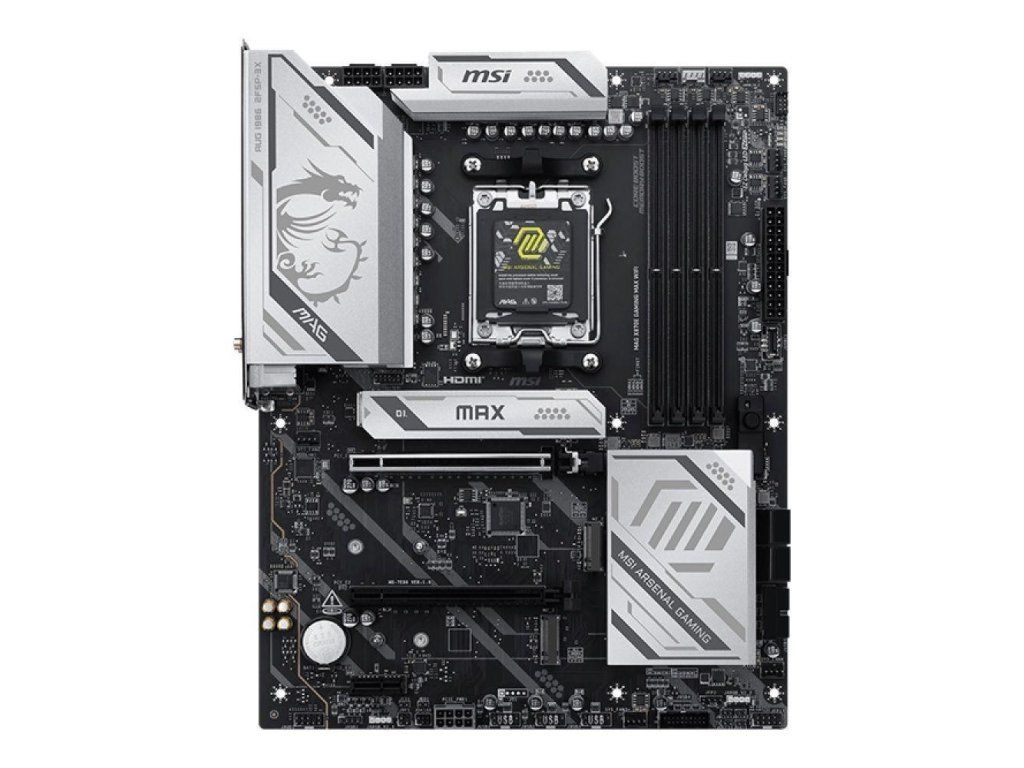

MSI MAG X870E GAMING MAX Motherboard WIFI /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/AM5/ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 2.1 kg |
| EAN: | 4711377407199 |
| Supported processor sockets: | Socket AM5 |
| Maximum internal memory supported by processor: | 256 GB |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Processor manufacturer: | AMD |
| On-board graphics card: | No |
| PC health monitoring: | Temperature, CPU, Voltage, Fan |
| Motherboard chipset family: | AMD |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD X870 |
| Motherboard form factor: | ATX |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speeds: | 6200, 5000, 6400 MHz, 8000 MHz, 7400, 5800, 5400, 6800, 6000, 7600 MHz, 6600, 7000 MHz, 8200 MHz, 7800, 5200, 4800, 5600, 7200 MHz |
| Maximum internal memory: | 256 GB |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5 DIMM |
| Supported memory clock speed (max): | 8200+ MHz |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Depth: | 304.8 mm |
| Width: | 243.8 mm |
| Bluetooth: | Yes |
| LAN controller: | Realtek RTL8126 |
| Wi-Fi standards: | Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be) |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| Bluetooth version: | 5.4 |
| Ethernet interface type: | 5 Gigabit Ethernet |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| USB 2.0 connectors: | 10 |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| EPS power connector (8-pin): | Yes |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 2 |
| Total number of SATA connectors: | 4 |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of storage drives supported: | 7 |
| Number of HDDs supported: | 4 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| S/PDIF out port: | No |
| USB 2.0 ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| HDMI version: | 2.1 |
| Microphone in: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB4 Gen 2x2 ports quantity: | 1 |
| 3rd M.2 largest key size: | 2280 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 22110 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 1st M.2 largest key size: | 2280 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
