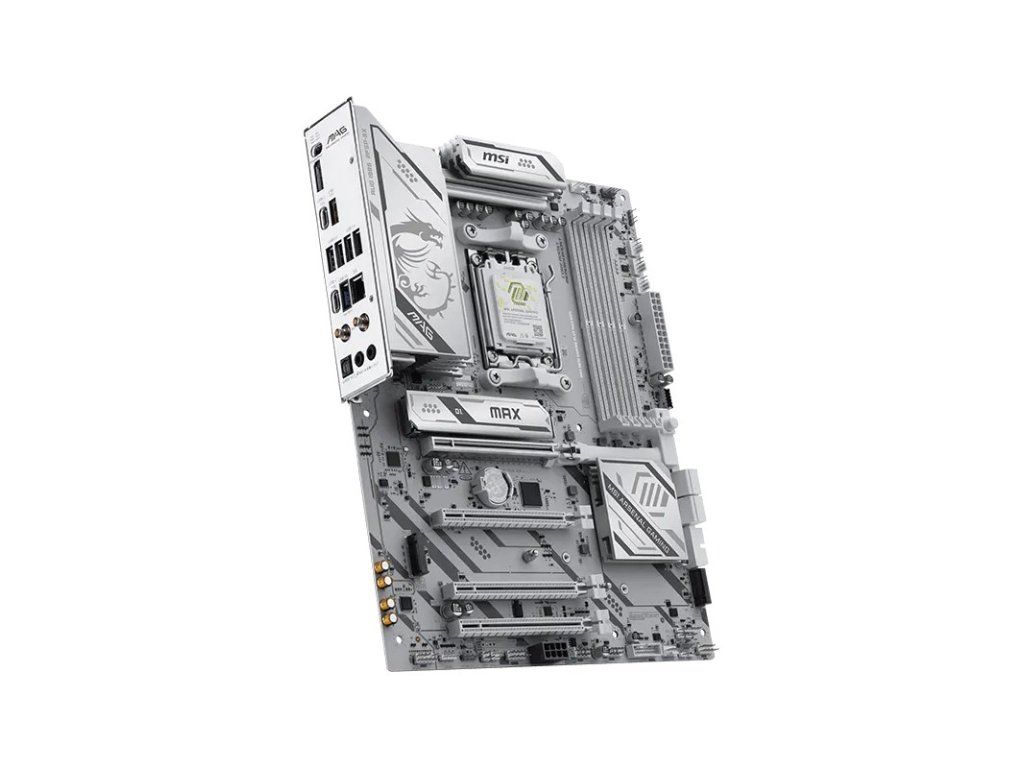

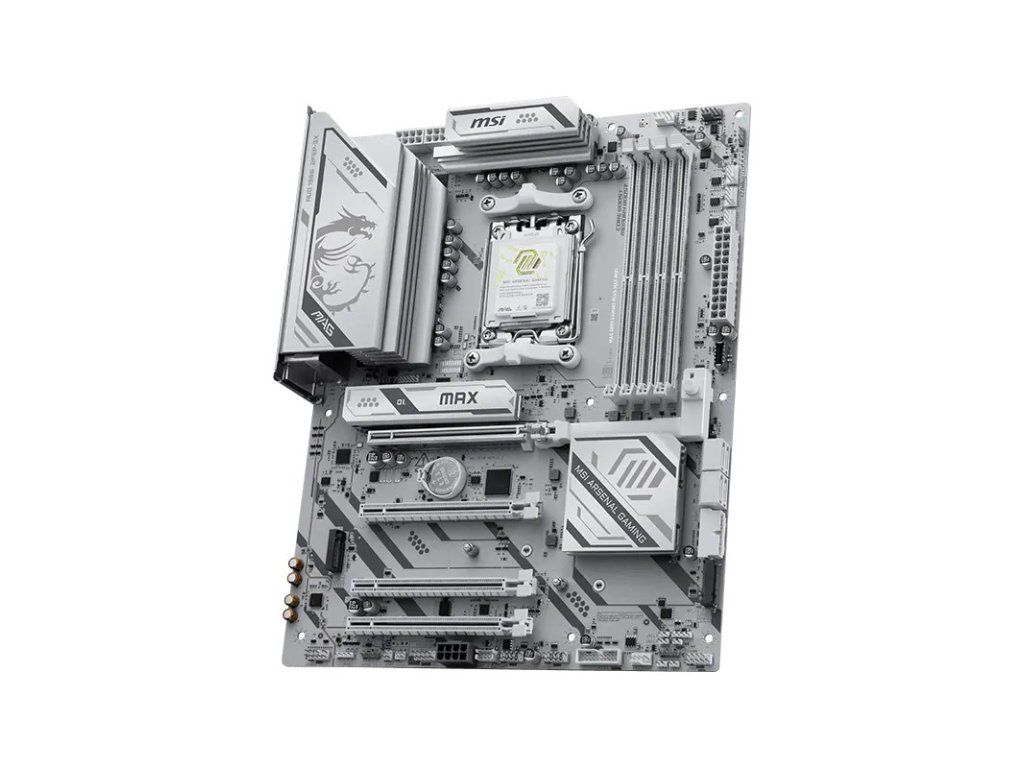

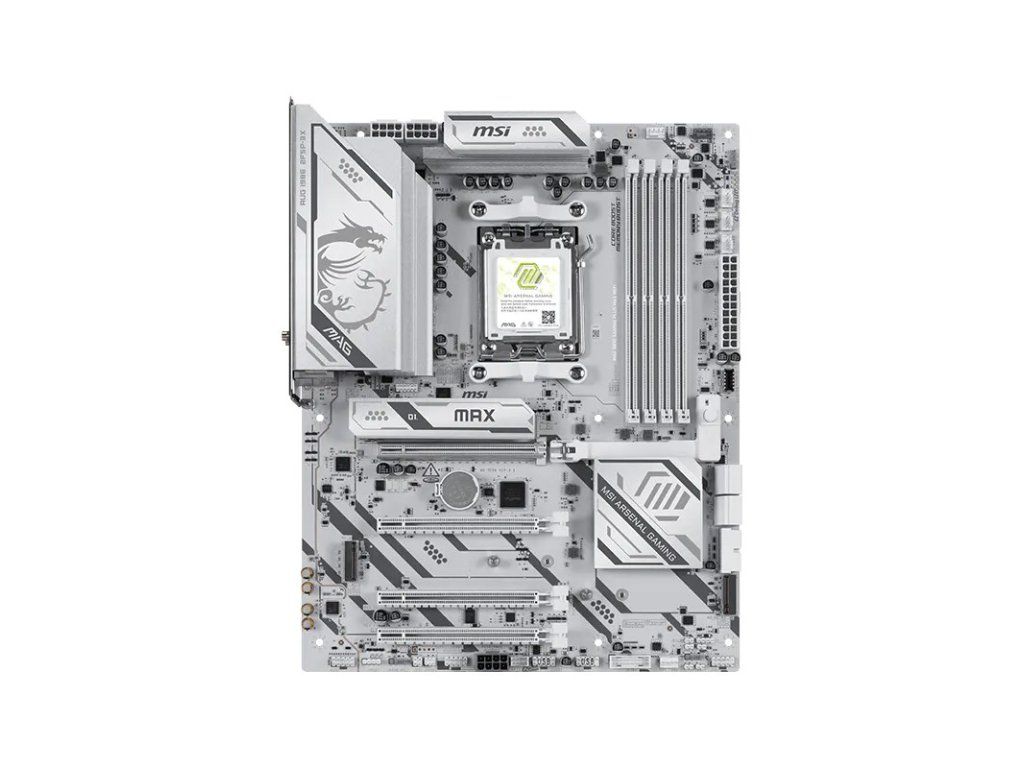

MSI MAG B850 GAMING PLUS MAX WIFI motherboard AMD B850 Socket AM5 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.78 kg |
| EAN: | 4711377410465 |
| Supported processor sockets: | Socket AM5 |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer: | AMD |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset: | AMD B850 |
| Product colour: | White |
| Motherboard form factor: | ATX |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 11 x64 |
| Motherboard chipset family: | AMD |
| Supported memory clock speeds: | 6400 MHz, 5600, 8200 MHz, 4800 |
| Maximum internal memory: | 256 GB |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 8200 MHz |
| ECC сompatibility: | Non-ECC |
| Width: | 243.8 mm |
| Depth: | 304.8 mm |
| Bluetooth: | Yes |
| Wi-Fi standards: | Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11b, 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be) |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Ethernet interface type: | 5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Bluetooth version: | 5.4 |
| Number of SATA III connectors: | 4 |
| RGB LED pin header: | Yes |
| USB 2.0 connectors: | 4 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| Total number of SATA connectors: | 4 |
| Number of CPU fan connectors: | 6 |
| Number of water pump connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 4 |
| Number of RGB LED pin headers: | 3 |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 1, 0 |
| RAID support: | Yes |
| Number of storage drives supported: | 7 |
| Number of HDDs supported: | 4 |
| Supported storage drive interfaces: | M.2, Micro SATA III |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPort version: | 1.2 |
| DisplayPorts quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 2 |
| USB 2.0 ports quantity: | 4 |
| Number of M.2 (M) slots: | 3 |
| 1st M.2 largest key size: | 2280 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 22110 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 largest key size: | 2280 |
