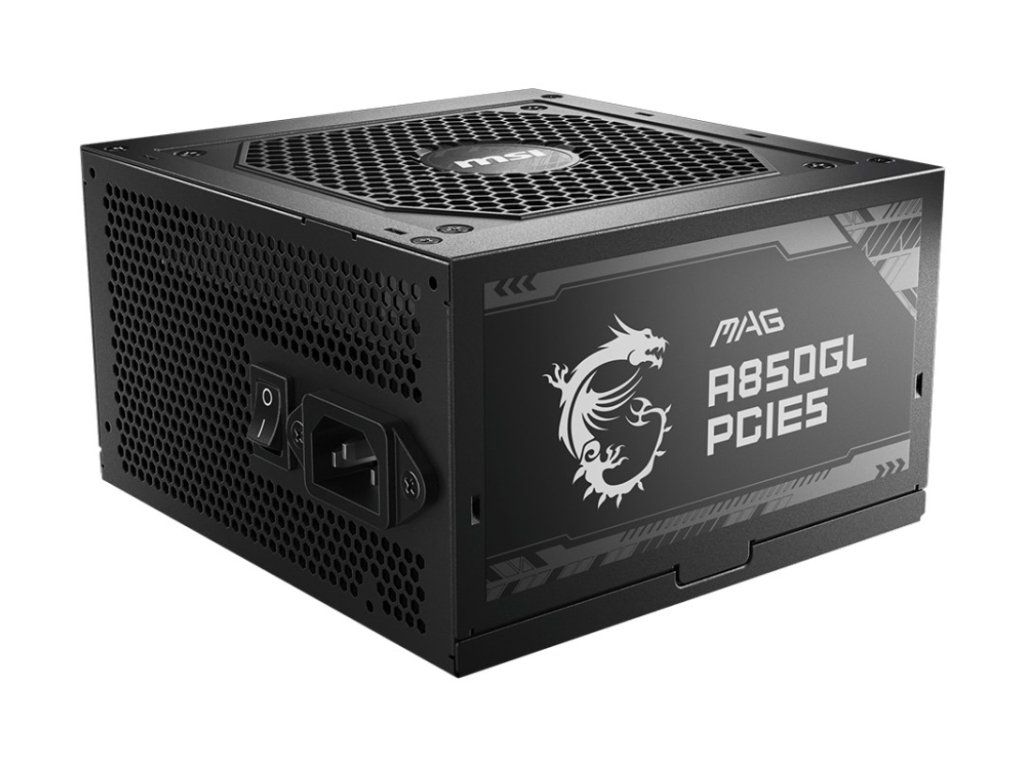

MSI MAG A850GL PCIE5 power supply unit 850 W 20+4 pin ATX ATX Black
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 2.778 kg |
| EAN: | 4711377084253 |
| Fan diameter: | 12 cm |
| Illumination: | No |
| Product colour: | Black |
| Number of fans: | 1 fan(s) |
| Cooling type: | Active |
| On/off switch: | Yes |
| Maximum input current (@110V): | 8 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5V): | 20 A |
| Maximum input current (@220V): | 4 A |
| Combined power (+5Vsb): | 12.5 W |
| Combined power (+3.3V): | 110 W |
| Power Factor Correction (PFC) type: | Active |
| Max output current (+5Vsb): | 2.5 A |
| Max output current (+3.3V): | 20 A |
| Efficiency: | 90% |
| Combined power (-12V): | 3.6 W |
| Total power: | 850 W |
| Combined power (+5V): | 110 W |
| AC input voltage: | 100 - 240 V |
| Power protection features: | Over power, Overheating, Over current, Short circuit, Over voltage |
| AC input frequency: | 47 - 63 Hz |
| Height: | 86 mm |
| Depth: | 140 mm |
| Width: | 150 mm |
| Power supply unit (PSU) form factor: | ATX |
| ATX version: | 3.1 |
| Purpose: | PC |
| 80 PLUS certification: | 80 PLUS Gold |
| Package type: | Box |
| Motherboard power cable length: | 60 cm |

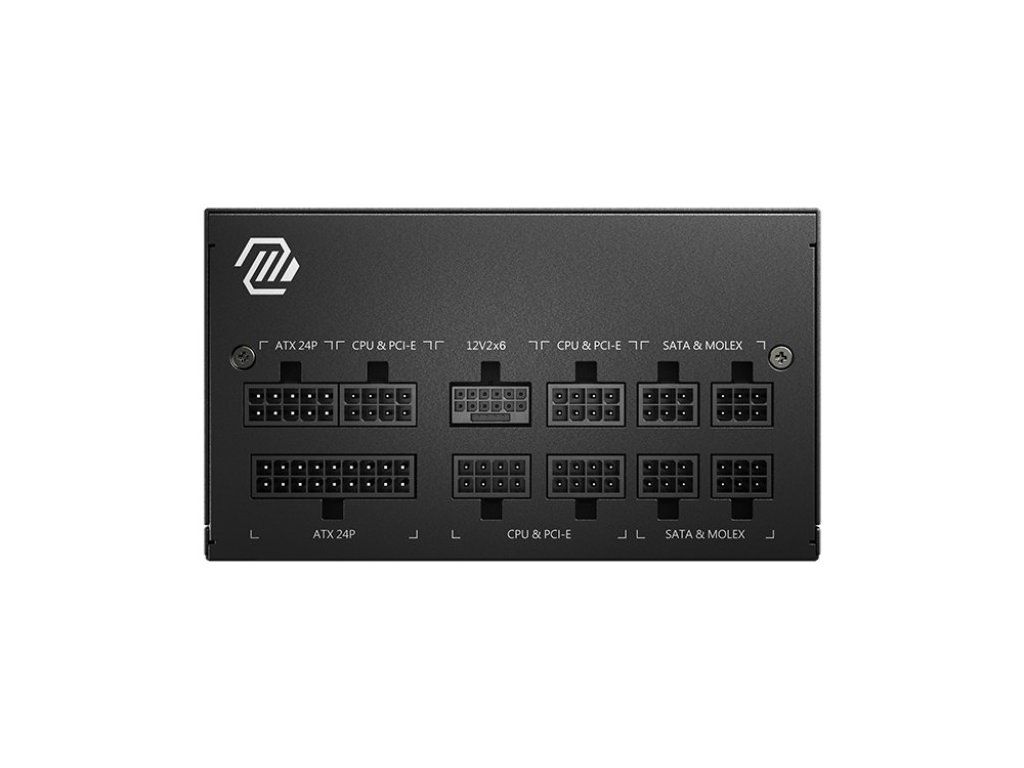

| PCI Express connector: | Yes |
| ATX power connector (20+4 pin): | No |
| CPU power connector (4+4 pin): | Yes |
| PCI Express power connectors (6+2 pin): | 4 |
| Motherboard power connector: | 20+4 pin ATX |
| Number of SATA power connectors: | 8 |
| Cabling type: | Fully-Modular |
| EPS power connector (4+4 pin): | Yes |
| EPS power connector (8-pin): | No |
| Peripheral (Molex) power connectors (4-pin): | 4 |
| ATX Power connector (24-pin): | No |
| Harmonized System (HS) code: | 84733020 |
| Warnings: | Do not open the case - risk of electric shock., Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations. |
