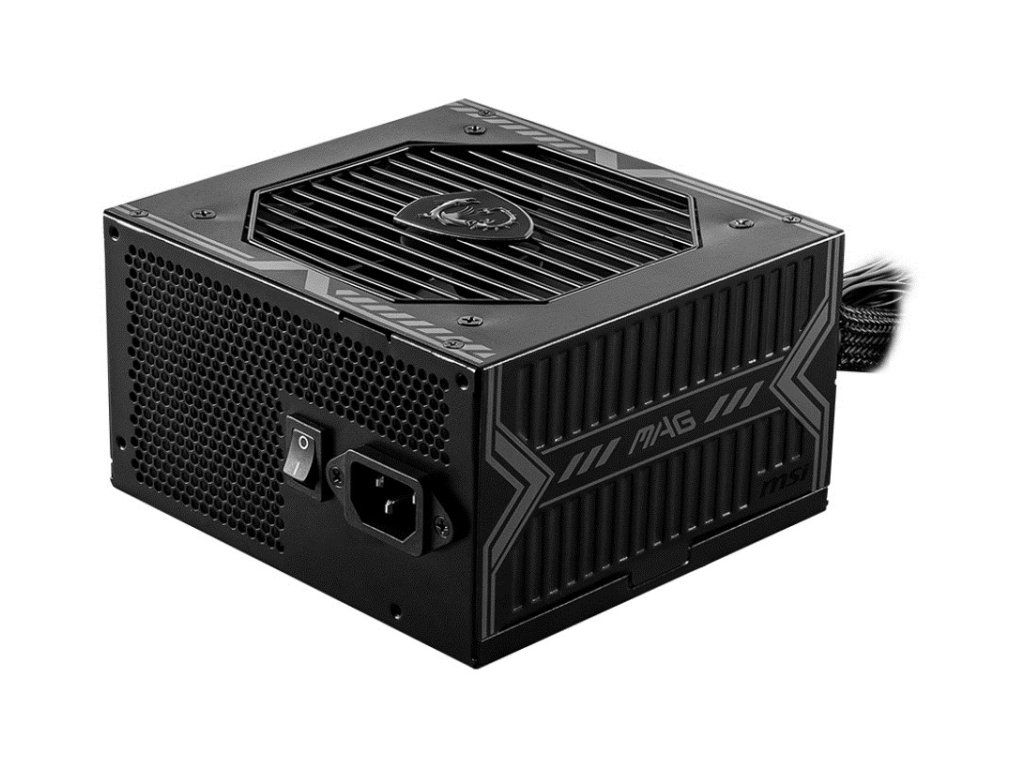

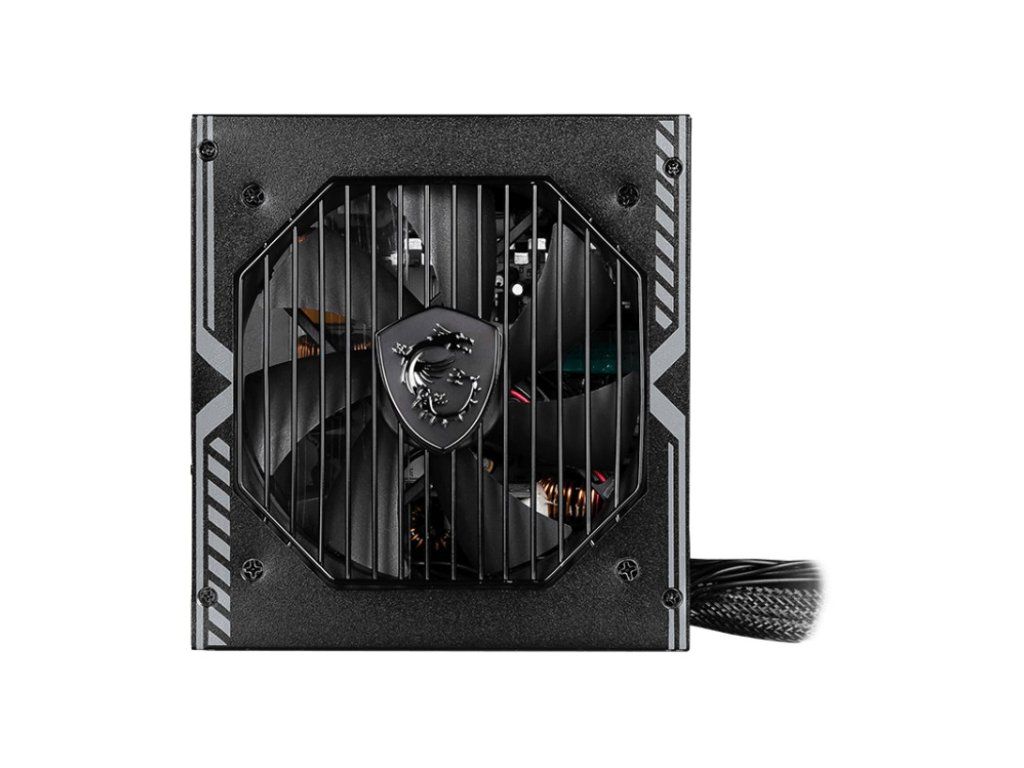

MSI MAG A750BN PCIE5 power supply unit 750 W 24-pin ATX ATX Black
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 2.4 kg |
| EAN: | 4711377126595 |
| Illumination: | No |
| Fan diameter: | 12 cm |
| Cooling type: | Active |
| On/off switch: | Yes |
| Number of fans: | 1 fan(s) |
| Product colour: | Black |
| Max output current (+5Vsb): | 2.5 A |
| Maximum input current (@220V): | 5 A |
| Combined power (+5Vsb): | 12.5 W |
| Combined power (+5V): | 120 W |
| Max output current (+3.3V): | 20 A |
| Combined power (+12V): | 750 W |
| Max output current (+5V): | 20 A |
| Max output current (-12V): | 0.3 A |
| Maximum input current (@110V): | 10 A |
| Total power: | 750 W |
| Power protection features: | Short circuit, Over voltage, Over power, Over current |
| Combined power (+3.3V): | 120 W |
| Efficiency: | 85% |
| AC input voltage: | 100 - 240 V |
| Power Factor Correction (PFC) type: | Active |
| AC input frequency: | 50/60 Hz |
| Height: | 86 mm |
| Depth: | 140 mm |
| Width: | 150 mm |
| 80 PLUS certification: | 80 PLUS Bronze |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| Package height: | 86 mm |
| Package depth: | 140 mm |
| Package width: | 150 mm |
| PCI Express connector: | Yes |
| EPS power connector (4+4 pin): | Yes |
| PCI Express power connectors (16-pin): | 1 |
| Floppy drive power connector: | 1 |
| Motherboard power connector: | 24-pin ATX |
| Number of SATA power connectors: | 5 |
| PCI Express power connectors (6+2 pin): | 2 |
| Cabling type: | Non-Modular |
| Peripheral (Molex) power connectors (4-pin): | 2 |
| ATX Power connector (24-pin): | Yes |
| Warnings: | Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations. |
