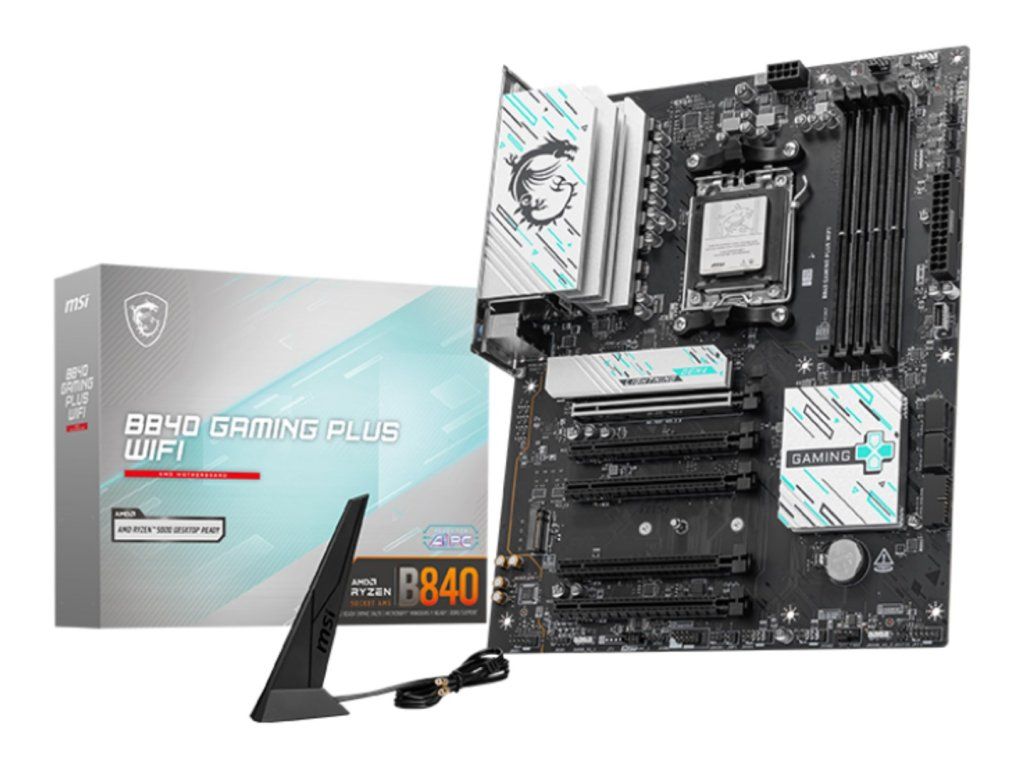

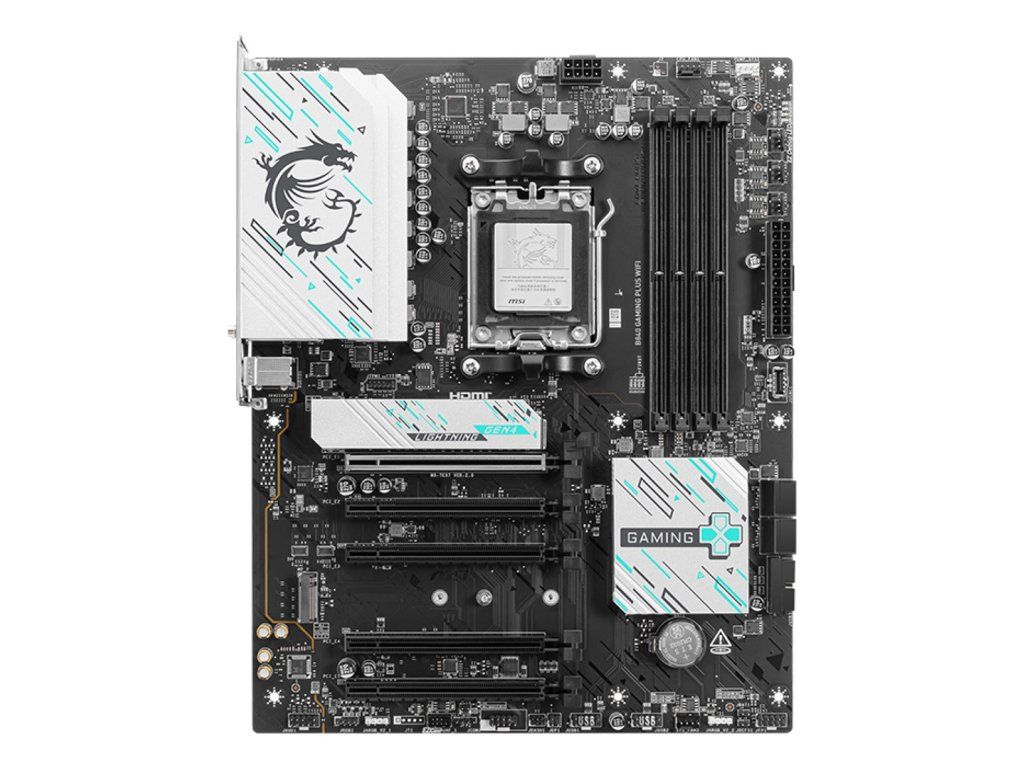

MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.62 kg |
| EAN: | 4711377286589 |
| Supported processor sockets: | Socket AM5 |
| Maximum internal memory supported by processor: | 256 GB |
| Processor socket: | Socket AM5 |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series |
| On-board graphics card: | No |
| Motherboard form factor: | ATX |
| Windows operating systems supported: | Windows 11 x64 |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC897 |
| Product colour: | Black |
| Motherboard chipset: | AMD B840 |
| Motherboard chipset family: | AMD |
| PC health monitoring: | Voltage, CPU, Fan, Temperature |
| Supported memory clock speeds: | 4800, 8000 MHz, 5600 |
| Maximum internal memory: | 256 GB |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speed (max): | 8000 MHz |
| Depth: | 304.8 mm |
| Width: | 243.8 mm |
| Bluetooth: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Wi-Fi: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.4 |
| Ethernet LAN: | Yes |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 4 |
| Number of chassis fan connectors: | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Total number of SATA connectors: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| RGB LED pin header: | Yes |
| Number of CPU fan connectors: | 1 |
| Number of RGB LED pin headers: | 3 |
| Number of water pump connectors: | 1 |
| BIOS type: | UEFI AMI |
| Supported storage drive interfaces: | M.2, Micro SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 0, 1, 10 |
| RAID support: | Yes |
| Number of storage drives supported: | 6 |
| Number of HDDs supported: | 4 |

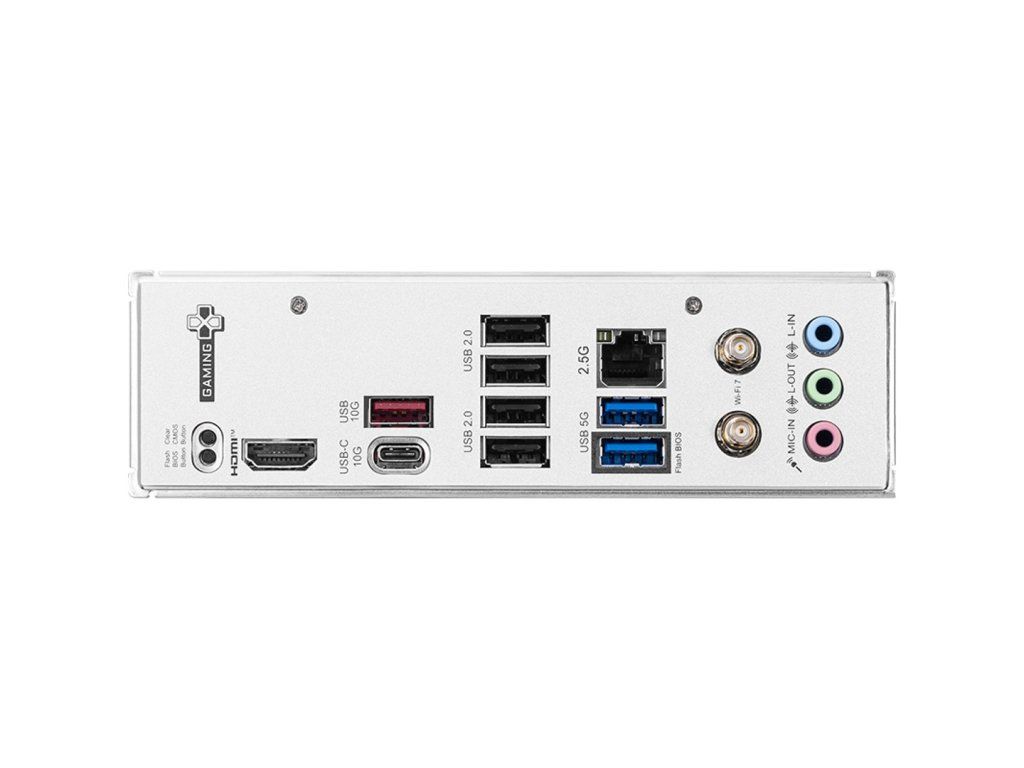

| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 2.0 ports quantity: | 4 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI version: | 2.1 |
| PCI Express x16 (Gen 3.x) slots: | 4 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| 2nd M.2 largest key size: | 22110 |
| 1st M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty. |
