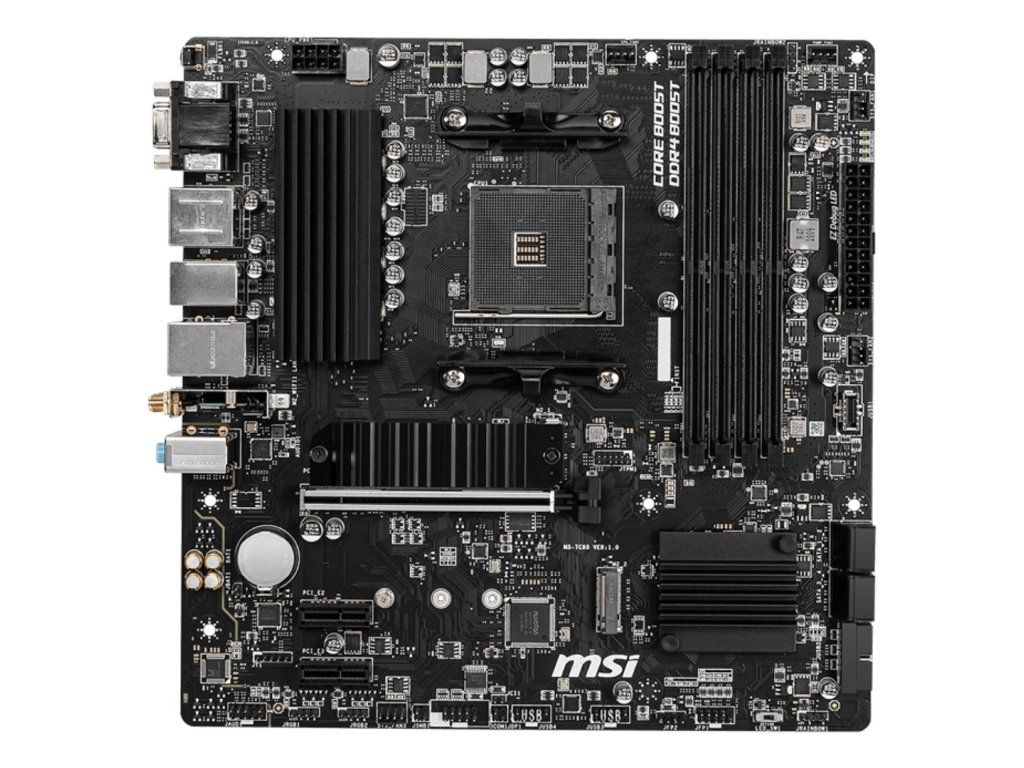

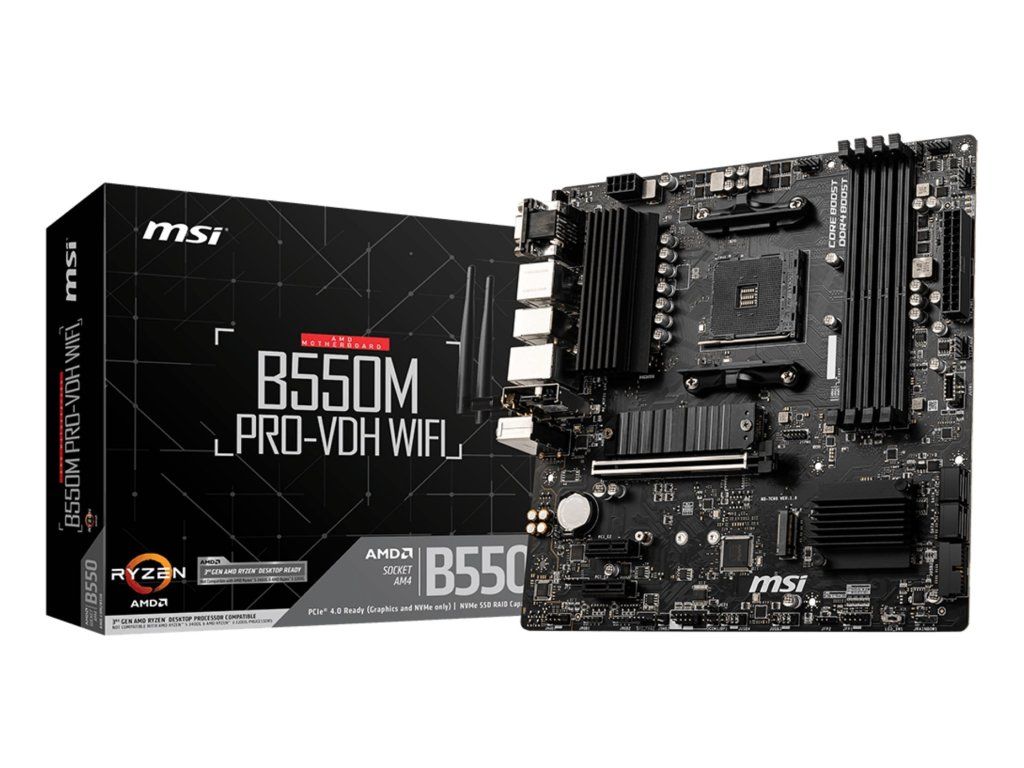

MSI B550M PRO-VDH WIFI motherboard AMD B550 Socket AM4 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM4 |
|---|---|
| Greutate: | 1.12 kg |
| EAN: | 4719072733698 |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen 3000 Series |
| Processor socket: | Socket AM4 |
| Supported processor sockets: | Socket AM4 |
| Parallel processing technology support: | Not supported |
| Maximum resolution: | 4096 x 2160 pixels |
| Maximum graphics card memory: | 16000 MB |
| Motherboard chipset: | AMD B550 |
| Audio chip: | Realtek ALC892 |
| Product colour: | Black |
| Audio output channels: | 7.1 channels |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of mounting holes: | 8 |
| Supported memory clock speeds: | 2400, 2800, 2133, 3200 MHz, 4266, 3466, 2667, 3733, 4400 MHz, 3066, 3000, 1866, 2933, 3600, 3866, 4133, 4000 |
| Maximum internal memory: | 128 GB |
| Unbuffered memory: | Yes |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| ECC сompatibility: | ECC & Non-ECC |
| Memory slots type: | DIMM |
| Supported memory types: | DDR4-SDRAM |
| Width: | 244 mm |
| Height: | 65 mm |
| Depth: | 244 mm |
| LAN controller: | Realtek 8111HN |
| Bluetooth: | Yes |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 5 (802.11ac) |
| Ethernet interface type: | Gigabit Ethernet |
| Bluetooth version: | 4.2 |
| Ethernet LAN: | Yes |
| Wi-Fi standards: | 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b, 802.11a |
| RGB LED pin header: | Yes |
| USB 2.0 connectors: | 2 |
| Serial port headers: | 1 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| 12V power connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Number of chassis fan connectors: | 3 |
| Number of SATA III connectors: | 4 |
| Clear CMOS jumper: | Yes |
| Cables included: | SATA |
| Drivers included: | Yes |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Supported storage drive interfaces: | SATA III |
| Number of storage drives supported: | 6 |
| RAID levels: | 10, 1, 0 |

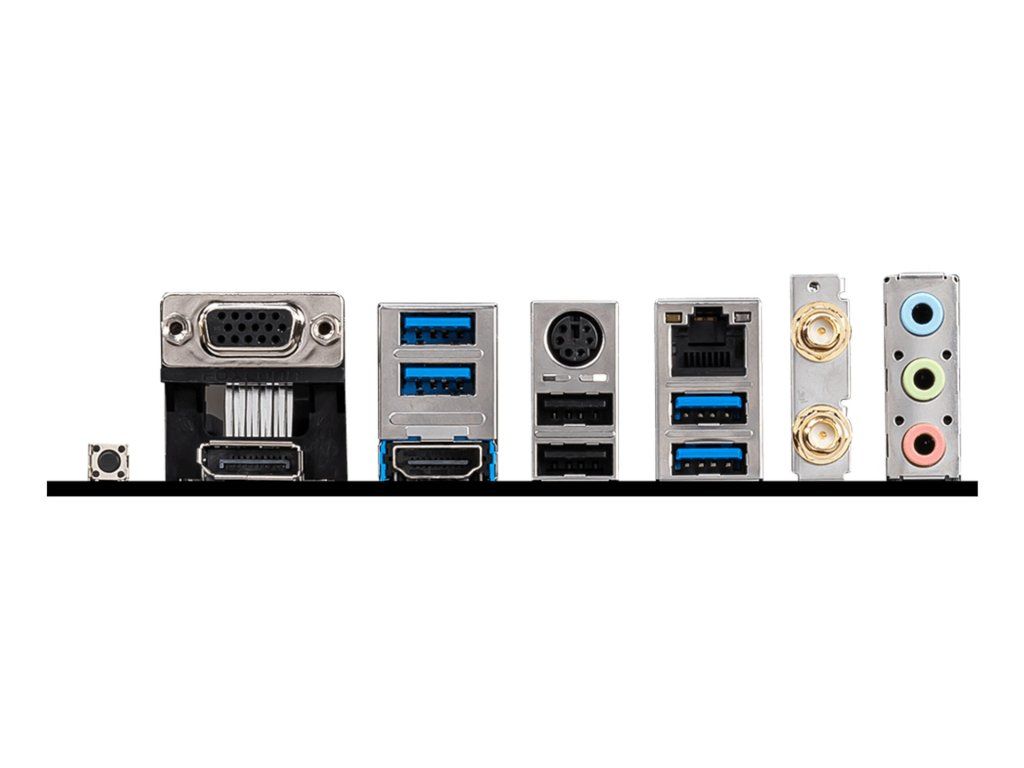

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| PS/2 ports quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| WiFi-AP antenna jack: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Weight: | 1 kg |
| Harmonized System (HS) code: | 84733020 |
| Warnings: | Store away from water and sources of moisture., Dispose of according to local electro-waste regulations., Avoid direct contact with sensitive electronic components. |
