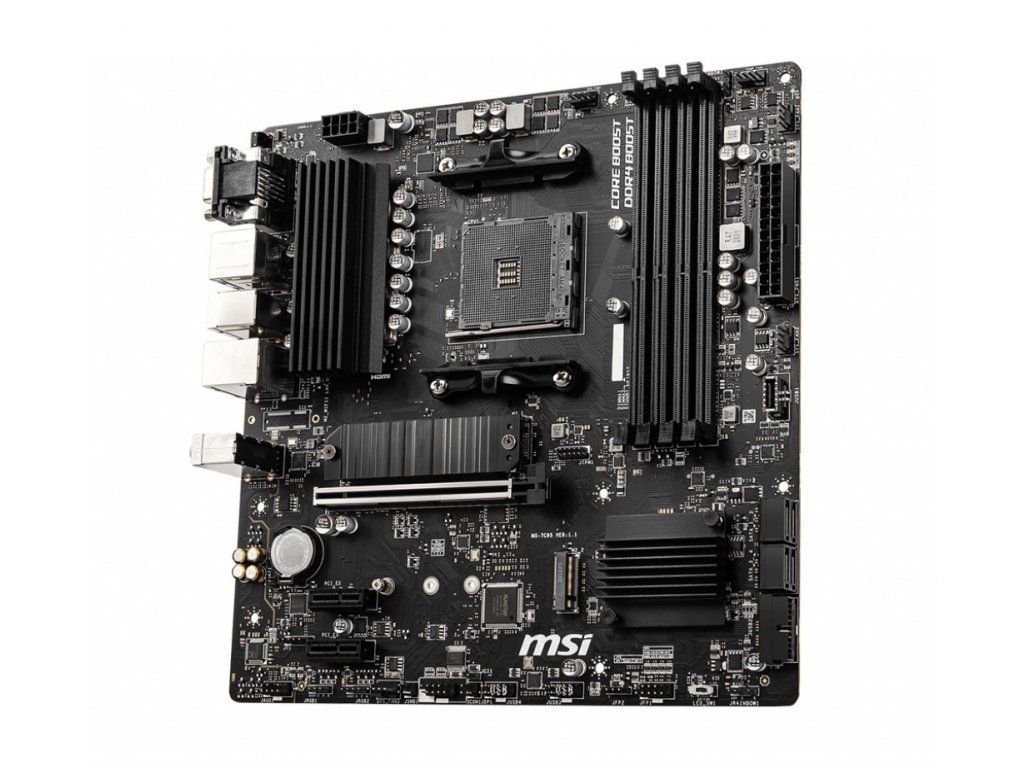

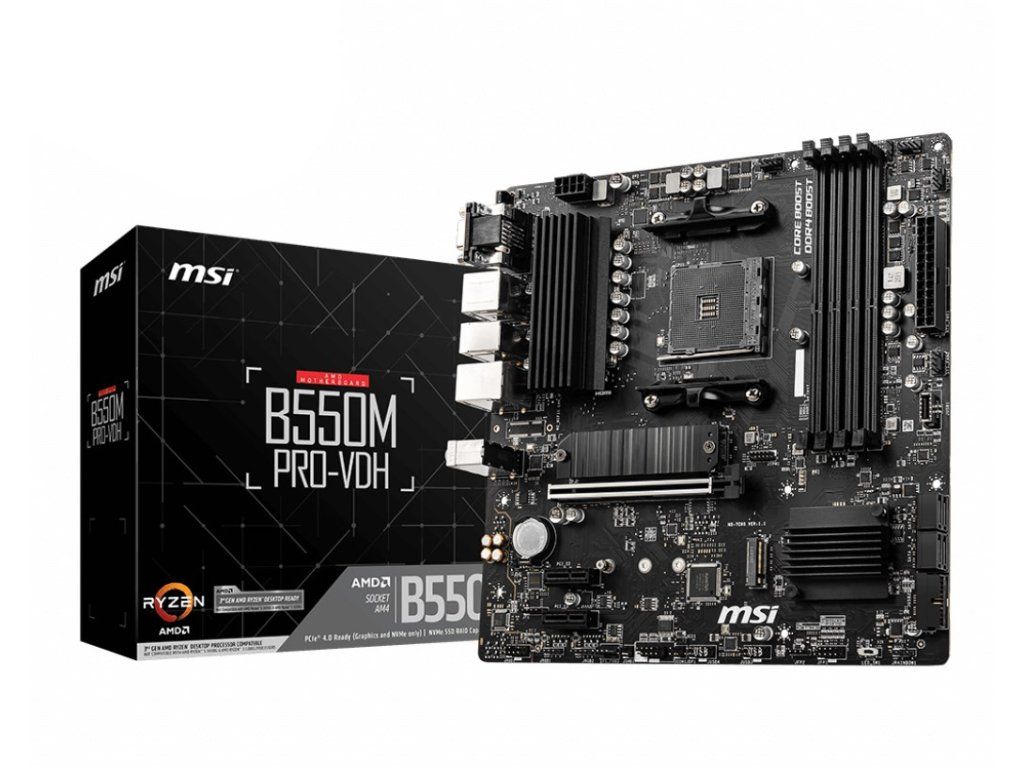

MSI B550M PRO-VDH AMD B550 Socket AM4 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM4 |
|---|---|
| Greutate: | 1.005 kg |
| EAN: | 4719072758417 |
| Processor socket: | Socket AM4 |
| Compatible processor series: | AMD Ryzen™ 7, AMD Ryzen™ 5, 3rd Generation AMD Ryzen™ 9 |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | AMD |
| Parallel processing technology support: | Not supported |
| Maximum resolution: | 4096 x 2160 pixels |
| Motherboard form factor: | micro ATX |
| Motherboard chipset: | AMD B550 |
| Motherboard chipset family: | AMD |
| Audio output channels: | 7.1 channels |
| Supported memory clock speeds: | 2400, 2800, 4133, 4000, 3200, 4266 MHz, 2133 MHz, 2667, 3733, 4400 MHz, 3066, 3000, 2933, 3600, 3866, 1866, 3466 |
| Unbuffered memory: | Yes |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Memory channels: | Dual-channel |
| Maximum internal memory: | 128 GB |
| Supported memory types: | DDR4-SDRAM |
| Width: | 244 mm |
| Depth: | 244 mm |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| LAN controller: | Realtek 8111HN |
| USB 2.0 connectors: | 2 |
| RGB LED pin header: | Yes |
| TPM connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 4 |
| Chassis intrusion connector: | Yes |
| Front panel audio connector: | Yes |
| 12V power connector: | Yes |
| Number of chassis fan connectors: | 3 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Serial port headers: | 1 |
| Clear CMOS jumper: | Yes |
| Drivers included: | Yes |
| Cables included: | SATA |
| RAID levels: | 1, 10, 0 |
| Supported storage drive interfaces: | Serial ATA III |
| Supported storage drive types: | HDD & SSD |
| DisplayPorts quantity: | 1 |
| HDMI version: | 2.1 |
| VGA (D-Sub) ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Number of M.2 (M) slots: | 2 |
