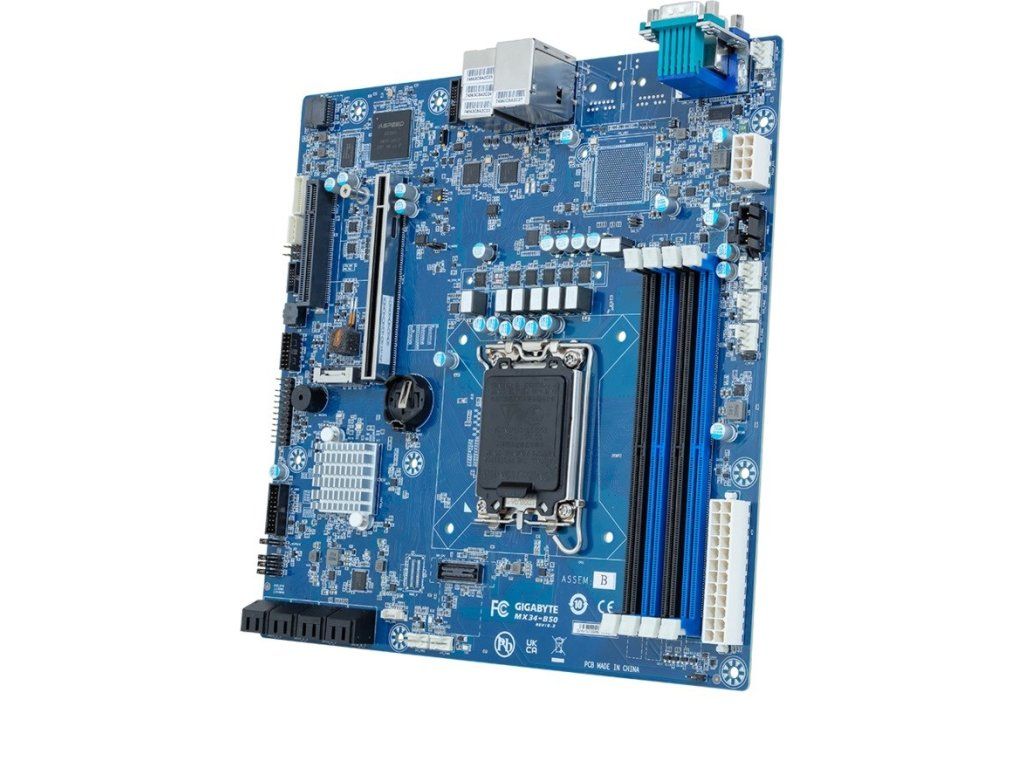

Motherboard - Gigabyte MX34-BS0 1x LGA 1700 Intel® Xeon® E-2400 / 6300 Intel® Pentium® Gold G7400 / G7400T Intel® C262
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | INTEL server motherboards |
|---|---|
| Greutate: | 0.995 kg |
| EAN: | 4719331859626 |
| Processor socket: | LGA 1700 |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | Intel |
| Compatible processor series: | Intel Pentium Gold G7400T, Intel Xeon E-2400, Intel Pentium Gold G7400 |
| Supported processor sockets: | LGA 1700 |
| Parallel processing technology support: | Not supported |
| Product colour: | Blue |
| Motherboard chipset: | Intel C262 |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Component for: | Server/workstation |
| Supported memory clock speeds: | 3600, 4400, 4000 |
| Supported memory types: | DDR5 UDIMM |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Width: | 244 mm |
| Depth: | 244 mm |
| Wi-Fi: | No |
| Ethernet interface type: | 1 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of SATA connectors: | 8 |
| Number of chassis fan connectors: | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| 12V power connector: | Yes |
| Package width: | 321 mm |
| Package depth: | 308,5 mm |
| Package height: | 78,5 mm |
| DFU / User manual: | Yes |
| Cables included: | 2 x SATA |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| Supported storage drive types: | HDD & SSD |
| Supported RAID configuration: | 0,1,5,10 |

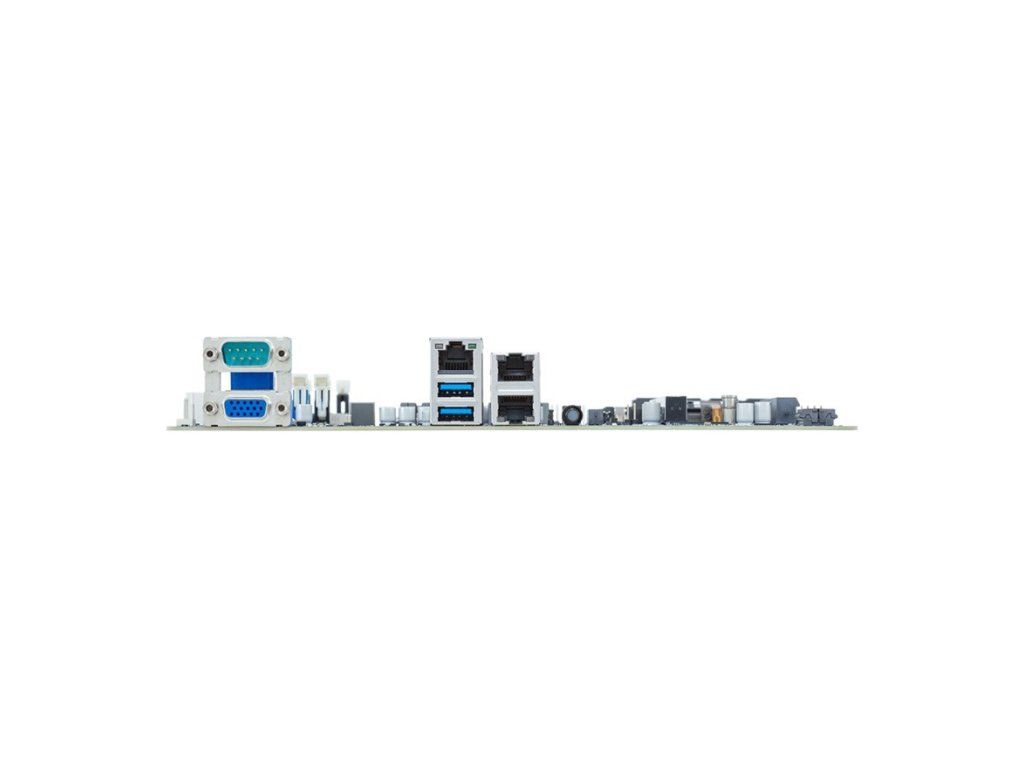

| Ethernet LAN (RJ-45) ports: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| COM ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| Port Management LAN: | Yes, 1 |
| PCI Express x8 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Warnings: | Do not disassemble to avoid damage to internal components and loss of warranty., The motherboard may contain electronic components hazardous to health - avoid direct contact., Do not open or disassemble the motherboard. |
