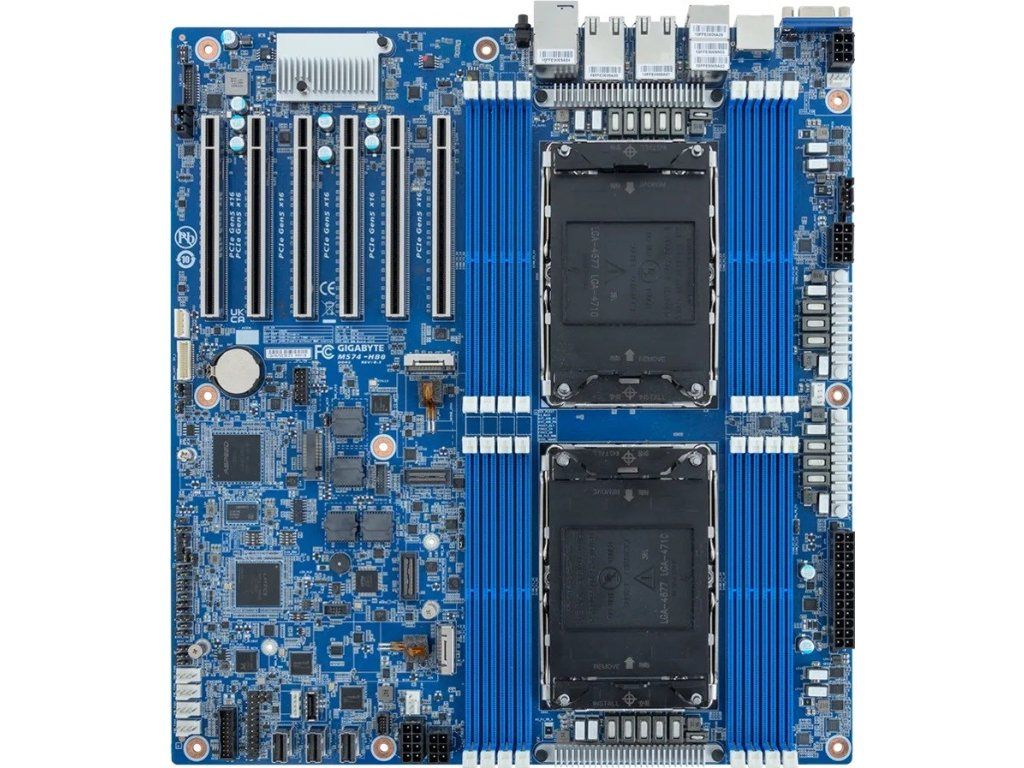

Motherboard - Gigabyte MS74-HB0 2x LGA4710 Intel Xeon 6 Intel Xeon serii 6500/6700 Intel SoC
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | INTEL server motherboards |
|---|---|
| Greutate: | 2.29 kg |
| EAN: | 4719331864439 |
| Number of processors supported: | 2 |
| Processor manufacturer: | Intel |
| Processor socket: | FCLGA 4710 |
| Compatible processor series: | Intel Xeon 6 |
| Parallel processing technology support: | Not supported |
| On-board graphics card model: | Aspeed AST2600 |
| Component for: | Server |
| Motherboard form factor: | Extended ATX |
| Motherboard chipset: | System on Chip |
| Compatible operating systems: | Windows Server, Red Hat Enterprise Linux server, SUSE Linux Enterprise server, Ubuntu, Citrix Hypervisor, XenServer, VMware ESXi |
| Number of DIMM slots: | 16 |
| Supported memory types: | DDR5 RDIMM/MRDIMM |
| Memory channels: | Octa-channel |
| Supported memory clock speeds: | 8000 MHz, 6400 MHz |
| Maximum internal memory: | 2 TB |
| Storage temperature (T-T): | -40 - 60 °C |
| Operating relative humidity (H-H): | 8 - 80% |
| Storage relative humidity (H-H): | 20 - 95% |
| Operating temperature (T-T): | 10 - 40 °C |
| Width: | 305 mm |
| Depth: | 330 mm |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| Number of SATA III connectors: | 12 |
| ATX Power connector (24-pin): | Yes |
| Supported storage drive interfaces: | PCI Express, SATA III |
| COM ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| VGA (D-Sub) ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 4 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 slots: | 6 |
